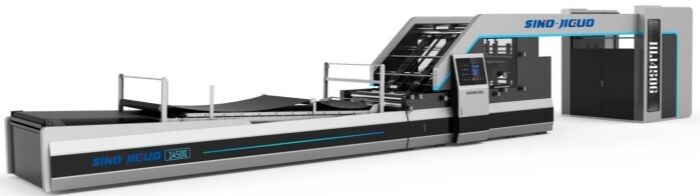

5-Ply High Speed Corrugated Flute Laminator Machine

Intelligence full servo three in one high speed laminating machine.This machine is able to complete the laminate process of three pieces paper in one time,three channels full servo control,high laminate precision,suitable for wide areas.Automatically one key change order after input paper size,can achieve multiple and diversified paper laminate.

Automatic high speed paper-making process as the basis of the products,my company is more strict,more professional.As the main power of the machine,our company adopts the "SIE"motor as the main motor,and its running parameters are all high-end products in the industry;The key parts of the bearings use "NSK"to account for more than 90 %of the entire machine:the entire machine electrical device adopts PANA PLC program control: frequency conversion speed adjustment,and the photoelectric use of "Omron"; The button uses "Schneider"and so on.The bottom paper adopts servo control, and the wide edge transmits the belttransmission,which effectively ensures the accurate delivery and accurate alignment of the bottom paper.As a running transmission mode,our company adopts synchronous belt drive,synchronous belt with the well-known brand "Gates"as the first choice, small noise,accurate transmission,and smooth operation.Glue coating device(coating roller)adopts high precision anilox roller, which provides more powerful guarantee for the control of glue coating and avoiding the waste of glue.The transmission paper part uses a PU circular band and a lower fan combination to ensure that the paper is running.Both sides of the servo Feeder for the corresponding position compensation.The main wall plate is processed by the processing center,thus effectively avoiding the machine coordination error caused by the processing.The protective cover is processed for the digital control center,and the appearance is more beautiful and the structure is more reasonable.The external method is electrostatic spraying and the atmosphere is solemn.

Adopt Japanese imported unique design feeding head,strong vacuum suction,smooth paper transmission,stable and accurate.According to the needs of the products,the speed of push paper can be arbitrarily adjusted,the accumulation and transmission of paper can be leveled and stabilized,and the height of paper accumulation can be controlled by photoelectricity.Stable paper stacking,smooth conveying.

Double -layer suction paper feeding mechanism:

Imported punch belt suction paper delivery mechanism,strong suction, smooth transmission of paper.Suitable for paper 300g/m²above card and A,B, C,E,F,N,as well as three,five,layers of cardboard,high-speed transmission paper smooth and accurate,It can realize multi-layer multiplex composite laminating paper.

For example:Cardboard+flute paper+flute paper,Cardboard+Cardboard+Cardboard, Cardboard+flute pape,Cardboard+Cardboard,flute paper+flute paper

Leading edge feeding is mechanism:(Optional function)

Gluing device,using glue shaft and stainless steel reticulated shaft matching.

The fitting of tile paper and surface paper adopts photoelectric detection, detects the relative position of the paper, calculates the error,and the motion controller controls the servo motor to correct the deviation.The performance is stable, the servo tracking, the paper framing accuracy is high,and the real intelligent bias correction is realized

Transmission Unit

The machine adopts imported synchronous belt drive to ensure transmission accuracy,stable and low noise.

Servo Department

Sensing compensation alignment device,use multiple sets of electric eyes to perceive the relative position of the base paper forward,use the servo motor on both sides of the face paper to independently drive compensation,the upper and lower paper alignment,accurate and smooth.

The surface paper adopts a self-developed motion bias correction device, servo automatic positioning,which improves the stability of the surface paper and the accuracy of the frame. Even if the error of the left and right of the surface paper is within 20mm, it can be ensured that the left and right error of the surface paper is within0.5mm through this device, which improves work efficiency.

The entire machine electrical adopts PLC program control,,PANA frequency conversion speed adjustment,and various electrical components detection switches adopt Japanese,Germany,Taiwan and other companies famous brands.The operation control is accurate,the performance is stable,and the safety is ensured.

Automatically stack the pasted paper according to the set number.
