Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed

Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed
Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed

Large Image :  Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1700H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed

Description
Max. Sheet Size: 1650mm*1650mm Min. Sheet Size: 400*360mm
Top Paper Thickness: 120-600 G/m2 Bottom Sheet Thickness: 0.5-10mm(B,A,AB,E,G Flute, Etc.)Cardboard To Cardboard, Bottom Cardboard ≥ 250g.
Laminating Accuracy: ±1.5mm Max. Speed: 18000pcs/h 150m/min
Power: 25kw Weight: 8 Tons
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Condition: New
High Light:

Bottom cardboard Automatic Laminating Machine

,

18000 pcs/h Automatic Laminating Machine

,

360mm corrugated box lamination machine

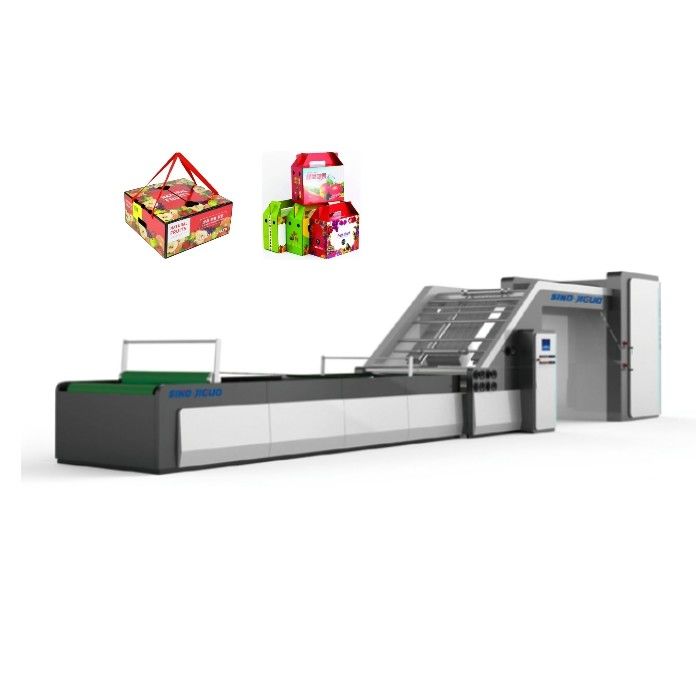

FMZ-1700H High Speed Automatic Laminating Machine For Corrugated Boxes



Max.speed: 12000sheet/hour


The production line consists of laminating machine and automatic stacking machine. High speed laminator for stickers and corrugated board. The motion control system is perfectly combined with the servo correction system. Using multiple sets of photoelectric sensors to sense the relative position of the paper, the servo motors on both sides of the paper are controlled to compensate independently, and the position of the bottom paper is tracked by the paper, so that the paper and the bottom paper are accurately positioned. The machine is easy to operate, just enter the paper size, and the machine will automatically adjust the automatic flipping machine to complete the stacking of paper, saving manpower and space, and solving the problem of bending and deformation after stickers.

Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 0





Specifications

PARAMETER
Model FMZ-1700H
Max. Sheet Size
1650mm*1650mm
Min. Sheet Size 400mm*360mm
Top paper thickness
120~600g/m ㎡
Bottom sheet thickness

0.5-10mm(B,A,AB,E,G flute, etc.)Cardboard
to cardboard, Bottom cardboard ≥ 250g.

Laminating Accuracy ±1.5mm
Max. Speed 18000p/h 150m/min
Power
25kw
Height of Bottom Paper 400mm
Height of Top Paper 1800mm
Weight 8Tons
Machine Dimension 14735*2750*2571mm



Detail images



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 1 Bottom Paper Eeding:
using imported servo motor electronic control system, Japan NITTA suction belt, suction frequency conversion, water roller cleaning belt, patented technology to ensure smooth corrugated and cardboard paper output, easy to operate.



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 2

Top Feeder Part

4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 3

Lectrical System:
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 4

Pre-stack Part:
Pre-stack the paper stack without downtime to improve efficiency. Specially designed pre-stacked paper holder saves time and effort.



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 5

Transmission:
With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 6

Positioning System:
Using multiple sets of photoelectric sensors for the relative position of the bottom paper, it controls the feeding servo motors on both sides to perform independent compensation actions, so that the top paper and the bottom paper can be accurately positioned.



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 7

Glue Roller:
Stainless steel roller,never rust, after narrowly grinding, guaranteed the minimum amountglue coated evenly. Down roller be cleaned by water roller.



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 8

Leading Edge Feeding System(Option)
This system is for option,more suitable for large size and thick bottom sheets.



Application

Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 9



Bottom Cardboard Automatic Laminating Machine Corrugated Box High Speed 10



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
