Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

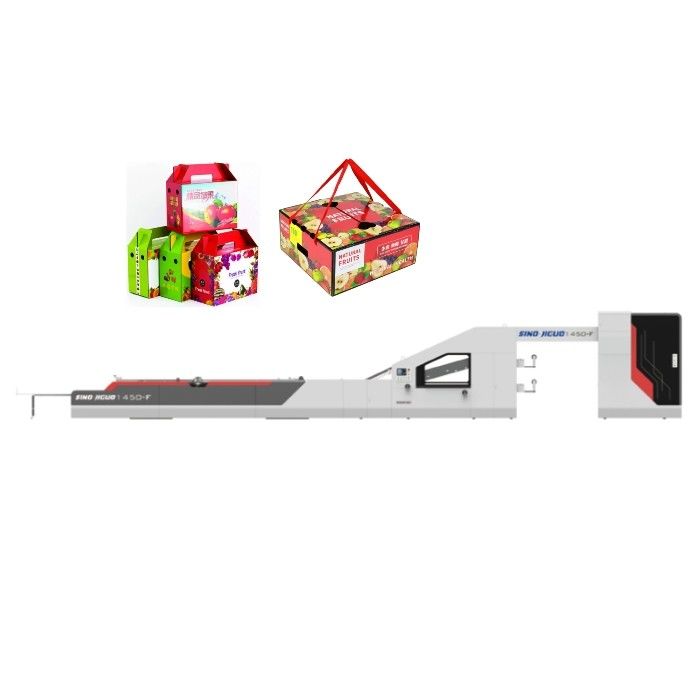

Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making

Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making
Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making

Large Image :  Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1450F
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD200000-800000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making

Description
Max. Paper Size: 1450x1300mm Min. Paper Size: 600x600mm
Face Paper Thickness: 180-600gsm Bottom Paper: A/B/C/E/F ≤ 10mm
Max. Speed: 6000pcs/h Power: 22kw
Automatic Grade: Automatic Usage: Paper Board Laminating
Advantage: Easy Control Warranty Of Core Components: 1 Year
Condition: New
High Light:

Paper Flute Laminator Machine

,

Corrugated Flute Laminator Machine

,

5 Ply automatic flute laminating machine

FMZ-1450F 5 Ply Automatic Paper Plates Making Corrugated Flute Laminating Machine



Automatic Flute Laminator Features



Fully Automatic 3-in-1 Laminating Machine is capable of laminating two sheets of corrugated cardboard and any type of face paper or three cardboards together Feeders are designed to make sturdy 5-layer boards One top feeder for printing cardboard or paper Two basin feeders for different combinations of corrugated boards such as A+A_A+B₁A+E_E+B_E+E_B + B or simply laminated top layer paper and one bottom corrugated board In addition, two bottom corrugated boards will be laminated to 4 ply corrugated board. Multi-purpose machine, efficient, money-saving and labor-saving.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 0





Specifications

PARAMETER
Model FMZ-1450F
Max. paper size 1450mm*1300mm
Min. paper size 600mm*600mm
Face paper thickness
180~600g/m ㎡
Bottom paper

A/B/C/E/F ≤ 10mm

Precision ±1.5mm
Max. Speed 6000pcs/h
Height of face paper pile 1600mm
Face paper table capacity 1500Kg
Height of bottom 2ply pile 400mm
Total power 22kw
Machine weight 5500kg
Machine Dimension 15000x2400x2500mm



Detail images

Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 1 1.Surface Paper Feeding Part
The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 2

2.Surface Paper Conveying Part

The unique structural design of the curved paper conveying parts, using a new soft material PU wear-resistant rubber sun protection wheel matching paper strip, which makes the paper stabilizes and smooth. Wear is caused on the print surface of the paper. It is very suitable for paper from different thicknesses.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 3 3.Alignment System of Surface Paper
The specially designed synchronous paper pusher ensures that the top paper and the bottom paper enter the pasting part at the same time. It can be fine-tuned during work.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 4 4.Bottom Paper Feeding Part
Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven layers.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 5 5.Bottom Paper Conveying Part
The specially designed synchronous paper pusher ensures the stable and accurate conveying of cardboard above 300g/m2 and A, B, C, E, F and three- and five-layer corrugated cardboard.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 6 6.Driving System
Imported wear-resistant synchronous belt, pulley with pusher, adjustment system and alignment mechanism ensure a paste tolerance of ±1.5mm and reduce tearing.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 7 7.Adjustment System
Fine regulator completely manufactured in Japan is adopted, which actualizes the adjustment of pasting tolerance during the course of working with high speed, thus improving the working efficiency.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 8 8.Electrical Control Part
All the electrical power adopted the worl drenowned brands, steady and dureable, frequency speed govering, lower noise and energy conservation.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 9 9.Glue suppling and Gumming System
The automatic gluing system is detected by the electric fluid controller, and the gluing is automatically added during the pasting process. The glue thickness can be adjusted according to the paper. The glue recycling system avoids the waste of glue and swing glue, ensuring accurate and neat fit. The unique anilox roller applies glue evenly, even for cardboard and corrugated paper.



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 10

Flute lamiantor top cardboard that popular use the offset printed cardboard , after laminator with two ply corrugated board and 4 ply corrugated board ,that will be make below picture box



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 11



Corrugated Automatic Flute Laminator Machine 5 Ply Paper Plates Making 12

FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
