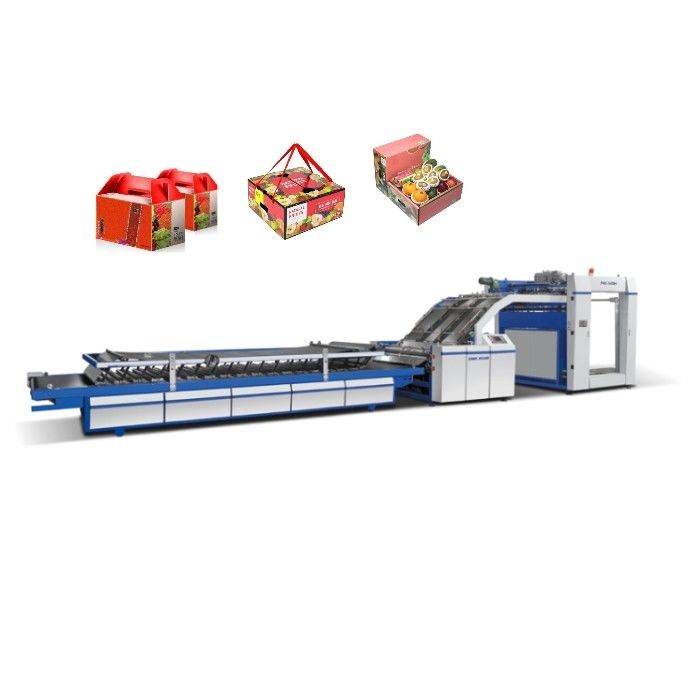

Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator

Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator
Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator

Large Image :  Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1900
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator

Description
Max. Size Of Cover Face: 1900*1250mm Min. Size Of Cover Face: 400*400mm
Top Paper Thickness: 200-600 G/m2 Bottom Sheet Thickness: 2/3/4/5/7 Ply A/B/C/E/F Flute, Thickness ≤ 10mm
Max. Machine Speed: 6000pcs/h 125m/min Power: 12kw
Precision: ±1.5mm Size: 3500*2550*2700mm
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Advantage: Easy Control
Warranty Of Core Components: 1 Year Condition: New
High Light:

Automatic Flute Laminator Machine

,

Corrugated Cardboard Flute Laminator Machine

,

5 ply flute laminator

FMZ-1900 Automatic Corrugated Cardboard Laminating Machine Flute Laminator



Uses:



This automatic paper machine is used for the paper of color printing paper and corrugated paper. The paper uses a scale of continuous paper, unique pre-regulation, ensuring that the bottom paper does not exceed the operation and maintenance.



The feature:



1. The advanced automatic tracking technology automatically adjusts the relevant parameters according to the size of the paper, so that the machine is always in the best running state.



2. Unique pre-set positioning system, the precision and bottom paper never exceed; the top paper is beyond adjustable.



3. Equipped with a high-precision high-speed automatic paper feeder strengthening paper feeder, which is smooth.



4. Using the principle of the offset of the offset, the upper and lower paper stack error correction and typesetting process



5. (Optional) Bottom paper uses a suction automatic paper, and can adjust the air volume on the touch screen and equipped with belt

humidification.



6. The spare stacking station can be piled with the paper in the case of non-stop, and the elevator work efficiency is high.



7. Imported electrical components to ensure the stability of the circuit system: PLC tracking technology fault automatic alarm.



8. fully automatic hydrating system, automatically supplement the lost glue, and recycle glue.



9. Separate water tank control cycle, ensuring that the bottom paper is used to clean the roller gel tank and the back tank



10. Single side regulating the roller pressure, and equipped with thousands of tables, the replacement of the bottom paper one-mstep-to-reach.

Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator 0



Specifications

PARAMETER
Model FMZ-1900
Max. size of cover face
1900*1250mm
Min. size of cover face 400*400mm
Top paper thickness
200-600 g/m2
Bottom sheet thickness

2/3/4/5/7 ply A/B/C/E/F Flute,
Thickness ≤ 10mm

Max. Machine speed 6000pcs/h 125m/min
Precision ±1.5mm
Power
12kw
Size
13500*2550*2700mm
Weight 6.5Tons



Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator 1



Application

Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator 2





Automatic Flute Laminator Machine Corrugated Cardboard 5 Ply Flute Laminator 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
