Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

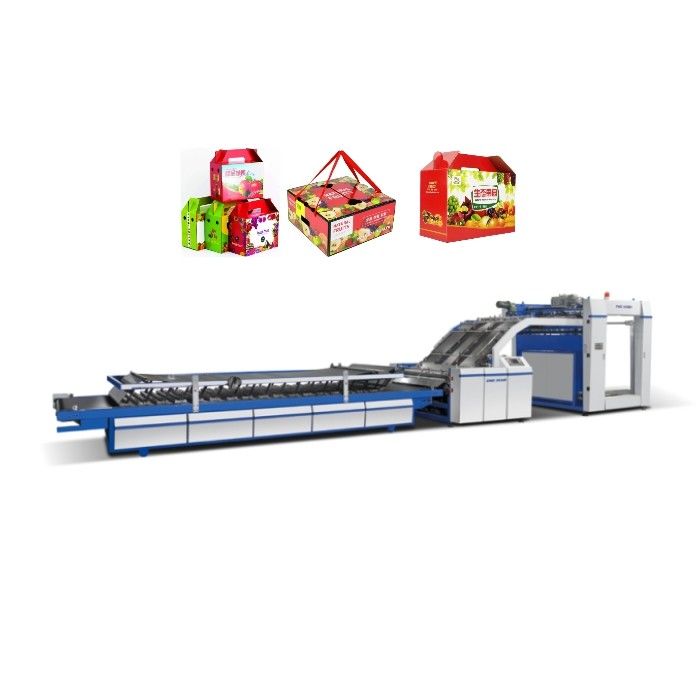

Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine

Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine
Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine

Large Image :  Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1700
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine

Description
Max. Size Of Cover Face: 1650*1650mm Min. Size Of Cover Face: 400*400mm
Top Paper Thickness: 180-600 G/m2 Bottom Sheet Thickness: 2/3/4/5/7 Ply A/B/C/E/F Flute, Thickness ≤ 8mm
Precision: ±1mm Power: 16kw
Size: 15620*2610*2680mm Max. Machine Speed: 7500pcs/h 164m/min
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Condition: New
High Light:

Corrugated High Speed Flute Laminator

,

Automatic High Speed Flute Laminator

,

400mm paper plate lamination machine

FMZ-1700 Automatic Corrugated Paper Laminating Machine Flute Laminator Machine



Features Of Corrugated Cardboard Laminating machine:



1. Vacuum adsorption paper feeding system, which can accurately feed the paper into the machine's circulating stacking plane, and can stack the next batch of paper without stopping the machine Higher work efficiency .



2. The bottom paper is automatically fed by suction, and automatically tracks according to the speed of the top paper.



3. The new concept is pre-positioned, with high positioning accuracy, and the bottom paper never trails.



4. The machine adopts touch screen/PLC/servo motor control The system circuit system is stable, and the fault alarm is automatically displayed.



5.  Automatic gluing, glue recycling, avoid glue waste.



6. The roller is scientifically designed to avoid the glue flying out at high speed.



7. The pressure roller adopts one side adjustment, which is convenient and quick.



8. The rocker controls the fluctuation of the washing roller, which is convenient for cleaning.



9. The counter design is scientific, and the workload is easily recorded.





Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine 0



Specifications

PARAMETER
Model FMZ-1700
Max. size of cover face
1650*1650mm
Min. size of cover face 400*400mm
Top paper thickness
180-600 g/m2
Bottom sheet thickness

2/3/4/5/7 ply A/B/C/E/F Flute,
Thickness ≤ 8mm

Max. Machine speed 7500pcs/h 164m/min
Precision ±1mm
Power
16kw
Size
15620*2610*2680mm
Weight 6.2 Tons



Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine 1



Application

Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine 2



Corrugated High Speed Flute Laminator Automatic Paper Plate Lamination Machine 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
