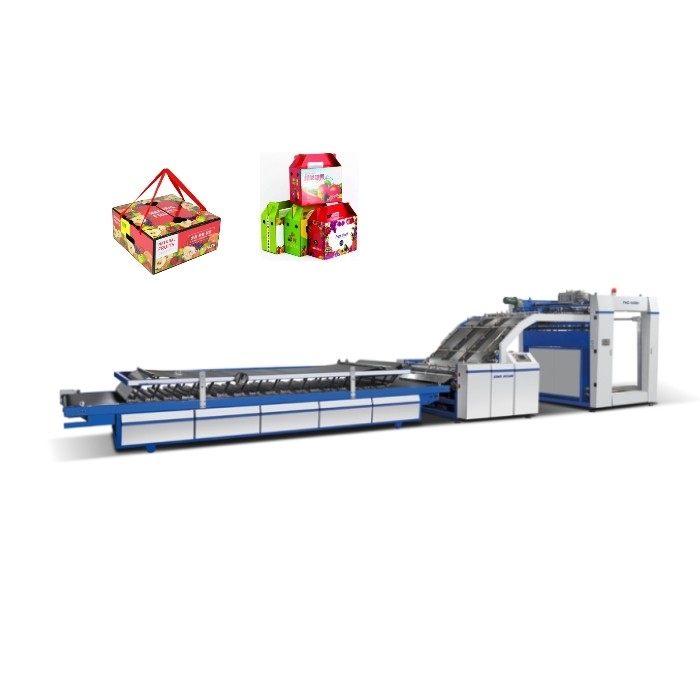

Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H

Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H
Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H

Large Image :  Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1450
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD60000-120000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H

Description
Max. Size Of Cover Face: 1450*1400mm Min. Size Of Cover Face: 400*400mm
Max. Machine Speed: 8000pcs/h 164m/min Precision: ±1mm
Power: 15kw Weight: 5.8 Tons
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Advantage: Easy Control
Warranty Of Core Components: 1 Year Condition: New
High Light:

Corrugated Box Flute Laminator Machine

,

1450x1400mm Flute Laminator Machine

,

8000pcs/h Automatic Laminating Machine

FMZ-1450 Corrugated Box Corrugated Automatic Laminating Machine



Performance And Characteristics:



1. Automatic paper loading and unloading.



2. Integrated control with PLC, which can provide simple operation and troubleshooting in the production process. User safety is considered and widely used in machine design.



3. The key functional parts of the machine use bearings and electrical components of internationally renowned brands.



4. The elastic front cover is positioned, the bottom sheet does not exceed the top sheet, and the front and rear distance between the top sheet and the bottom sheet is adjustable.



5. It is suitable for the lamination of the bottom board and the top board above 300g/m2. Laminated cardboard and laminated corrugate cardboard with A/B/C/D/E/F corrugated corrugated cardboard.



Optional high-speed model, main features:



1. Intelligent transmission structure, the maximum speed can reach 150m/min, and the paper feeding efficiency can reach 18,000 sheets/hour.



2. The main body is strengthened, suitable for high-speed operation. machine .



3. According to the usage habits, the details of each part are carefully optimized to ensure the safety and ease of use.



Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H 0



Specifications

PARAMETER
Model FMZ-1450
Max. size of cover face
1450*1400mm
Min. size of cover face 400*400mm
Top paper thickness
180-600 g/m2
Bottom sheet thickness

2/3/4/5/7 ply A/B/C/E/F Flute,
Thickness ≤ 8mm

Max. Machine speed 8000pcs/h 164m/min
Precision ±1mm
Power
15kw
Size
14100*2410*2680mm
Weight 5.8 Tons



Application



Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H 1



Corrugated Box Automatic Flute Laminator Machine 1450x1400mm 8000pcs/H 2



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
