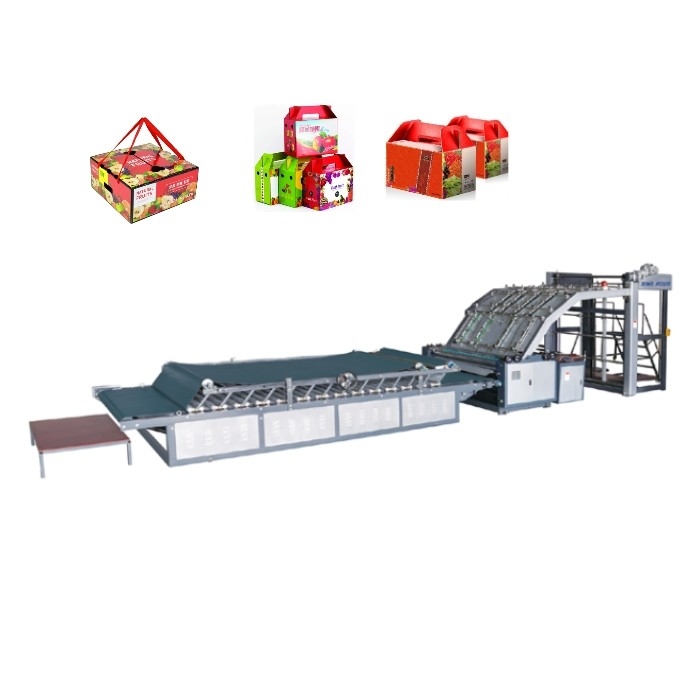

Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine

Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine
Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine

Large Image :  Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1650A-II
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-10000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine

Description
Max. Sheet Size Of Laminating: 1600×1250mm Min. Sheet Size Of Laminating: 360mm×360mm
Top Paper Thickness: 140-800g Working Speed: 0-100 Plece /min
Power: 7.5KW Weight: 4.2 Tons
Packaging Material: Metal, Paper, Plastic Automatic Grade: Semi-automatic
Condition: New Warranty: 1 Year
Size: 10m×2.3m×2.2m Type: Laminating Machine, Corrugated Paperboard Carton Box Flute Laminating Machine
Core Components: Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear Packaging Type: Film, Hot Sell Semi Automatic Corrugated Flute Laminator
High Light:

1600×1250mm semi automatic flute laminator

,

Paperboard semi automatic flute laminator

,

360mm Box Laminating Machine

JIGUO FMZ-1650A-II Semi Automatic Corrugated Flute Laminator/Carton Box Laminating Machine For Paperboard



Product Description



The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking. The automatic replenishment system of glue can be added. automatically during glue losses, and recycling with the glue to avoid loss of waste. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed., Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating.

Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 0





Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 1



Adopt PLC & Taiwan servo motor control system, working is more precision and stable, improved the speed, circuit faults can automatically alarm. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.



Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 2



Entire new concept,front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick. Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.



Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 3



Specifications

PARAMETER
Model FMZ-1650A-II
Max. Sheet size of laminating 1600×1250mm
Min. Sheet size of laminating 360mm×360mm
Top paper thickness 140-800g
Bottom sheet thickness

2/4 ply A/B/C/E/F Flute

Working speed 0-100 Plece /min
Laminating precision ±1mm
Power 7.5KW
Weight 4.2 Tons
Size 10×2.3×2.2m



Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 4





Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 5



Paperboard Semi Automatic Flute Laminator Carton Box Laminating Machine 6



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
