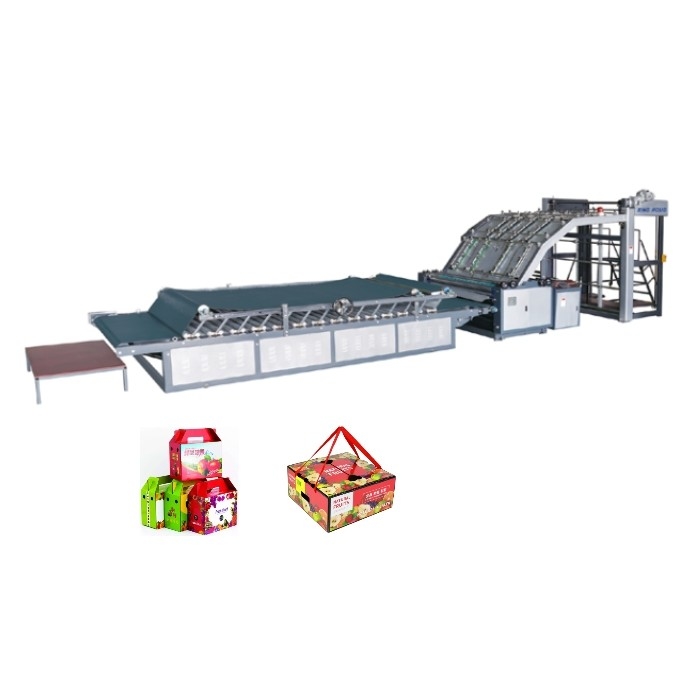

Cardboard Flute Manual Laminating Machine Feeding Servo Automatic

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Cardboard Flute Manual Laminating Machine Feeding Servo Automatic

Cardboard Flute Manual Laminating Machine Feeding Servo Automatic
Cardboard Flute Manual Laminating Machine Feeding Servo Automatic Cardboard Flute Manual Laminating Machine Feeding Servo Automatic Cardboard Flute Manual Laminating Machine Feeding Servo Automatic Cardboard Flute Manual Laminating Machine Feeding Servo Automatic

Large Image :  Cardboard Flute Manual Laminating Machine Feeding Servo Automatic

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1550A-II
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-10000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Cardboard Flute Manual Laminating Machine Feeding Servo Automatic

Description
Max. Sheet Size Of Laminating: 1500×1250mm Min. Sheet Size Of Laminating: 360mm×360mm
Top Paper Thickness: 140-800g Bottom Sheet Thickness: 2/4 Ply A/B/C/E/F Flute
Working Speed: 0-100 Plece /min Laminating Precision: ±1mm
Power: 7.5KW Weight: 4.1 Tons
Packaging Material: Metal, Paper, Plastic Automatic Grade: Semi-automatic
Condition: New Warranty: 1 Year
Size: 10m×2.2m×2.2m Type: Laminating Machine
Highlight:

Cardboard manual laminating machine

,

1500×1250mm manual laminating machine

,

feeding servo automatic flute laminating machine

JIGUO FMZ-1550A-II Automatic Manual Flute Laminator For Cardboard Paper



Product Description


vacuum sucking feeding servo semi-automatic flute laminator/Semi-automatic flute laminator with auto lifter


Main features:



1. The highest paper can increase the height of 150 meters over a period of time, making delivery easier and more effective.



2. Use suction automatic bottom paper, according to the machine running speed, continuous automatic tracking.



3. The new concept of the project, the pre-standard registration, the high positioning accuracy, the bottom board will never exceed the standard.



4.The machine adopts the touch screen PLC control system and the circuit system is stable, which can automatically display fault alarm.



5. Automatic filling system of glue when glue loss is added, recycle with glue and avoid waste.



6. The scientific design of measuring roll speed, ensure that the glue is uniform and uniform, and avoid the rejection of glue at high speed.



7. Work with a floating stamping machine to ensure that the laminated paper is not crushed and that the cardboard is smooth and smooth.By adjusting worm roll pressure, one - way adjustment is fast.



8. Adopt independent method, clean and hard rubber product control tank cleaning cycle.



Cardboard Flute Manual Laminating Machine Feeding Servo Automatic 0





Specifications

PARAMETER
Model FMZ-1550A-II
Max. Sheet size of laminating 1500×1250mm
Min. Sheet size of laminating 360mm×360mm
Top paper thickness 140-800g
Bottom sheet thickness

2/4 ply A/B/C/E/F Flute

Working speed 0-100 Plece /min
Laminating precision ±1mm
Power 7.5KW
Weight 4.1 Tons
Size 10×2.2×2.2m



Cardboard Flute Manual Laminating Machine Feeding Servo Automatic 1





Cardboard Flute Manual Laminating Machine Feeding Servo Automatic 2



Cardboard Flute Manual Laminating Machine Feeding Servo Automatic 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
