Home ProductsFlute Laminator Machine

Corrugated Box Semi Auto Flute Laminator High Speed Board

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Corrugated Box Semi Auto Flute Laminator High Speed Board

Corrugated Box Semi Auto Flute Laminator High Speed Board
Corrugated Box Semi Auto Flute Laminator High Speed Board Corrugated Box Semi Auto Flute Laminator High Speed Board Corrugated Box Semi Auto Flute Laminator High Speed Board

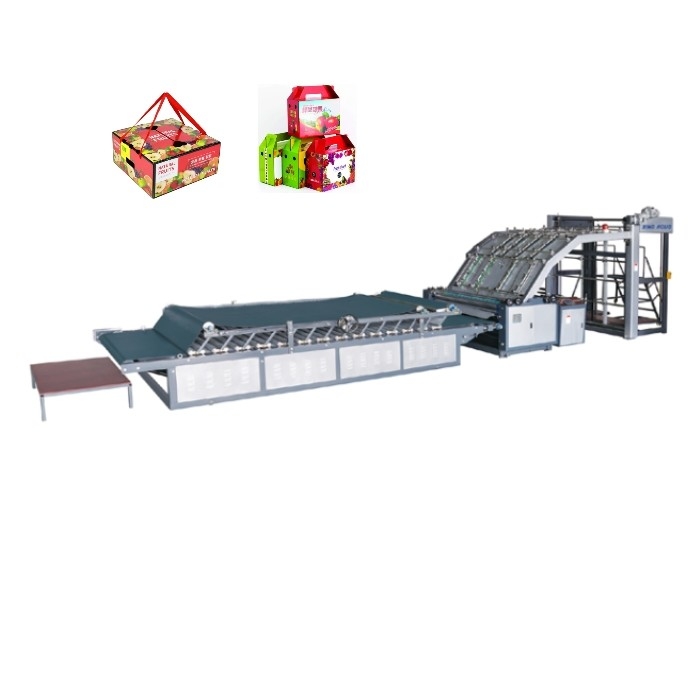

Large Image :  Corrugated Box Semi Auto Flute Laminator High Speed Board

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1550A-I
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD50000-100000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Corrugated Box Semi Auto Flute Laminator High Speed Board

Description
Max. Sheet Size Of Laminating: 1500×1250mm Min. Sheet Size Of Laminating: 360mm×360mm
Top Paper Thickness: 140-800g Laminating Precision: ±1mm
Power: 6.5KW Weight: 3.4 Tons
Size: 8.8×2.15×1.7m Packaging Material: Metal, Paper, Plastic
Automatic Grade: Semi-automatic Condition: New
Warranty: 1 Year Applicable Industries: Manufacturing Plant, Retail
High Light:

1500mm sheet semi auto flute laminator

,

Corrugated Box semi auto flute laminator

,

Board High Speed Flute Laminator

JIGUO FMZ-1550A-I Semi Automatic Corrugated Box Lamination Flute Laminating Machine For Corrugated Board



Product Description



The new type servo laminator machine adopt double frequency conversion at the front and back of the machine, automatic gluing,automatic washing gears, Photoelectric alignment, screw attached pressing, vacuum adsorption bottom paper, labour feeding paper, whole machine 8.8m, mainframe 3m, paper receiving platform1.2m, 28 pressure rollers, 6 positioning belt, 1 synchronous belt, 3 Synchronous wheel, 14 paper pressing wheel, transfer platform is Stainless steel double bridge stander, wheelbase adjustment bar adopts pressure bearing, worm wheel adjustment transmission shaft is double dis double bearing and balance processing, all the main equipment parts adopt famous manufacturer from domestic and foreign, long original product life long, good stability, and ensure the reliability of electrical components in the using process.





Corrugated Box Semi Auto Flute Laminator High Speed Board 0





Specifications

PARAMETER
Model FMZ-1550A-I
Max. Sheet size of laminating 1500×1250mm
Min. Sheet size of laminating 360mm×360mm
Top paper thickness 140-800g
Bottom sheet thickness

2/4 ply A/B/C/E/F Flute

Working speed 0-100 Plece /min
Laminating precision ±1mm
Power 6.5KW
Weight 3.4 Tons
Size 8.8×2.15×1.7m



Corrugated Box Semi Auto Flute Laminator High Speed Board 1



Corrugated Box Semi Auto Flute Laminator High Speed Board 2



Corrugated Box Semi Auto Flute Laminator High Speed Board 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
