450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard

450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard
450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard 450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard 450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard

Large Image :  450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1400C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard

Description
Max. Sheet Size(mm): 1410x1000mm Min. Sheet Size(mm): 450x450mm
Max. Machine Speed: 105pcs/min(Subject To Paper Quality) Laminating Precision: ±0.5mm(Standard Smooth Paperboard)
Total Weight: 7500kg Machine Dimension: 8900*2770*2180mm
Operation Space: 3000*1200mm Power Supplier: 220V/380V 3 ~ (15hp)
Advantage: Easy Control Warranty Of Core Components: 1 Year
Condition: New Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery Driven Type: Electric
High Light:

450x450mm Flute Laminator Machine

,

Corrugated Cardboard Flute Laminator Machine

,

Fully automatic flute laminator

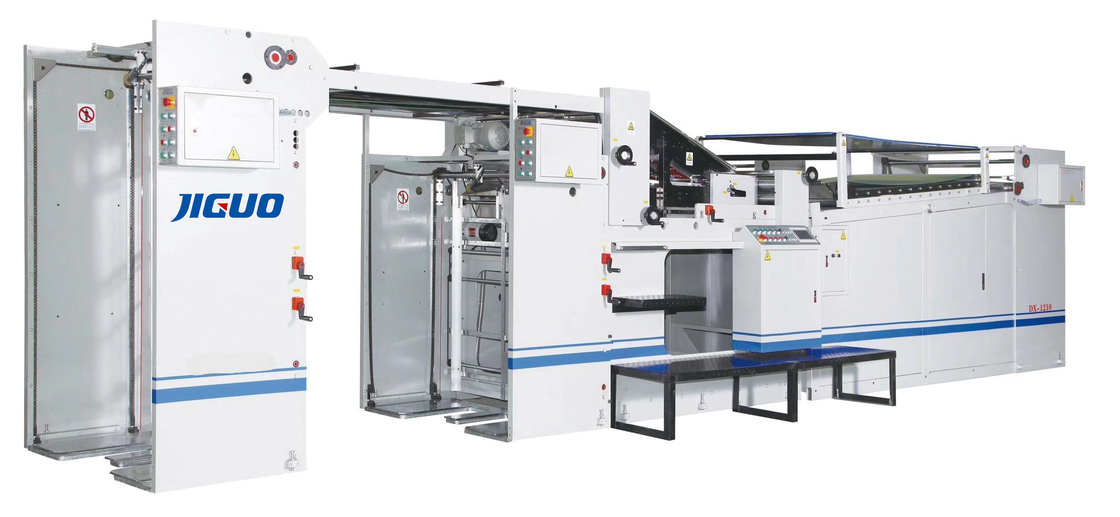

JIGUO FMZ-1400C Fully Automatic Flute Laminator Corrugated Cardboard Laminating Machine



Characteristics:



Lamination of two paperboards at precision of ±0.5mm, this equipment is capable to laminate and glue combination of thin paper, art paper, cardboard, gray cardboard or thick paper board together to increase the material strength and thickness, or being laminated to have special effect. After shearing or mold cutting, the laminated products can be made to be hang-tag, display card, packing box, material pad, hard cover book, photo album, sun shield or inner lining of piece goods, product demonstration book, puzzle, toys, handbag or decoration materials.



450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard 0





Specifications

PARAMETER
Model FMZ-1400C
Max. Sheet Size(mm) 1410*1000mm
Min. Sheet Size(mm) 450*450mm
Thickness of Upper Paper
100-800g/ ㎡
Thickness of Bottom Paper

180-1800g/ ㎡

Max. Machine Speed 150pcs/min(Subject to Paper Quality)
Laminating Precision ±0.5mm(Standard smooth paperboard)
Total Weight 7500kg
Machine Dimension 8900*2770*2180mm
Operation Space 3000*1200mm
Power Supplier 220V/380V 3 ~ (15hp)



Products Description

450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard 1



450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard 2



450x450mm Sheet Flute Laminator Machine Fully Automatic Corrugated Cardboard 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
