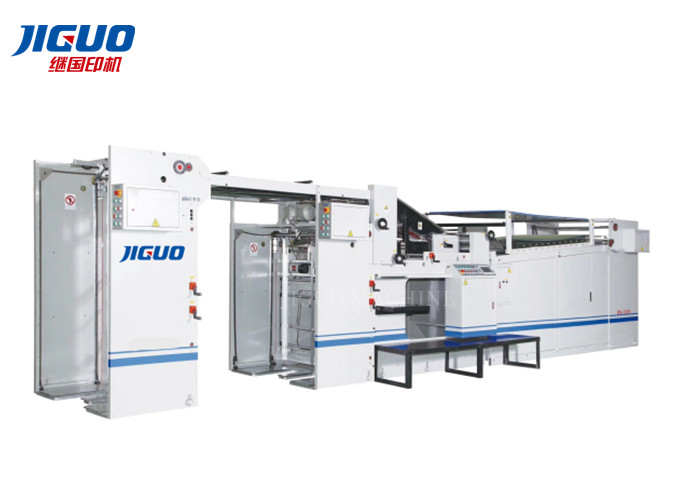

Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper

Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper
Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper

Large Image :  Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1200A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper

Description
Max. Sheet Size(mm): 1200x720mm Min. Sheet Size(mm): 450x450mm
Thickness Of Upper Paper: 100-800g/ ㎡ Thickness Of Bottom Paper: 180-1800g/ ㎡
Automatic Grade: Automatic Usage: Paper Board Laminating
Advantage: Easy Control Warranty Of Core Components: 1 Year
Condition: New Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery Driven Type: Electric
High Light:

1200mm Flute Laminator Machine

,

720mm Flute Laminator Machine

,

Cardboard automatic flute laminating machine

JIGUO FMZ-1200A Automatic Cardboard Flute Laminator Machine Flute Laminating Machine



Features



Unique Dynamic Aligning System(Synchronized Laminating Mechanism):

The speed difference between faster paper delivering and front stopper moving advances the paper to reach the front stopper, and paper sides are aligned synchronously with side stoppers to ensure upper and lower paper being aligned and laminated perfectly.Transmission System: The planet-type system allows smooth and even distribution in power transmission by a complete set of timer belts. Free maintenance, low noise and high efficiency.


• Low E-type Paper Holder Plate:

Convenient for quick paper replenishment by pushing pallet trolley directly to the holder plate, or rail track is also available. Optimum E-type holder plate and high speed elevating mechanism shorten lead time of paper replenishment and increase efficiency.


• Newly Developed Front-top Suction Feeder:

No need for adjustment during paper-size change that fresh operator can run the machine without intensive training. No suction mechanism above paper stacker offers more Spacious operation room.


• Vibra-loose Collecting Mechanism:

Capable of loosening mullet-laid laminated sheets and pushing neatly to ensure smooth collection of paper. E-type holder plate and high speed elevator jointly pull out laminated sheets rapidly and conveniently, which greatly incease the working efficiency.Motorized calibration of running speed and pressing paper Length allows easy change-over of different paper sizes. Laminated sheets can be overlapped together or pressed individually. The newly added extra roller set can apply repeated heavy pressure on thinner finished sheets for the second time to ensure smooth and exquisite lamination.


• Three sets of HMI system:

Man-machine Interface, Voice Alarm and Lamp Indicating PLC. Automatically detecting running condition, irregularities,maintenance and job record.Selected electronic elements perfect both operation and safety.


• Specially Designed High Precision Coating Mechanism:

The precision of gluing roller and glue adjusting roller can reach less than 0.01mm, and glue coating volume can be adjusted to as little as 0.02mm.Auto Glue Level Control: Accurately adjust coating volume required by different paper to ensure even gluing.Convenient Paper Separator: Separate the paper from the gluing roller quickly and easy for dismantling, cleaning and calibration of the gluing roller.


• Side Stopper of Gluing Roller:

Delicate side stopper can wipe the glue back to the roller to prevent roller ends at high speed from glue overflowing,and it can also adjust back flow of the glue to guarantee smooth running of gluing system.





Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper 0





Specifications

PARAMETER
Model FMZ-1200A
Max. Sheet Size(mm) 1200*720mm
Min. Sheet Size(mm) 450*450mm
Thickness of Upper Paper
100-800g/ ㎡
Thickness of Bottom Paper

180-1800g/ ㎡

Max. Machine Speed 150pcs/min(Subject to Paper Quality)
Laminating Precision ±0.5mm(Standard smooth paperboard)
Total Weight 7000kg
Machine Dimension 8900*2470*2180mm
Operation Space 3000*1200mm
Power Supplier 220V/380V 3 ~ (15hp)



Detail images

Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper 1



Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper 2



Sheet 1200x720mm Automatic Flute Laminator Machine Cardboard Paper 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
