1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

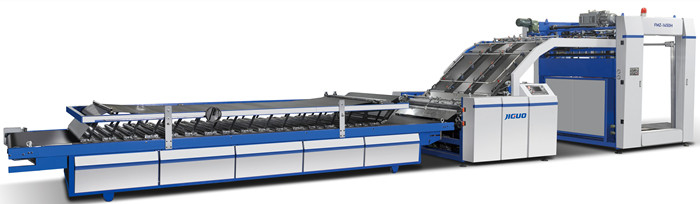

1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute

1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute
1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute

Large Image :  1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1900
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute

Description
Max. Size Of Cover Face: 1900*1250mm Min. Size Of Cover Face: 400*400mm
Top Paper Thickness: 200-600 G/m2 Bottom Sheet Thickness: 2/3/4/5/7 Ply A/B/C/E/F Flute, Thickness ≤ 8mm
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Advantage: Easy Control
Warranty Of Core Components: 1 Year Condition: New
Max. Machine Speed: 6000pcs/h 125m/min Power: 12kw
High Light:

1900mm corrugated box lamination machine

,

7 ply corrugated box lamination machine

,

6000pcs/h Paperboard Flute Laminating Machine

JIGUO FMZ-1900 Automatic Corrugated Paperboard Flute Laminating Machine



Usage:



This Full Automatic Flute Laminating Machine is used for color top sheets and corrugated paper laminating, top paper adopt scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never exceed. Easy for operating and maintenance..



Features:



1. Advanced automatic tracking technology, according to the size of the paper automatically adjust the relevant mparameters, so that the machine is always running in the best condition.


2.  Unique front gauge positioning system, accuracy and the bottom paper never exceed; top paper exceed adjustable.


3. Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly.


4. Using the principle of offset printing machine side gauge positioning, error correction for about top paper stack and mfeeding process;


5. (For optional)Bottom paper using suction automatic feeding, can adjust wind strength in the touch screen, and is mequipped with a belt humidifying function.


6. Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency.


7. Imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault malarm.


8. Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated mwith the glue recycling.


9. Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller,glue receive mtank and back glue tank.


10. Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one-mstep-to-reach.



1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 0



Specifications

PARAMETER
Model FMZ-1900
Max. size of cover face
1900*1250mm
Min. size of cover face 400*400mm
Top paper thickness
200-600 g/m2
Bottom sheet thickness

2/3/4/5/7 ply A/B/C/E/F Flute,
Thickness ≤ 8mm

Max. Machine speed 6000pcs/h 125m/min
Precision ±1.5mm
Power
12kw
Size
13500*2550*2700mm
Weight 6.5Tons



1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 1



1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 2



1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 3



1900mm Corrugated Box Lamination Machine 5 Ply Paperboard Flute 4



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
