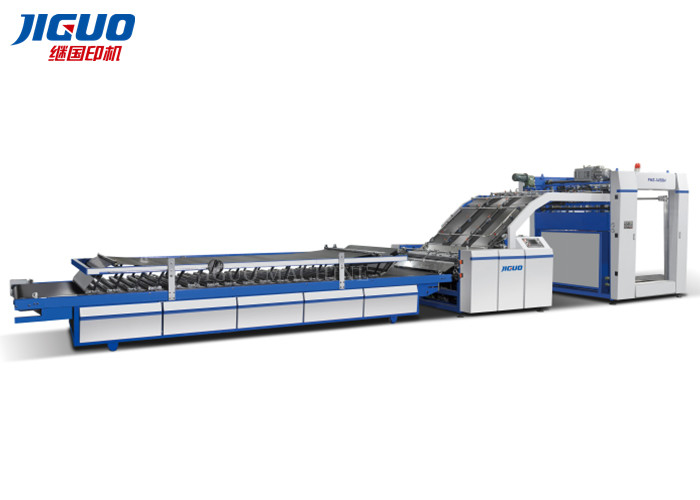

3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton

3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton
3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton 3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton 3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton

Large Image :  3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1450
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton

Description
Max. Size Of Cover Face: 1450*1400mm Min. Size Of Cover Face: 400*400mm
Top Paper Thickness: 180-600 G/m2 Bottom Sheet Thickness: 2/3/4/5/7 Ply A/B/C/E/F Flute, Thickness ≤ 8mm
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Advantage: Easy Control
Warranty Of Core Components: 1 Year Condition: New
High Light:

3 ply paper plate lamination machine

,

Automatic paper plate lamination machine

,

Corrugated carton laminating machine

JIGUO FMZ-1450 Corrugated Carton Cardboard Flute Laminating Automatic Machine



Performance And Charcteristics:



1. Automatic feeding for top sheet and bottom sheet.



2. Integrated control with PLC can provide easy operation & trouble shot during production. Safety for user is considered and widely used in the machine design.



3. Famous international brand of components like bearing, electrical parts are used in the critical functioning part of the machine.



4. Elastic front register positioning, the bottom sheet does not exceed the top one, the front-and- back distance between the top sheet and the bottom sheet can be adjusted.



5. suitable for laminating bottom cardboard more than 300g/m2 with top paperboard, laminating paperboard with A/B/C/E/F flute corrugated cardboard, and laminating corrugated board.

Optional High-speed models,the main features:



1. the inteligent transmission structure,maximum speed up to 150m/min,the feeding paper efficiency of up to 18000 sheets/hour.


2. strengthen the main body,suitable for high-speed operation of the machine.


3. carefully optimized to design in various parts of the details according to the use's application of customary to ensure the safety and ease of use.



3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton 0



Specifications

PARAMETER
Model FMZ-1450
Max. size of cover face
1450*1400mm
Min. size of cover face 400*400mm
Top paper thickness
180-600 g/m2
Bottom sheet thickness

2/3/4/5/7 ply A/B/C/E/F Flute,
Thickness ≤ 8mm

Max. Machine speed 8000pcs/h 164m/min
Precision ±1mm
Power
15kw
Size
14100*2410*2680mm
Weight 5.8 Tons



3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton 1



3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton 2



3 Ply Paper Plate Lamination Machine Automatic Corrugated Carton 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
