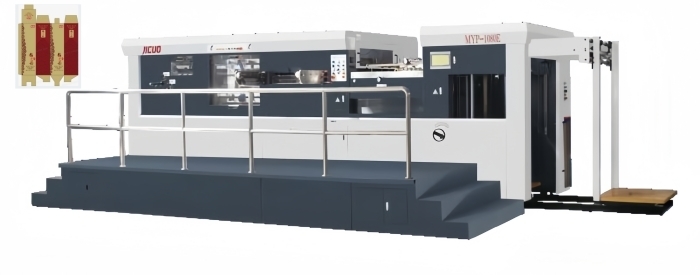

MYP-1080E Automatic Die Cutting Stripping Machine 7500s/h 18KW

Name: MYP-1080E Automatic Die Cutting Stripping Machine 7500s/h 18KW
Brand: Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. )
SKU: MYP-1080E
Price: 55,000.00 USD
Availability: InStock

Brand Name:	JIGUO
Model Number:	MYP-1080E
MOQ:	1 set
Price:	$110000 to $120000/1 Set
Delivery Time:	45days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Max. Cutting Speed:

7500s/h

Weight:

18.5T

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support

Type:

Die-cutting Machine

Computerized:

Yes

Application:

Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers

Power:

18KW

Overall Dimension:

7500X3950X2360mm

Name:

JIGUO

Machine Type:

Flat Die Cutting

Place Of Origin:

Hebei,China

Packaging Details:

Film winding

Supply Ability:

1~30SET

Highlight:

automatic die cutting stripping machine

die cutting machine for packaging boxes

MYP-1080E stripping machine

Product Description

MYP-1080E Automatic Die Cutting Stripping Machine for Packaging Boxes

Product Specifications

Max. Cutting Speed	7500s/h
Weight	18.5T
Warranty	1 Year
After-sales service	Engineers available to service machinery overseas, Video technical support
Type	Die-cutting Machine
Computerized	Yes
Application	Cigarette Boxes, Jigsaw Puzzle, Wine Boxes, Plastic Boxes, Hangtags, Paper Boxes, Corrugated Boxes, Adhesive Stickers
Power	18KW
Overall dimension	7500×3950×2360mm
Brand	JIGUO
Machine type	Flat die cutting
Place of Origin	Hebei, China

Product Overview

The Jiguo MYP-1080E is a high-speed, fully automatic die-cutting machine designed for precision cutting of various packaging materials. Its robust construction and advanced features make it ideal for mid- to high-end packaging companies.

Key Features

Ductile iron construction for stable performance under 250-300 tons of pressure
40Cr crankshaft tempered and ground for high hardness and precision
Copper alloy turbine and bearing housing for wear resistance
Imported high-quality bearings (NSK, SKF) for long life
Panasonic PLC and servo drive motor for precise control
Airtac pneumatic components for reliable operation
Pre-pressing device and platform fine-adjustment for efficiency
Servo motor drive system for smooth paper feeding
German-sourced feeder chain for high precision
Taiwanese intermittent gearbox for low noise operation
Color touch screen interface for intuitive operation

Technical Parameters

Model	MYP-1080E
Max. sheet size	1080×780(mm)
Min. sheet size	400×370(mm)
Max. die cutting size	1030×750(mm)
Max. cutting speed	7500s/h
Die cutting precision	±0.1mm
Sheet thickness	0.1~4mm
Max. pressure	320T
Total power	18kw
Net weight	18.5T
Overall dimension	7500×3950×2360mm
Air requirements	0.8Mpa, >0.36m³/min

Paper Feeding Unit

High-speed, non-stop paper feeding with nine suction nozzles
Five independently adjustable feed nozzles for parallel feeding
Lightweight aluminum alloy feeder with anodized surface
Adjustable suction pipe and head made of ultra-hard alloy
Horizontal paper separation fan for smooth operation

Die-cutting Unit

Automatic pressure regulation and front gauge adjustment
Taiwan oil pump for forced lubrication with oil cooler
Innovative transmission mechanism for high-speed die-cutting
Pneumatic clamping device for safer upper frame fixation

Paper Stripping Unit

Automated stripping improves production efficiency
Precise waste removal for complex patterns
Handles various materials including paper, cardboard, and film
Synchronized with die-cutting for continuous operation

Our Partners

Frequently Asked Questions

What is the brand name of this product?

The brand name is SING JIGUO.

What is the model number of this product?

The model number is MYP-1060H Automatic Die-Cutting & Stripping Machine.

Where is this product manufactured?

This product is manufactured in China.

Does this product have any certifications?

Yes, it is certified with CE.

What is the main function of this product?

This product is mainly used for automatic die-cutting and stripping.
