Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine

Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine
Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine

Large Image :  Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: MYP-800H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD50000-100000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine

Description
Condition: New Warranty: 1 Year
After-sales Service Provided: Overseas Service Center Available,Video Technical Support Voltage: 220V/380V
Computerized: Yes Name: Die Cutting Creasing Machine
Product Name: Automatic Die Cutting Machine Stripping Function: Cutting
High Light:

paper feeding Die Cutting Creasing Machine

,

8500s/h Die Cutting Creasing Machine

,

Flat Bed Die Cutting Machine

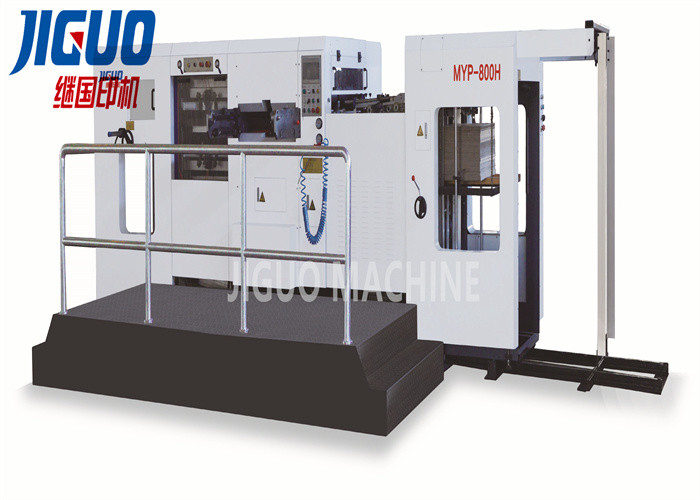

JIGUO MYP-800H Automatic Die Cutting Stripping Machine

MYP-800H Automatic Die Cutting Machine with Stripping is a special equipment developed by our company in combination with the superior performance of similar products at home and abroad, which is suitable for high-end color box and color box die-cutting.

Products Description​

PARAMETER
Model MYP-800H
Max. sheet size 810X610(mm)
Min. sheet size 320X240(mm)
Max. die cutting size 790X590(mm)
Max.cutting speed 8500s/h
Die cutting precision ±0.1mm
Max.pressure 250T
Total power 14.5kw
Net weight 12T
Overall dimension 6400X3400X2000mm
Air requirements 0.8Mpa,>0.36m³/min

1. Pre-loading paper mechanism, automatic fine-tuning function of paper table, non-stop cycle paper loading function (optional), saving paper changing time and improving work efficiency.

2. The paper feeding bridge is driven by an independent servo motor, which can realize continuous overlapping paper feeding and single paper feeding.

3. The front stop gauge and the side pull regulation position, and the pull gauge/push gauge are alternately used to meet different thicknesses of paper. There is no indentation or flattening during paper feeding, which improves the quality of the product. One-key conversion, easy to use.

4. Use high-precision parts. The core components are manually ground, with high precision, good lubrication effect and high pressure, which can meet the die cutting of dense grid patterns.


Feed Table
Adopt pull and push lay. It can meet different print registration and ensure accurate side positioning.
One key lifting button can easily adjust wheel frame.
Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 0
Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 1

Die Cutting Section
Centre line system reduce time of installation die.
Die frame can be micro adjustment by front and back direction.
Pneumatic lock system for die chase frame and handle locked the plate to ensure 100% safety and fastness locked.

Stripping Section
Adopts 3 frames stripping structure (upper /middle and lower ) to ensure install stripping plate easily.
Center line system can ensure fast set up and change over stripping plate to be high working efficiency, this device also can
install stripping plate at outside.


Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 2
Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 3

Delivery Section
Motorized upper frame suspending hoister.
With automatic auxiliary delivery belt table can realize non-stop delivery , Maximum pile height up to 1400mm.

Electrical Section
The whole machine adopts Japan Omron PLC program control and frequency conversion speed controller.
All kinds of electrical components and detection switches are made of famous brand products from Japan, France, Taiwan and other companies.
Precise operation control and stable performance.
Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 4
Application
This high speed automatic die cutting machine can be equipped with a waste removal function, which is suitable for processing relatively thin cardboard, such as: cosmetic boxes/toy boxes/pill boxes/cigarette boxes, etc.

Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 5
Paper Feeding Die Cutting Creasing Machine 8500s/H Flat Bed Stripping Machine 6
