Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

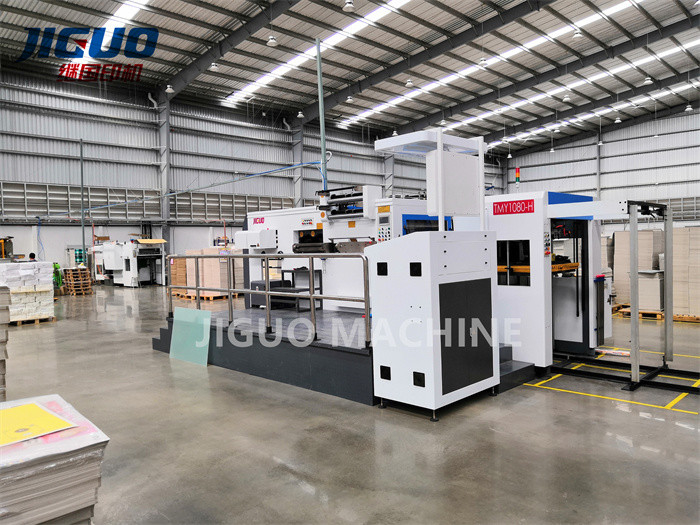

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic
Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic

Large Image :  Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-800H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $200,000/1 Set
Packaging Details: wrapping film
Delivery Time: 45days
Supply Ability: 1~50SET

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic

Description
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
Type: Die-cutting Machine Computerized: Yes
Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers Power: 21KW
Overall Dimension: (6200+1450)X(2280+1850)X(2230+670)mm Name: JIGUO
Machine Type: Flat Die Cutting Place Of Origin: Hebei,China
High Light:

Corrugated Cardboard Die Cutting Stripping Machine

,

Jigsaw Puzzle Die Cutting Stripping Machine

,

610mm Automatic Paper Die Cutting Machine

               MYP-800H Flat Bed Corrugated Cardboard Paper

                   Automatic Die Cutting Machine with Stripping



Products Description​

PARAMETER
Model MYP-800H
Max. sheet size 810X610(mm)
Min. sheet size 320X240(mm)
Max. die cutting size 790X590(mm)
Max.cutting speed 8500s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1-1.5mm(Card paper)

≤4mm(corrugated paper)

Max.pressure 250T
Total power 14.5kw
Net weight 12T
Overall dimension 6400X3400X2000mm
Air requirements 0.8Mpa,>0.36m³/min



Advantage

1. Which adopts high technology with gear main drive can run max speed 8500s/h, shorter

preparation process and perfect quality, which professional applies to all kinds of corrugated

board.

2. Paper hold down pressing plate is adjustable to adapt warped board, no double sheets

to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate variation in gripper

margin.
4. Main drive adopts high quality precision worm gear and toggle system.
5. Centreline system for quick stripping tool set up and change over, compatiable with

centreline Il.
6. Front edge waste removal system removes and transfers waste edge outside the

machine visa conveyor belt.
7. Counter can set based on your products stack request, which will be improve working

efficiency.
8. Motorized upper frame suspending hoister.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 0



Application

This automatic die-cutting machine can be equipped with a waste removal function, which

is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper

Boxes,Corrugated Boxes,Adhensive Stickers,etc.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 1



Payment & Delivery

Our company has become an internationally famous enterprises with products sold well all

over the country and exported to over 20 countries, including the United States, South

Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 2



Company Profile

Tangshan JIGUO Printing Machinery Co., LTD., founded in 1996, is a high-tech enterprise

started jointly by a number of senior engineers, and is located in the central area of YuTian

County within the golden triangle economic zone consisted by Beijing, Tianjin and Tangshan

city with 42.81 mu area covered. Our company has a technical team consisting of 160 elite

personnel who conteribute to our strong technical power, high level skills of design, assembly

and manufacturing, perfect management system and advanced processing and testing

equipment. Our company is specialized in production of post-print paper packaging equipment,

and has established long-term scientific cooperation for die-cutting machine schemes with the

Beijing Institute of Graphic Communication. The company is a modern enterprise incorporating

the design, research and development, sales and service.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 3

Since first launched in market in 1996, with stable quality and reasonable price, our

products have received many praises for our quality and reputation. Our company has

become an internationally famous enterprises with products sold well all over the country

and exported to over 20 countries, including the United States, South Korea, Russia, India,

Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on. JIGUO die-cutting series

products are the star products of our company. We have been incessantly pursuing our

dream; with excellent quality,preferential prices and excellent service, we have been

cooperating with friends at home and abroad closely to obtain mutual benefit and reciprocity,

and create a better tomorrow.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 4

 Our company adheres to the ideas "Technology boosts enterprise” and "Create first-class

products". Advanced management concepts and ideas regarding talents as the base,

technology as the soul,quality as the foundation, brand as the flag, marketing as the power

and service as the source of the company, contributes to rapid development of our enterprise.

Our products have passed the ISO9001 quality certification and the CE certification.Since its

establishment, Tangshan JIGUO printing machines have attended hundreds of large

exhibitions at domestic and abroad, and have won many honorary awards in the industry and

received thousands of praises from domestic and international packaging enterprises.

Attended all the big exhibition in domestic Beijing, Shanghai, Guangzhou. And all the big

exhibition in India, Egypt, Brazil, Turkey, Russia, Italy, Germany and so on. We have now

grown into a well-known domestic post-press equipment manufacturing expert.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 5

Certifications

Our products have passed the ISO9001 quality certification and the CE certification.We have

now grown into a well-known domestic post-press equipment manufacturing expert.

Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 6

Exhibition & Clients

  Corrugated Cardboard Paper Die Cutting Stripping Machine Jigsaw Puzzle Automatic 7

FAQ

1.Q:Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q:What is your delivery time ?

A:Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q:How was your machine warranty ?

A:our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q:How can you do after sales service ?

A:beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q:What’s your payment terms ?

A:30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
