2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

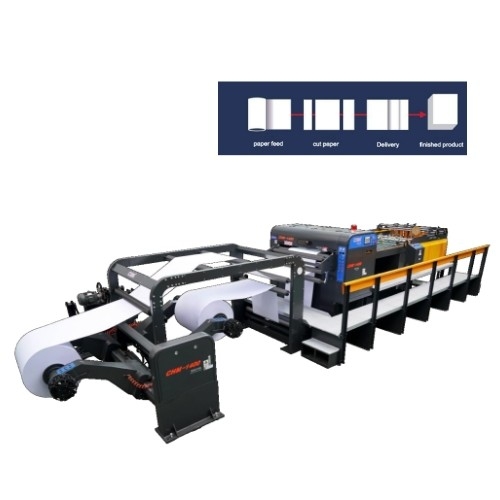

2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm

2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm
2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm

Large Image :  2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm

Product Details:
Place of Origin: CHINA
Brand Name: CHM
Model Number: CHM-1400 II
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10000 to $50000/1 Set
Packaging Details: standard packaging
Delivery Time: 20days
Supply Ability: 8 sets per month

2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm

Description
Finished Width: Max 1400mm (55") Reel Diameter: Max 1800mm (71")
Finished Sheet-Length: Min.450-Max.1650 Mm Condition: Used
Voltage: AC380V/220Vx50Hz Type Of Cutting: Top Blade Rotary, Bottom Blade Fixed
Color: White Requirement Of The Air Pressure: 0.8MPa
High Light:

Single Rotary Used Paper Sheet Cutter

,

Roll To Sheet Paper Cutter AC380V

,

High Precision Used Paper Sheeter

Product Description:

Technics of Equipment

The machines are primarily used for cutting paper in paper mills, printing houses, and other related industries. The main process includes unwinding the paper, cutting it, conveying it, and collecting it.

Standard Configuration
2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 0

Middle Slitting and Waste Edge Collecting System

  1. Style: Adjustable slitting knife and exhaust tube for waste edge on both sides
  2. Top slitter: Adjustable up or down, with manual control for adjusting slitting width
  3. Bottom slitter: Fixed with manual control for adjusting slitting width
  4. Fan: Driven by motor
  5. Type-Y collecting pipe: Used for waste edge disposal2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 1
High Precision Single Rotary Sheet Cutter
  1. Top Tool Apron: Utilizes advanced cutting methods to reduce noise and prolong the life of the knife
  2. Bottom Tool Apron: Casted for stability during processing
  3. Main Driving Roller: Features a grainy surface and is controlled by air pressure to grip the paper tightly, ensuring stable cutting performance
2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 2



Auto-Squareness Adjustment System
Type:

The Tool Apron is fixed using the British method for increased efficiency.

Control Way:

The Touching screen utilizes calibration to automatically adjust the squareness of paper.

2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 3

Paper Conveyer System
Type:

The system employs horizontal conveying with multi-stage capabilities, making counting and piling more efficient. It also includes high efficiency dust collecting equipment.

The first conveying stage

This stage is designed to quickly separate cutting paper.

The Second conveying stage

This stage utilizes a slow speed conveyer for papers with a tile-like shape. The system can be controlled as a single unit or linked to other actions.

2 Rolls Roll To Sheet Paper Cutting Machine With Cutting Accuracy ±0.5mm 4

Technical Parameters:

Attribute Value
Application Paper Cutting
Weight of Paper 60-550 GSM
Type Roll Paper Sheet Cutter
Condition Used
Finished Width Max 1400mm (55")
Requirement of Air Pressure 0.8MPa
Color White
Total Power 29KW
Cutting Accuracy ±0.5mm(L<1000mm) ±0.1% (L≥1000mm)
Voltage AC380V/220Vx50Hz

Applications:

Used Roll Paper Sheet Cutter Machine - CHM-1400 II

Brand Name: CHM

Model Number: CHM-1400 II

Place of Origin: CHINA

Color: White

Weight of Paper: 60-550 GSM

Type of Cutting: Top Blade Rotary, Bottom Blade Fixed

Reel Diameter: Max 1800mm (71")

Number of Rolls Cutting: 2 Rolls

The Used Roll Paper Sheet Cutter Machine, also known as the CHM-1400 II, is a high-quality paper cutting machine designed for professional use. Made in China, this machine has been carefully crafted to meet the needs of businesses and industries that require precise and efficient paper cutting.

Application

The Auto Cutter Cutting Machine is perfect for cutting paper rolls into sheets of various sizes. This machine is suitable for use in industries such as printing, packaging, and paper manufacturing. It is also ideal for businesses that require large quantities of paper sheets, such as schools, offices, and bookbinding companies.



Features
  • Top Blade Rotary and Bottom Blade Fixed cutting system ensures accurate and smooth cutting.
  • Can handle a wide range of paper weight, from 60 to 550 GSM.
  • Reel diameter of up to 1800mm (71") allows for cutting of large paper rolls.
  • Capable of cutting 2 rolls at once, increasing efficiency and productivity.
  • Adjustable cutting speed to suit different types of paper and production needs.
  • Easy to operate and maintain, with user-friendly controls and a durable design.
  • Equipped with safety features to ensure the safety of the operator.
Scene

Imagine a printing company that needs to cut large rolls of paper into different sizes for their clients. With the Used Roll Paper Sheet Cutter Machine, they can easily and accurately cut the paper into the desired sizes, resulting in high-quality, professional-looking prints. The adjustable cutting speed also allows them to cater to different types of paper, ensuring efficient production.

In a packaging company, the Paper Cutting Machine is essential for cutting paper rolls into sheets that are then used for packaging products. With precise cutting and a fast cutting speed, this machine saves time and effort, increasing the company's productivity and profitability.

For a bookbinding company, the Paper Roll Rotary Cutting Machine is an indispensable tool. It can quickly and accurately cut large rolls of paper into sheets that are then used for book covers and pages. The adjustable cutting speed and safety features make it easy and safe to use, ensuring smooth production and high-quality end products.

In conclusion, the Used Roll Paper Sheet Cutter Machine is a versatile and efficient machine that is suitable for various industries and businesses. Its reliable performance and user-friendly design make it an excellent investment for any company that needs to cut paper rolls into sheets. With the CHM-1400 II, you can expect precise and high-quality cutting, saving time and labor costs, and ultimately improving your business's overall productivity and profitability.



FAQ:
  • Q: What is the brand of this product?
    A: The brand of this product is CHM.
  • Q: What is the model number of this product?
    A: The model number of this product is CHM-1400 II.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: What is the cutting width of this machine?
    A: The cutting width of this machine is 1400mm.
  • Q: Is this machine suitable for cutting different types of roll paper?
    A: Yes, this machine is designed to cut various types of roll paper, such as craft paper, kraft paper, tissue paper, etc.
