AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

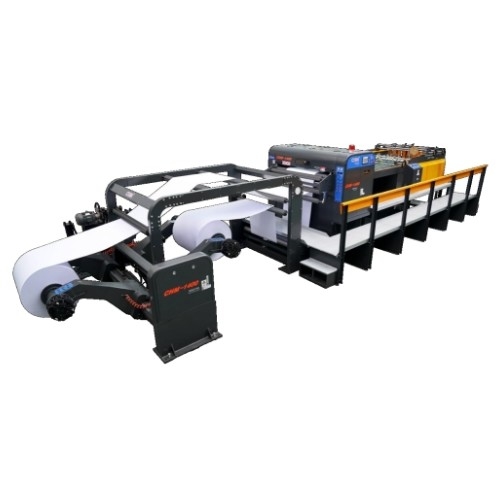

AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2

AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2
AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2

Large Image :  AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2

Product Details:
Place of Origin: CHINA
Brand Name: CHM
Model Number: CHM-1400-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $10000 to $50000/1 Set
Packaging Details: standard packaging
Delivery Time: 15days
Supply Ability: 5sets per month

AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2

Description
Type Of Cutting: Top Blade Rotary, Bottom Blade Fixed Weight Of Paper: 60-550 GSM
Reel Diameter: Max 1800mm (71") Finished Width: Max 1400mm (55")
Finished Sheet-Length: Min.450-Max.1650 Mm Num.of Rolls Cutting: 2 Rolls
Max.speed Of Cutting: 300cuts/min Max.cutting Speed: 300m/min
High Light:

Used Roll Paper Sheet Cutter 1800mm

,

Single Rotary Used Paper Sheeter

,

550 GSM Used Paper Cutting Machine

CHM-1400 II Roll Paper Sheet Cutter Machine(Used)



The machine are mainly used for paper sheeting in Paper Mill, Printing House and etc, mainly process including: Unwinding—Cutting—Conveying—Collecting.



AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 0





Main Technical Parameter



Model   CHM-1400
1. Type of cutting : Top blade rotary, bottom blade fixed
2. weight of paper : 60-550 GSM
3..reel diameter : Max 1800mm (71")
4. Finished width : Max 1400mm (55")
5. Finished sheet-Length : Min.450-Max.1650 mm
6. Num.of rolls cutting : 2 rolls
7. Cutting accuracy :

±0.5mm(L<1000mm)

±0.1% (L≥1000mm)

8. Max.speed of cutting : 300cuts/min
9. Max.cutting speed : 300m/min
10. Requirement of the air pressure : 0.8MPa
11. Voltage : AC380V/220Vx50Hz
12. Total power: : 29KW
13. Accuracy of the roller paper sheet :

±0.5mm(L<1000mm);±0.1% (L≥1000mm)

±0.1%(accelerate or decelerate).

This depend on machine stable and operation when cutting. (cutting one paper roll, the cutting length is right )

14. Output : The real output depend on the material, and the weight of the paper, and right operate process



Standard Configuration



AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 1

Unwind Stand(Included Railway and TrolleyTwo Sets)

1) Max Reel diameter::1800mm (71")

2) Max Reel width:1400mm (55")

3) Min Reel width:500mm (20")

4) Core size: 3",6",12" (Cone chuck)

5) HYD. Driving :3.75kw

6)Clip arm move forward or back driven by HYD

7)Clip arm up or down driven by HYD

8)Pneumatic brake system

9)Dancing roll with related bracket





















































































AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 2

Middle Slitting and Waste Edge Collecting System

1)Style

Adjustable slitting knife and exhaust tube for waste edge on

both sides

2)Top slitter

Adjustable up or down, slitting width can be adjusted by manual.

3)Bottom slitter

The slitter are fixed, slitting width can be adjusted by manual

4)Fan: driven motor

5)Type-Y collecting pipe for waste edge

AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 3

High precision single rotary sheet cutter

1)Top Tool Apron

Adopting cutting way of advanced, so as to decrease noise

and load and prolong life of knife,

2)Bottom Tool Apron

Tool Apron cast on time, then processing, with characteristic

of stability.

3)Main driving roller: grainy surface, controlled by the air

Pressure so as to grip the paper





Product display





AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 4AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 5AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 6AC380V / 220V Used Roll Paper Sheet Cutter Machine Paper Cutting Machine 1400-2 7





FAQ

Q1. What is the delivery time?
A: 15-20 days after deposit.



Q2. Can your company handle shipping for customers?
A: Yes, just give us the destination seaport or container yard.



Q3. Is the packaging firm?
Answer: Yes. It adopts moisture-proof and shock-proof packaging, suitable for long-distance road transportation and various climate conditions.



Q4. How do you ensure the quality of the machine?
A: Each machine will be trial run at least 24 hours before delivery to ensure quality.



Q5. Do you inspect the machine or do a trial run before packaging?
Answer: Of course. We have quality control department to debug the machines before packaging. If you want to use a specific material for a trial run, you will need to pay the cost of the material



Q6. What is the payment term?
A: T/T 30% in advance, the balance should be paid before delivery. Payment by Western Union or L/C at sight is also accepted.
