2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

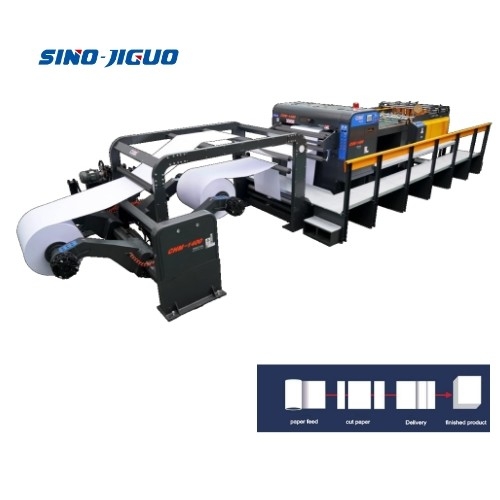

2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power

2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power
2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power

Large Image :  2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power

Product Details:
Place of Origin: CHINA
Brand Name: CHM
Model Number: CHM-1400 II
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $10000 to $50000/1 Set
Packaging Details: standard packaging
Delivery Time: 20days
Supply Ability: 8 sets per month

2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power

Description
Weight Of Paper: 60-550 GSM Condition: Used
Reel Diameter: Max 1800mm (71") Application: Paper Cutting
Voltage: AC380V/220Vx50Hz Max.cutting Speed: 300m/min
Type: Roll Paper Sheet Cutter Cutting Accuracy: ±0.5mm(L<1000mm) ±0.1% (L≥1000mm)
High Light:

2 Rolls Paper Sheet Cutter AC380V

,

Paper Roll To Sheet Cutter Machine

,

Used Paper Sheeter 29KW

Product Description:

Technics of Equipment

The equipment is designed for sheeting paper in various industries such as paper mills and printing houses. The process involves unwinding, cutting, conveying, and collecting.2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 0

Standard Configuration

The equipment comes with a middle slitting and waste edge collecting system, which includes:

  1. Style: Adjustable slitting knife and exhaust tube for waste edge on both sides
  2. Top slitter: Can be adjusted up or down and the slitting width can be manually adjusted.
  3. Bottom slitter: Has a fixed position, but the slitting width can be adjusted manually.
  4. Fan: Equipped with a driven motor.
  5. Type-Y collecting pipe: Used for collecting waste edge.2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 1
High Precision Single Rotary Sheet Cutter

This equipment also features a high precision single rotary sheet cutter, which includes:

  1. Top Tool Apron: Utilizes advanced cutting technology to reduce noise and load, and extend the life of the knife.
  2. Bottom Tool Apron: Made with stable processing techniques for maximum stability.
  3. Main Driving Roller: Has a grainy surface and is controlled by air pressure to grip the paper and provide powerful driving force.
  4. Double Rolling Bands: Can feed 2 papers at once, reducing cutting errors and ensuring stable paper feeding.
2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 2

Features:

Auto-Squareness Adjustment System

Type:
Efficiently fixed Tool Apron designed according to British standards.

Control Way:
Automatically adjusts the squareness of paper based on calibration displayed on the Touching screen.

Paper Conveyer System

Type:
Multi-stage, horizontal conveying system for efficient counting and piling, equipped with high efficiency dust collecting equipment.

The first conveying stage:
Quickly separates cutting paper.

The second conveying stage:
Slowly conveys paper in a tile-like shape, with single or linked control for precision.



Technical Parameters:

Product Attribute Value
Product Name Used Roll Paper Sheet Cutter Machine
Type Roll Paper Sheet Cutter
Condition Used
Number of Rolls Cutting 2 Rolls
Finished Sheet Length Min. 450mm - Max. 1650mm
Finished Width Max. 1400mm (55 inches)
Max. Speed of Cutting 300 cuts/min
Max. Cutting Speed 300m/min
Requirement of Air Pressure 0.8MPa
Color White
Voltage AC380V/220Vx50Hz


Applications:

Used Roll Paper Sheet Cutter Machine


Brand Name: CHM

Model Number: CHM-1400 II

Place of Origin: CHINA


The Used Roll Paper Sheet Cutter Machine, manufactured by CHM, is a high-quality and efficient Paper Processing Machinery designed to cater to the needs of various industries. The CHM-1400 II model is the latest addition to the CHM family, known for its precision and reliability.

The machine is primarily used for converting large rolls of paper into manageable sheets, making it an essential tool for industries such as printing, packaging, and paper manufacturing. Its advanced technology and superior cutting capabilities make it a preferred choice for Paper Processing Machinery.

The Roll To Sheet Paper Sheeting Machine has a finished width of maximum 1400mm (55"), making it suitable for cutting various sizes of paper sheets. The machine operates at a maximum cutting speed of 300m/min, with a cutting speed of 300 cuts per minute, ensuring quick and efficient production.

One of the key features of this machine is its white color, which not only adds to its aesthetic appeal but also ensures that the machine remains clean and free from dust and debris. This is crucial for maintaining the quality of the paper sheets produced.

As a leading Paper Processing Machinery Manufacturer, CHM has incorporated advanced technology and innovative designs in the CHM-1400 II model. The machine is equipped with a user-friendly interface, making it easy to operate and monitor. It also has safety features in place to prevent accidents and promote a safe working environment.

The Used Roll Paper Sheet Cutter Machine is suitable for various applications such as cutting paper sheets for printing flyers, brochures, and labels, as well as for packaging and labeling products. Its versatility and efficiency make it an ideal choice for businesses looking to increase their production and improve their overall efficiency.

Overall, the CHM-1400 II model is a top-of-the-line Roll Paper Sheet Cutter Machine that offers precision, speed, and reliability. As a trusted brand in the industry, CHM ensures that their machines are of the highest quality, making them a preferred choice among businesses worldwide.

2 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 32 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 42 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 52 Rolls Paper Roll To Sheet Cutter Machine With 29KW Total Power 6









FAQ:



  • Q: What is the brand name of this product?
  • A: The brand name of this product is CHM.
  • Q: What is the model number of this product?
  • A: The model number of this product is CHM-1400 II.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What is the maximum width of the roll paper that can be cut by this machine?
  • A: The maximum width of the roll paper that can be cut by this machine is 1400mm.
  • Q: Does this machine have an automatic paper feeding system?
  • A: Yes, this machine is equipped with an automatic paper feeding system.
