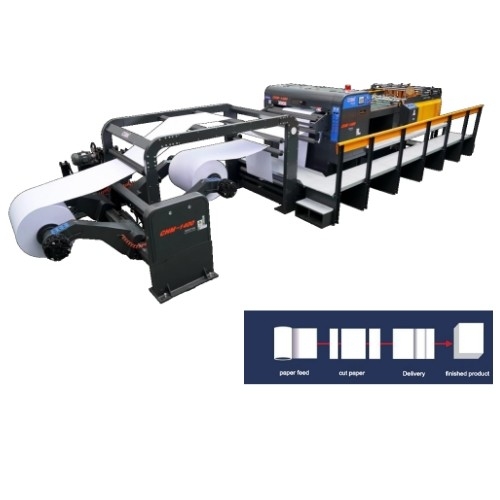

Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm

Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm
Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm

Large Image :  Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm

Product Details:
Place of Origin: CHINA
Brand Name: CHM
Model Number: CHM-1400 II
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $10000to $50000/1 Set
Packaging Details: standard packaging
Delivery Time: 20days

Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm

Description
Voltage: AC380V/220Vx50Hz Weight Of Paper: 60-550 GSM
Condition: Used Requirement Of The Air Pressure: 0.8MPa
Max.speed Of Cutting: 300cuts/min Color: White
Reel Diameter: Max 1800mm (71") Max.cutting Speed: 300m/min
High Light:

Servo Driven Used Paper Cutter Machine

,

1800mm Used Paper Cutter Machine

,

AC380V Paper Cutting Machine Second Hand

Product Description:

Technics of Equipment

The machines are primarily used for cutting paper in paper mills, printing houses, and other industries. The main process includes: Unwinding-Cutting-Conveying-Collecting.Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm 0

Standard Configuration

Equipped with a middle slitting and waste edge collecting system, these machines offer the following features:

  1. Style: Adjustable slitting knife and exhaust tube for waste edge on both sides.
  2. Top Slitter: The top slitter can be adjusted up or down, allowing for manual adjustment of slitting width.
  3. Bottom Slitter: The bottom slitter is fixed, but its slitting width can also be adjusted manually.
  4. Fan: Driven by a motor.
  5. Type-Y Collecting Pipe: Used for collecting waste edges.Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm 1High Precision Single Rotary Sheet Cutter

With a focus on precision, this single rotary sheet cutter offers the following features:

  1. Top Tool Apron: It adopts an advanced cutting method to reduce noise and load, and extend the life of the knife.
  2. Bottom Tool Apron: The tool apron is cast and processed at the same time, providing stability.
  3. Main Driving Roller: Features a grainy surface and is controlled by air pressure to ensure a firm grip on the paper and increase cutting accuracy.
Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm 2

Features:

Auto-Squareness Adjustment System

The Auto-Squareness Adjustment System is a cutting-edge technology designed to improve efficiency in industrial settings. This system utilizes a tool apron fixed in the British style, resulting in increased efficiency.

Type: Tool Apron fixed as the way of British, ensuring maximum efficiency.

Control Way: The squareness of paper is automatically adjusted according to the calibration on the touching screen.Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm 3Paper Conveyer System

The Paper Conveyer System is a highly efficient method of transporting paper in industrial settings.

Type: Horizontal conveying with multiple stages for convenient counting and piling, equipped with high efficiency dust collecting equipment.

The first conveying stage: This stage is designed to quickly separate cutting paper.

The Second conveying stage: In this stage, the paper is conveyed at a slower speed, resembling the shape of tiles. The system offers the option for single or linkage acting control.

Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm 4Technical Parameters:
Technical Parameters Value
Product Name Used Roll Paper Sheet Cutter Machine
Finished Width Max 1400mm (55")
Finished Sheet-Length Min.450-Max.1650mm
Application Paper Cutting
Max. Cutting Speed 300m/min
Total Power 29KW
Condition Used
Voltage AC380V/220Vx50Hz
Type of Cutting Top Blade Rotary, Bottom Blade Fixed
Type Roll Paper Sheet Cutter
Weight of Paper 60-550 GSM
Keywords Paper Processing Machinery, Paper Roll To Sheet Cutter Machine, Paper Processing Machinery


Applications:

Used Roll Paper Sheet Cutter Machine

Brand Name: CHM

Model Number: CHM-1400 II

Place of Origin: CHINA

Type: Roll Paper Sheet Cutter

Requirement of the air pressure: 0.8MPa

Color: White

Max.cutting speed: 300m/min

Finished sheet-Length: Min.450-Max.1650 Mm

The Used Roll Paper Sheet Cutter Machine, also known as Servo Driven Paper Sheeting Machine, is a high-tech Paper Processing Machinery designed and manufactured by CHM, a leading Paper Processing Machinery Manufacturer in China. This machine is widely used in various industries and has a variety of applications.

The Used Roll Paper Sheet Cutter Machine is perfect for cutting large rolls of paper into smaller, more manageable sheets. It is suitable for cutting various types of paper, including kraft paper, coated paper, corrugated paper, and more. With its fast cutting speed of 300m/min, this machine can efficiently produce a large number of sheets in a short period of time.

One of the key features of this machine is its servo-driven system, which ensures precise and accurate cutting. This makes it ideal for industries that require high-precision cutting, such as packaging, printing, and labeling. The machine also has a maximum cutting length of 1650mm, giving users the flexibility to produce sheets of different sizes according to their needs.

The Used Roll Paper Sheet Cutter Machine is equipped with advanced technology that allows it to operate with minimal air pressure of 0.8MPa, reducing energy consumption and operating costs. Its sleek white design adds a touch of elegance to any workspace, making it a popular choice among businesses.

This machine is suitable for a variety of applications, such as producing sheets for packaging boxes, books, magazines, flyers, and more. It is also used for cutting paper for labeling and printing purposes. With its high-speed and precision cutting capabilities, the Used Roll Paper Sheet Cutter Machine is a valuable asset for businesses in the paper processing industry.

In conclusion, the CHM-1400 II Used Roll Paper Sheet Cutter Machine is a reliable and efficient choice for industries that require precise and fast paper cutting. With its advanced technology and user-friendly design, it is a must-have for any business in the paper processing industry.





Packing and Shipping:

Packaging and Shipping for Used Roll Paper Sheet Cutter Machine

Our Used Roll Paper Sheet Cutter Machine is carefully packaged to ensure safe delivery to our customers. Used Paper Cutter Machine With Servo Driven Max Reel Diameter 1800mm 5



FAQ:

  • Q: What is the brand of this product?
    A: The brand name of this product is CHM.
  • Q: What is the model number of this product?
    A: The model number of this product is CHM-1400 II.
  • Q: Where is this product made?
    A: This product is made in China.
  • Q: What type of paper can this machine cut?
    A: This machine can cut used roll paper sheets of various thicknesses.
  • Q: Does this product come with a warranty?
    A: Yes, this product comes with a warranty for any manufacturing defects.
