MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

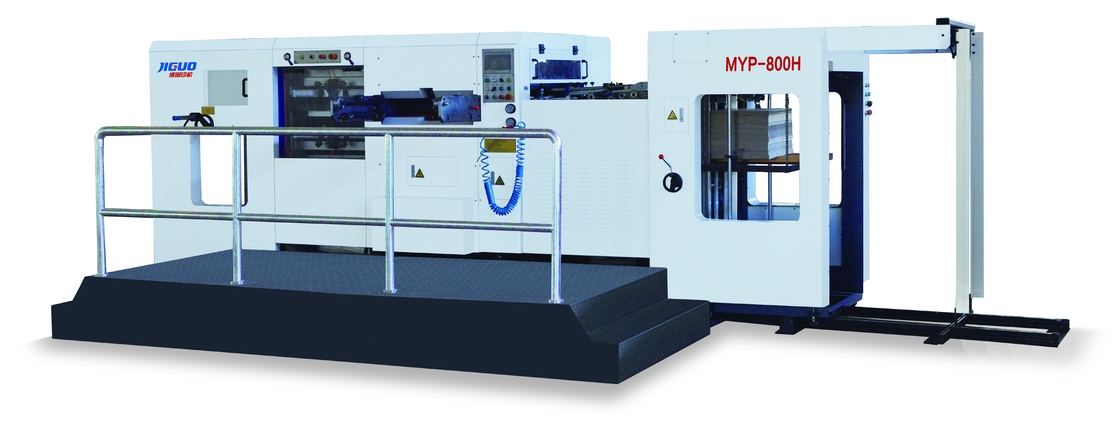

MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H

MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H
MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H

Large Image :  MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H

Product Details:
Place of Origin: CHINA
Brand Name: SING JIGUO
Certification: CE
Model Number: MYP-800H Autoamtic Die-Cutting & Stripping MachineMachine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 70000dllors---90000dollors
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 45set

MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H

Description
Sheet Thickness: Corrugated Board :≤4mm Cardboard:0.1-1.5 Mm ( 80-2000gsm ) Max.Stripping Speed: 7500s/h
Max.cutting Speed: 8500s/h Max.cutting Size: 780×590mm
Max.paper Size: 810×610mm Max.pressure: 250 Tons
Total Power: 14.5KW Min.paper Size: 320×240mm
High Light:

Cardboard High Speed Cutting Stripping Machine

,

8500s/H Stripping Die Cutter

,

250 Tons Die Cutting Stripping Machine

Product Description:

Automatic Die Cutting & Stripping Machine


This Automatic Die Cutting & Stripping Machine is a high-performance, versatile and efficient machine designed for the professional die cutting and stripping needs of the printing industry. With its advanced technology and precision engineering, this machine offers superior quality and productivity for a wide range of corrugated board and cardboard materials.

The Die Cutting Stripping Machine is capable of handling a variety of materials with different thicknesses, providing flexibility and convenience for your die cutting needs. With its sturdy construction and user-friendly design, this machine is suitable for both small and large print runs, making it an ideal choice for any printing business.

Key features of this product include:

  • Max. Cutting Size: 780×590mm
  • Sheet Thickness: Corrugated Board: ≤4mm, Cardboard: 0.1-1.5mm (80-2000gsm)
  • Max. Paper Size: 810×610mm
  • Total Power: 14.5KW
  • Min. Gripper Edge: Provides precise and accurate die cutting and stripping, minimizing waste and maximizing productivity

With its high cutting speed, low maintenance and easy operation, this Die Cutting Stripping Machine is a cost-effective solution for all your die cutting needs. Whether you need to produce packaging materials, labels, or any other die cut products, this machine will deliver exceptional results every time.

Invest in this Automatic Die Cutting & Stripping Machine and experience the perfect combination of efficiency, precision, and quality in your die cutting operations. For more information, please contact us at [INSERT CONTACT DETAILS] and our team will be happy to assist you.



Features:

  • Product Name: Die Cutting Stripping Machine
  • Max. Stripping speed: 7500s/h
  • Total power: 14.5KW
  • Max. cutting speed: 8500s/h
  • Max. pressure: 250 Tons
  • Max. cutting size: 780×590mm
  • Net weight:
  • Min. Gripper Edge:


Technical Parameters:

Product name Automatic Die Cutting & Stripping Machine
Min.paper size 320×240mm
Max.pressure 250 Tons
Total power 14.5KW
Max.Stripping speed 7500s/h
Sheet thickness Corrugated Board :≤4mm
Cardboard:0.1-1.5 Mm ( 80-2000gsm )
Max.cutting size 780×590mm
Max.cutting speed 8500s/h
Max.paper size 810×610mm


Applications:



Die Cutting Stripping Machine - SING JIGUO MYP-800H
Introduction

The Die Cutting Stripping Machine, also known as the Automatic Die Cutting & Stripping Machine, is a highly efficient and versatile machine designed for the cutting and stripping of various materials. It is manufactured by SING JIGUO, a leading brand in the industry, and is widely used in various industries such as packaging, printing, and paper manufacturing. The MYP-800H model is the latest addition to their line of high-quality machines and boasts impressive features, making it the go-to choice for many businesses.

Product Attributes
  • Brand Name: SING JIGUO
  • Model Number: MYP-800H
  • Place of Origin: China
  • Product Name: Automatic Die Cutting & Stripping Machine
  • Max. Cutting Speed: 8500 sheets per hour
  • Sheet Thickness: Corrugated Board: ≤4mm, Cardboard: 0.1-1.5mm (80-2000gsm)
  • Max. Paper Size: 810x610mm
  • Total Power: 14.5KW
Application

The MYP-800H Die Cutting Stripping Machine is suitable for a wide range of materials, making it an essential tool in various industries. Some of its applications include:

  • Packaging: The machine can handle different types of packaging materials, including corrugated board, paperboard, and cardboard, making it ideal for producing boxes, cartons, and other packaging products.
  • Printing: The machine is an effective solution for die cutting and stripping printed materials, such as labels, stickers, and other paper-based products.
  • Paper Manufacturing: With its high cutting speed and precision, the machine is perfect for processing paper materials, such as paper bags, envelopes, and more.
Max. Pressure & Delivery Pile

The MYP-800H boasts a maximum pressure of 250 tons, providing enough force to cut through thick and tough materials. It also has a maximum delivery pile of 1400mm, allowing for continuous operation without frequent interruptions.

Net & Gross Weight

The machine has a net weight of 12000kg making it easy to transport and set up in different locations. Its compact design and lightweight construction also save valuable space in the production area.

Dimensions

The dimensions of the MYP-800H are 6400mm (length) x 3400mm (width) x 2000mm (height), making it a compact and space-saving machine. Its size also allows for easy integration into existing production lines, increasing efficiency and productivity.

Conclusion

In summary, the MYP-800H Automatic Die Cutting & Stripping Machine is a highly versatile and efficient machine suitable for a wide range of materials and applications. With its impressive features and reliable performance, it is an essential tool for businesses looking to streamline their production processes and increase their output. Trust in the SING JIGUO brand and invest in the MYP-800H for all your die cutting and stripping needs.



Descriptions of the entire product



(1)Paper Feeding Unit

MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H 0
  • The enlarged paper feeding head (Feida head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
  • By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.
  • To improve the working efficiency, paper feeding and collecting are realized by Taiwan Chenggang dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.                                                  (2)Paper Conveying Unit:
  • MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H 1
  • The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
  • Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

  • (3)Die-cutting Unit

  • MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H 2MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H 3

  • The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
  • The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
  • (4)Paper Collecting Unit
  • MYP-800H Die Cutting Stripping Machine Max Running Speed 8500s/H 4
  • Paper can be collected automatically and orderly.
  • The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
  • By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

Customization:

SING JIGUO MYP-800H Automatic Die-Cutting & Stripping Machine Customization Services

Brand Name: SING JIGUO

Model Number: MYP-800H

Place of Origin: CHINA

Min.paper size: 320×240mm

Max.cutting speed: 8500s/h

Max.Stripping speed: 7500s/h

Total power: 14.5KW

Sheet thickness: Corrugated Board: ≤4mm Cardboard: 0.1-1.5mm (80-2000gsm)

Key features:

  • Min.paper size: 320×240mm
  • Max.cutting speed: 8500s/h
  • Max.Stripping speed: 7500s/h
  • Total power: 14.5KW
  • Sheet thickness: Corrugated Board: ≤4mm Cardboard: 0.1-1.5mm (80-2000gsm)


Support and Services:

Die Cutting Stripping Machine
Technical Support and Services

Our Die Cutting Stripping Machine is designed and manufactured using the latest technology and highest quality materials to ensure optimal performance and customer satisfaction. We are committed to providing excellent technical support and services to all our customers.

Technical Support

Our team of highly trained and experienced technicians are always available to provide technical support for any issues or inquiries you may have regarding our Die Cutting Stripping Machine. We offer remote support and troubleshooting services to quickly and efficiently solve any problems you may encounter.

Training

We understand the importance of proper training for the efficient and safe operation of our Die Cutting Stripping Machine. That's why we offer comprehensive training programs for our customers, including machine operation, maintenance, and troubleshooting. Our training programs are designed to ensure that your team is fully equipped to handle any situation that may arise.

Installation and Commissioning

Our team of experts will provide installation and commissioning services for your Die Cutting Stripping Machine to ensure proper setup and functionality. We will also perform thorough testing to ensure that the machine is running at optimal performance before handing it over to you.

Spare Parts and Maintenance

We understand the importance of keeping your production line running smoothly. That's why we offer a wide range of spare parts for our Die Cutting Stripping Machine and provide regular maintenance services to keep your machine in top condition. Our team will work with you to create a maintenance schedule that fits your production needs.

Upgrades and Customizations

We are constantly improving and developing our Die Cutting Stripping Machine to meet the evolving needs of our customers. We offer upgrade packages and customizations to enhance the performance and capabilities of your machine, ensuring that it stays up-to-date with the latest technology.

At Die Cutting Stripping Machine, we are committed to providing the best technical support and services to our customers. Contact us today to learn more about how we can assist you with your die cutting and stripping needs.



Packing and Shipping:

Packaging and Shipping for Die Cutting Stripping Machine

Our Die Cutting Stripping Machine is carefully packaged to ensure safe delivery to our customers. The packaging materials used are sturdy and durable, providing protection during transportation.

The machine is first wrapped in a layer of bubble wrap, followed by a layer of foam padding. It is then placed in a strong cardboard box and sealed with packing tape to prevent any damage during transit.

For international orders, the machine is also securely strapped to a wooden pallet to prevent any movement during shipping.

Each package includes a manual and a warranty card, as well as a list of contact information for our customer service team.

We understand the importance of timely delivery and strive to ship orders as quickly as possible. Once the order is confirmed, our team works diligently to prepare the package for shipment within 2-3 business days.

We offer various shipping options to meet the needs of our customers. These include standard ground shipping, expedited shipping, and international shipping. Customers can choose the option that best suits their needs at the time of purchase.

We also provide tracking information for all shipments, allowing customers to track their orders and know exactly when to expect delivery.

At Die Cutting Stripping Machine, we take great care in packaging and shipping our products to ensure that they arrive at their destination in perfect condition. We want our customers to be completely satisfied with their purchase and will do everything we can to make sure their experience with us is a positive one.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name is SING JIGUO.
  • Q: What is the model number of this product?
  • A: The model number is MYP-800H Automatic Die-Cutting & Stripping Machine.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.
  • Q: What is the main function of this machine?
  • A: The main function of this machine is die-cutting and stripping.
  • Q: What type of material can this machine work with?
  • A: This machine can work with various types of materials such as paper, cardboard, and plastic.
