Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

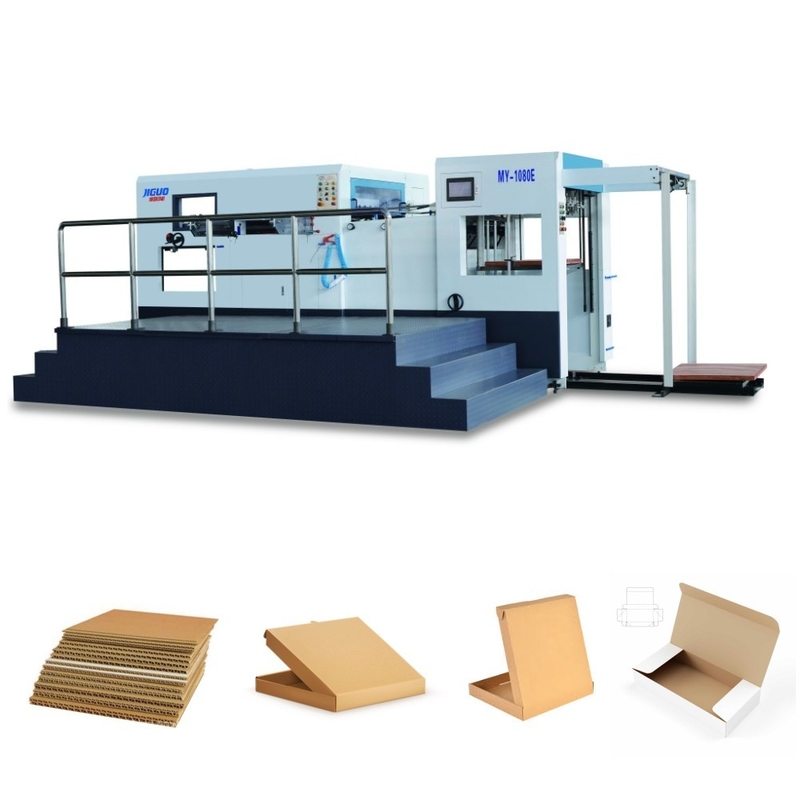

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm
Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm
Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm

Large Image :  Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE
Model Number: MY-1080E
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: USD 99000-110000 pcs
Packaging Details: Export package
Delivery Time: 15-20 days depend on stock
Payment Terms: L/C, T/T
Supply Ability: 300 sets per year

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm

Description
Max Paper Size: 1080*780 Min Paper Size: 400*370
Max Die Cutting Size: 1030*750 Die Cutting Speed: 0.1mm
Sheet Thickness: Paper Cardboard 0.1-3mm Corrugated Board Max 4mm Max Pressure: 320T
Total Power: 18kw Net Weight: 16T
Min Gripper Edge: 7mm
High Light:

4mm Automatic Die Cutting Machine

,

Corrugated Paper Automatic Die Cutter

,

Automatic Die Cutting Machine 18kw

JIGUO MYP-800H Automatic Die Cutting And Stripping Machine

1. Automatic Die Cutting Machine is designed for die cutting specially.
It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 5 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, stripping, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.



Automatic die-cutting and creasing machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced.



Products Description​

Model MY-1080E
Max.paper size 1080*780mm
Min.paper size 400*370 mm
Max.cutting size 1030*750mm
Max.cutting speed 7500s/h
Die Cutting Precision ± 0.1mm
Min. Gripper Edge 7mm
Sheet thickness Corrugated board :≤4mm
Cardboard:0.1-3 mm ( 80-2000gsm )
Max.pressure 320 Tons
Total power 18KW
Net weight 18.5 Tons
Air requirement 0.8Mpa,>0.36m³/min
Overall dimension 6400×3950×2360mm








Descriptions of the entire product

Paper Feeding UnitCardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 0

The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.

Paper Conveying UnitCardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 1

  • The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
  • The incline-type paper moving table top is more suitable to high-speed thin paper and location.
  • Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

Main Chain

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 2

The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.

Die Cutting Unit

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 3





  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
  • The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
  • The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

Paper Collecting Unit

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 4

  • Paper can be collected automatically and orderly.
  • The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
  • By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

Electrical Control Unit

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 5

  • The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
  • The human-machine interface can display various working conditions, indicate fault positions and give solutions.
  • The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 6



Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 7

In Customer Workshop

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 8



Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 9
Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 10
Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 11

Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 12
Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 13
Cardboard Corrugated Paper Automatic Die Cutting Machine MY-1080E 1080*780mm 14
