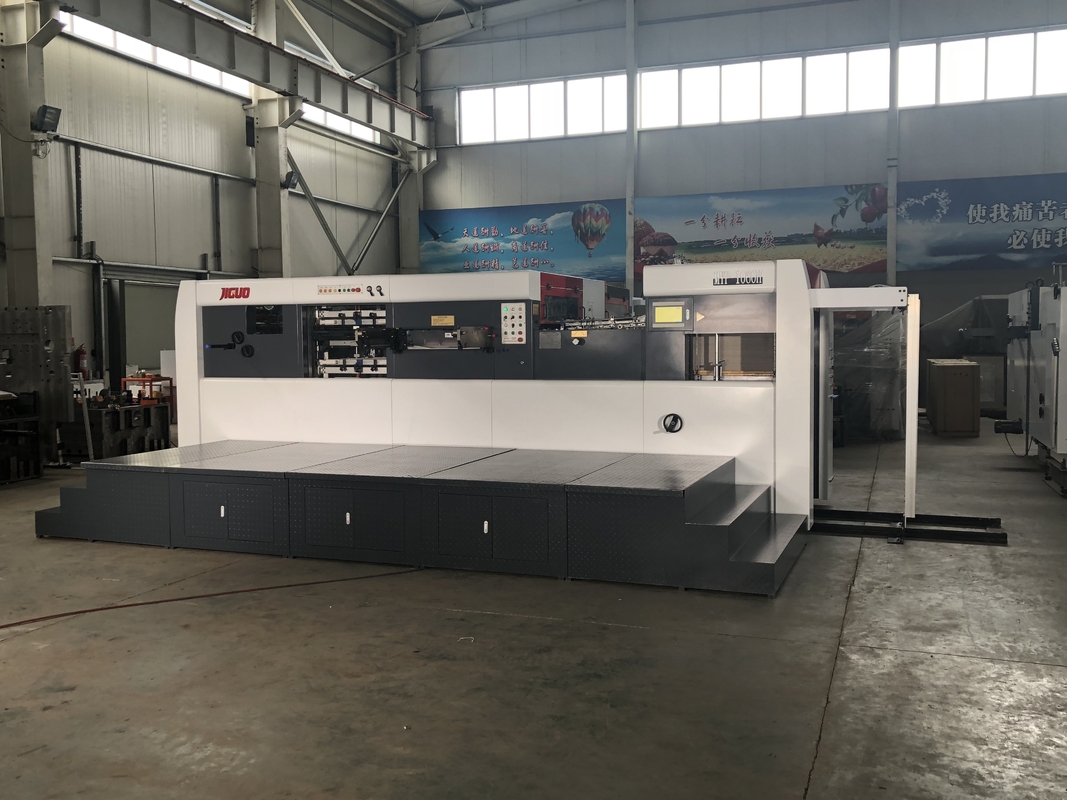

MYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard

Description
Max Paper Size: 1060*760 Min Paper Size: 400*360
Max Die Cutting Size: 1040*740 Die Cutting Speed: 0.1mm
Sheet Thickness: Paper Cardboard 0.1-1.5mm Corrugated Board Max 4mm Max Pressure: 350T
Total Power: 21 Kw Net Weight: 19T
Min Gripper Edge: 7mm
High Light:

Flatbed Automatic Die Cutting Stripping Machine

,

Package Box Die Cutting Stripping Machine

,

Cardboard Box Cutting Machine 350T

JIGUO MYP-1060H Automatic Die Cutting And Stripping Machine

1. Automatic Die Cutting Machine is designed for die cutting specially.
It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 5 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, stripping, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.



Automatic die-cutting and creasing machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced.



Products Description​



Model MYP-1060H
Max.paper size 1060×760mm
Min.paper size 40360mm
Max.cutting size 1040×740mm
Max.die cutting speed 7500s/h
Max. Stripping speed 7000s/h
Min. Gripper Edge 7mm
Sheet thickness

Corrugated board: ≤4mm

Cardboard: 80-2000g/m²

Die-cutting Accurate ±0.1mm
Max. Feeding Pile 1600mm
Max. Delivery Pile 1400mm
Max.pressure 350 Tons
Total power 24 Kw
Net weight 19 Tons
Air requirement 0.8Mpa,>0.36m³/min
Overall dimension (6200+1450)*(2280+1850)*(2230)mm














Descriptions of the entire product

Paper Feeding UnitMYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 0

The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.

Paper Conveying UnitMYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 1

  • The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
  • The incline-type paper moving table top is more suitable to high-speed thin paper and location.
  • Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.

Main Chain

MYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 2

The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.

Die Cutting Unit

MYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 3





  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
  • The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
  • The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

Paper Stripping Unit

MYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 4

  • By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting.
  • The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.
  • The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.
  • The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate.
  • The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping.

Paper Collecting Unit

MYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 5

  • Paper can be collected automatically and orderly.
  • The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
  • By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

Electrical Control Unit

MYP-1060H Flatbed Automatic Die Cutting Stripping Machine Package Box And Cardboard 6

  • The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
  • The human-machine interface can display various working conditions, indicate fault positions and give solutions.
  • The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.
