320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

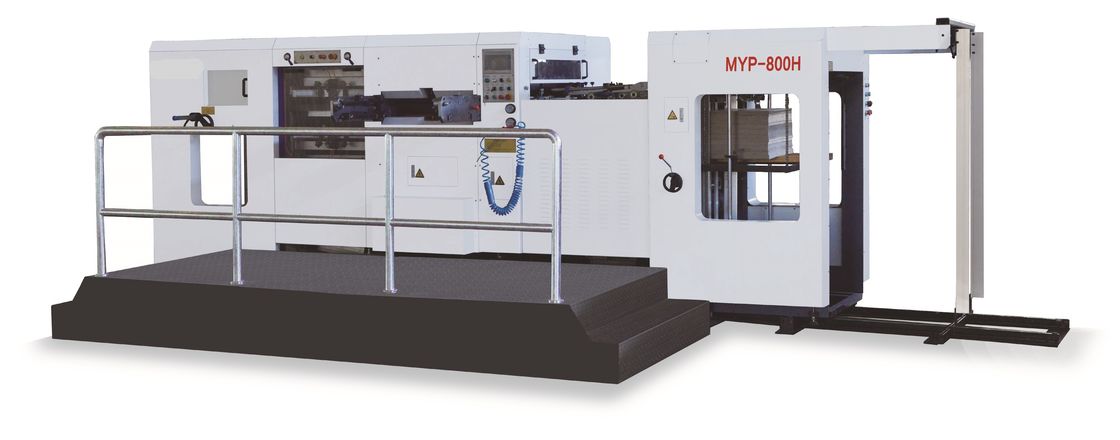

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min
320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min

Large Image :  320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min

Product Details:
Place of Origin: CHINA
Brand Name: SING JIGUO
Certification: CE
Model Number: MYP-800H Autoamtic Die-Cutting & Stripping Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $75000 to $100000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 1~50SET

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min

Description
Product Name: Automatic Die Cutting & Stripping Machine Sheet Thickness: Corrugated Board :≤4mm Cardboard:0.1-1.5 Mm ( 80-2000gsm )
Max.cutting Size: 780x590mm Max.cutting Speed: 8500s/h
Total Power: 14.5KW Max.paper Size: 810×610mm
Max.Stripping Speed: 7500s/h Min.paper Size: 320×240mm
High Light:

8500s/H Die Cutting Stripping Machine

,

Automatic Paper Die Cutting Stripping Machine

,

Paper Corrugated Board Cutting Machine

Product Description:

Die Cutting Stripping Machine is a powerful and efficient machine designed for the die cutting and stripping of heavy-duty corrugated board and thin cardboard. It can cut a variety of materials including corrugated board and thin cardboard with thickness from 0.1mm to 4mm and 80-2000gsm. With Max.paper size up to 810 x 610mm, Min. Gripper Edge as small as 5mm, Max.pressure of 250 Tons and Total power of 14.5KW, the machine offers excellent cutting accuracy and efficiency, and can reach a Max.cutting speed up to 8500s/h.

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 0



Features:

  • Product Name: Die Cutting Stripping Machine
  • Max.paper size: 810×610mm
  • Product name: Automatic Die Cutting & Stripping Machine
  • Sheet thickness: Corrugated Board :≤4mm Cardboard:0.1-1.5 Mm ( 80-2000gsm )
  • Max.Stripping speed: 7500s/h
  • Max.cutting size: 790×590mm
  • Min. Gripper Edge: 7mm
  • Max.pressure: 250T
  • Technical Parameters:




320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 1

Automatic Die-cutting With Stripping Machine Local Details

1 ,Paper Feeding Unit

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 2 The enlarged paper feeding head (Feida head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.



2 ,Paper Conveying Unit:

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 3

 The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.



3 ,Die-cutting Unit

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 4The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The
pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
2) This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

Application field

320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 5320x240mm Paper Size Die Cutting Stripping Machine Cutting Speed 8500s/H Min 6


Support and Services:

Technical Support and Service for Die Cutting Stripping Machine

Our team is dedicated to providing reliable technical support and service for our Die Cutting Stripping Machine. Our technicians are available 24/7 to answer any questions or troubleshoot any issues you may have. Whether it's operational issues, maintenance, or installation, our team is here to help.

We offer a variety of services, including:

  • Technical Support and Troubleshooting
  • Installation and Setup Assistance
  • Preventive Maintenance and Service
  • Upgrades and Repairs
  • Spare Parts and Accessories

We also provide training and education services to ensure you get the most out of your Die Cutting Stripping Machine. Our instructional materials are designed to help you understand the operation and maintenance of your machine.

If you need assistance with technical support and service for your Die Cutting Stripping Machine, please don't hesitate to contact us.



Packing and Shipping:

Packaging and Shipping of Die Cutting Stripping Machine

The Die Cutting Stripping Machine will be delivered securely packaged in a wooden crate. The crate will include all components necessary to operate the machine, including the product manual. The crate will then be shipped in a standard delivery truck or containerized for ocean shipping.



FAQ:

Q: What is the brand of the Die Cutting Stripping Machine?
A: The brand of the Die Cutting Stripping Machine is SING JIGUO.
Q: What is the model number of the Die Cutting Stripping Machine?
A: The model number of the Die Cutting Stripping Machine is MYP-800H Automatic Die-Cutting & Stripping Machine.
Q: Where is the Die Cutting Stripping Machine manufactured?
A: The Die Cutting Stripping Machine is manufactured in China.
Q: What are the main features of the Die Cutting Stripping Machine?
A: The Die Cutting Stripping Machine has a double servo motor, an adjustable pressure system, and a double photo-sensing system.
Q: What materials can be used for the Die Cutting Stripping Machine?
A: The Die Cutting Stripping Machine can be used with paper, film, aluminum foil, and other materials.
