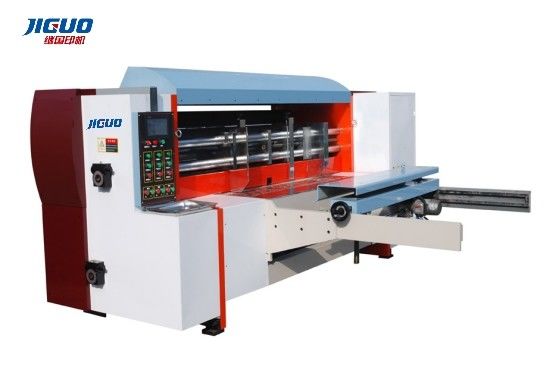

Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting

Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting
Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting

Large Image :  Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: 2800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD40000-45000/set
Packaging Details: wrapping film
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month

Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting

Description
Name: Lead Edge Automatic Rotory Die-Cutting Machine Applicable Industries: Manufacturing Plant, Printing Shops, Other
Showroom Location: Egypt, Turkey, United States, Italy, Viet Nam Condition: New
Max. Die Cutting Size: 2830*1350mm Min. Die Cutting Size: 350*350mm
Type: Other Place Of Origin: Hebei, China
Video Outgoing-inspection: Provided Marketing Type: 2023
High Light:

Lead Edge Rotary Die Cutting Machine

,

Automatic Rotary Die Cutting Machine

  Lead Edge Automatic Rotory Die-Cutting Machine Paperboard Carton Flexo Printing Slotting



Rotory Die-cutting Machine Product Description



1. This machine is component with the lead feeding unit and die cutting unit,can accomplish the process of the corrugated paperboard feeding&die cutting.



2. The materials of the body is carbon steel,thickness of body is 60mm,after second stage annealing ,making by CNC machine,with high strength and high precision.

3. All the transmission gear is spiral gear,with low noise and high precision,gears after high frequency heating and grinding,adopt automatic circle lubrication.

4. Bearing adopt the famous brand made in China like HRB and NSK.

5. The mail motor adopt frequency converters adjust,the frequency is “Delta” brand made in Taiwan,the PLC also adopt “LEVI” brand made in China,the contactor adopt “Seimens” brand.

6. The rubber roller adopt JINGYANG rubber roller, Taiwan brand,famous brand in China.



            Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting 0



 Technical Parameters Of Rotory Die-cutting Machine

PARAMETER
Model FMZ-2800
Max. Die cutting size 2830MM*1350MM
Min. Die cutting size 350MM*350MM
Roller length 2900MM
Wallboard inner warp 3100MM
Machine weight 7000KG
Cardboard thickness

2-10MM

Diameter of the upper roller 434.2MM
Diameter of the lower roller 410MM



Local Details

Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting 1
Cardboard feeding unit


1. Lead edge feeding paper device can decrease the blocking phenomenon when feeding paper.

2. It adopt air blower auxiliary feeding paper , the bending paper can feed in smoothly , wind Volume can adjust according to the paperboard size , so it can make the adsorptive power at the maxi level and feed paper precisely.

3. Side baffles adopt electric adjustment , front and back baffle adopt manual adjustment.

4. Feeding paper by partition device , it can choose feed paper by partition or continuation.

5. It is used to three , five layer paperboard also including E flute paperboard.

Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting 2
The die-cutting unit

1. The cutter mold roller and cushion roller gap adjusts manual adjustment.
2. The cutter mold roller adopts planet gear structure , high precision and bearing power , no matter it stops or runs , it can adjust with electric 360 degrees adjustment.
3. When stop feeding paper , the two rollers will be separate and decrease the rubber roller attrition.
4. The cushion roller adopt mechanical cam left and right moving device , every knife is not the same position and prolong the using life.
5. The up and down die cutting roller diameter is not same , but the linear speed is the same, so it can control the knife moves the circumferential direction infinite not cycle , so the cushion attrition will be uniform.
6. The linear speed compensating device , when the cushion roller diameter changes , the linear speed will compensate automatically , no need worker to adjust speed and guarantee each batch carton box size is the same and prolong the cushion and cutter life.
Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting 3
Stacker unit


1. The whole operate easily and conveniently , it is widely used after die cutting unit.

2. Platform rises up and down safety design to ensure operator safety.

3. Frequency conversion adjusting speed drive, it is easy linkage with main motor.

4. Receiving paper belt adopts vacuum absorption transmission to ensure paperboard neatly.

5. Paperboard batches structure to ensure stack smoothly at high speed.

6. Leading paper pressing wheel ensures paperboard enter paper receiving unit smoothly.

7. Pneumatic patting paperboard structure ensures paperboard to stack neatly.



Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting 4



Lead Edge Rotary Die Cutting Machine Paperboard Carton Flexo Printing Slotting 5



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
