Full Automatic Paper Roll Cutting Machine A3 A4 Paper Cutting And Packing Machine

Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine
Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine

Large Image :  Full Automatic Paper Roll Cutting Machine A3 A4 Paper Cutting And Packing Machine

Product Details:
Certification: CE, ISO9001
Model Number: ZWJ-1100 A4 Paper Cutting And Packing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $118000~120000
Packaging Details: wooden case
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Full Automatic Paper Roll Cutting Machine A3 A4 Paper Cutting And Packing Machine

Description
Place Of Origin: Hebei,China Brand Name: JIGUO
Applicable Industries: Manufacturing Plant, A4 Paper Cutting And Packing Machine Product Type: Paper Cutting Machine
Processing Typed: Paper Cutting Machine Max Width Mother Roll: 1100mm
Max Diameter Mother Roll: 1400mm Feeding Rolls Quantity: Four Rolls
High Light:

Full Automatic Paper Roll Cutting Machine

,

Paper Roll Cutting Machine A3

,

A4 Paper Cutting And Packing Machine

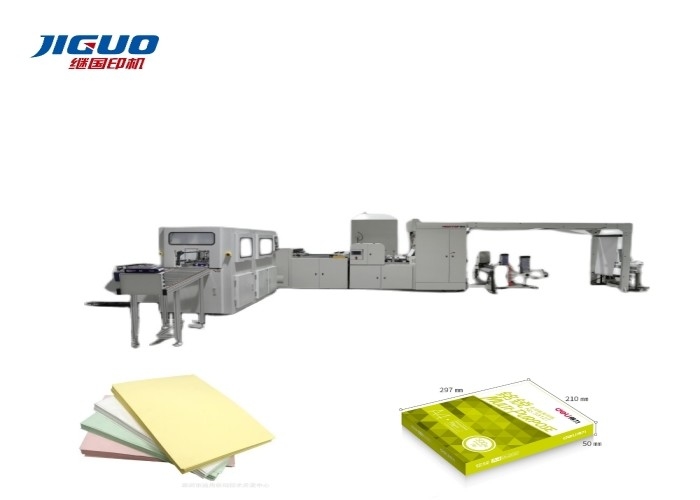

JIGUO ZWJ-1100 Full Automatic High Precision

Four Reels Sheeter And Packing Line A4 Paper Cutting And Packing Machine

A4 paper cutting and packing machine Introduction


Usage:
The model machine design to cut paper jumbo rolls to A4/A3 size sheets for copy paper,art paper,gsm range: 40-120gsm(one layer).


Performance And Characteristics

We adopt servo motor to control the length of cutting, This machine has electric and pneumatic control system, easy operating, high precision in cutting, working stable, low-noise. Frequency converter control motor speed with stable running, automatic counting, alarm and automatic-stop, Full automatic tension control. Web edge position automatic correct control by EPC system. Waste edge is blowing out of machine by fan automatically.

  • Adopts pneumatic shaft materials loading system with much easy operation and convenience.
  • It adopts servo motor for controlling constant-length cutting(precision:±0.2mm)
  • It adopts Japanese Panasonic PLC control, Kunlunpassty touching panel (screen operation).
  • Automatic to stack paper sheets to a pile(ream) which can be delivery to the automatic packaging machine by conveyor belt.

Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine 0

A4 paper cutting and packing machine technical parameter

Technical parameter
Max width mother roll 1100mm
Max diameter mother roll 1400mm
Max mother roll weight 1200KG
Feeding rolls quantityH Four rolls
Cutting speed 50-150times/min
Capacity 6Reams
Cutting type Guillotine knife
Cutting Size A4/A3
Cutting capability 70-120gsm
Cutting Precision ±0.2mm
Speed regulation control Frequency converter
Power input 380V,50HZ,3P



A4 paper cutting and packing machine Local introductio Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine 1


Full Automatic Paper Roll Cutting Machine A3  A4 Paper Cutting And Packing Machine 2
