Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine

Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine
Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine

Large Image :  Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ZWC-1700-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine

Description
Suitable Sheet: 50-500g/m2 Max.Diameter Of Paper: Max. 1650mm
Max.Width Of Paper: Max. 1700mm(67 〃 ) Total Power: 32KW
MetCutting Lengther Speed: 400-1600mm Cutting Accuracy: +/-0.4mm
Computerized: Yes Warranty: 1 Year
High Light:

32KW Paper Roll Cutting Machine

,

Cardboard Sheeter Paper Roll Cutting Machine

,

1650mm roll to sheet cutting machine

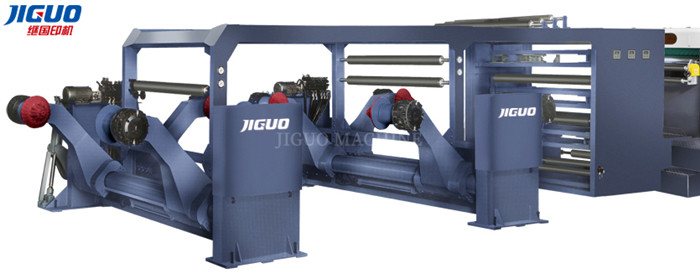

JIGUO ZWC-1700-4 (Four Roll) Cardboard Sheeter, Paper Roll To Sheet Cutting Machine



Paper Roll Sheeter is used to cut the paper roll into paper sheets. It adopts advanced technology of British and it is driven by AC servo motors, the high cutting speed reaches 300 cuts /min. And it can cut 4 paper rolls at one time. It is also equipped with automatic deflection rectify and antistatic device. The paper feeding and delivering units are automatic with the hydraulic system. The human and machine interface system could make operation become much easy and more convenient.



Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine 0



Specifications

PARAMETER
Model ZWC-1700-4 (Four Roll)
Suitable sheet 50-500g/m2
Max.Diameter of paper
Max. 1650mm(65 〃 )
Max.Width of paper Max. 1700mm(67〃 )
Total power
32KW
Cutting length
400-1600mm
Cutting accuracy +/-0.4mm
Max. cutting speed
300cuts/min
Max. cutting meter speed 300m/min
Atmospheric pressure 0.8MPa
Power supply
AC380V/220Vx50HZ
Total weight
17000kg
Machine Dimensions 17000×4200×2350mm



Schematic

Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine 1



Local display



Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine 2



Cardboard Sheeter Paper Roll Cutting Machine 1650mm Roll To Sheet Cutting Machine 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
