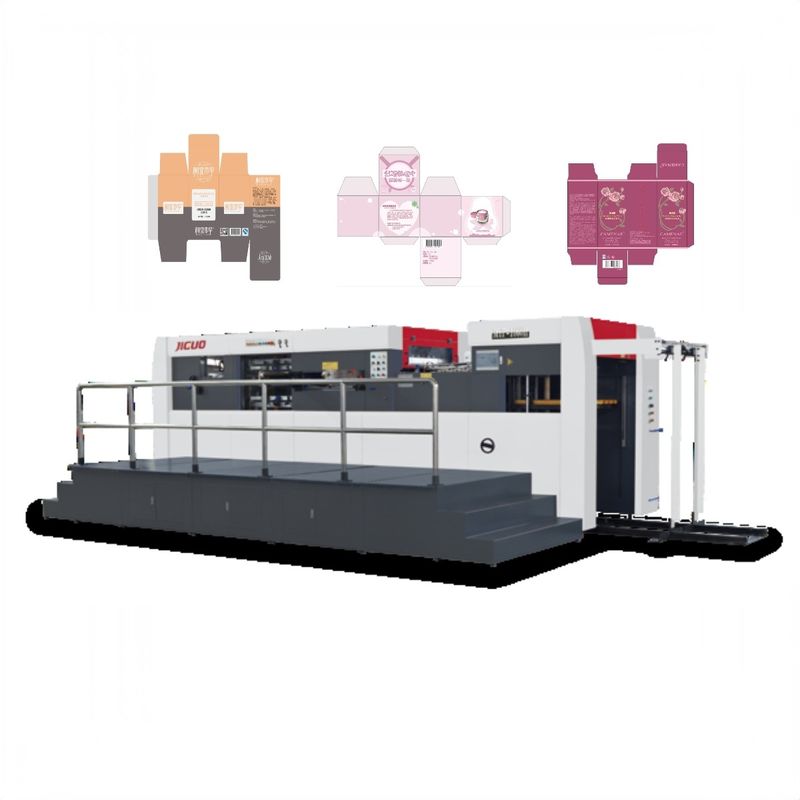

MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter

MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter
MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter
MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter

Large Image :  MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1060H Automatic Die Cutting And Stripping Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $140000 to $150000/1 Set
Packaging Details: Box or as your request
Delivery Time: 45days
Supply Ability: 1~50SET

MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter

Description
Name: JIGUO Automatic Die Cutting Machine With Stripping Type: Die Cutting Machine Stripping Mchine For Carton Box
Max.paper Size: 1060*760mm Min.paper Size: 400*360mm
Max. Cutting Speed: 7500s/h Weight: 18.5T
Overall Dimension: 7500X3950X2360mm Warranty: 1 Year
Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers Machine Type: Flat Die Cutting
High Light:

Automatic Creasing Die Cutting Machine

,

7500s/h Die Cutting Machine

JIGUO MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter For Carton Box



The advantages of flat die cutting machine are:



1. Wide range of application: cardboard above 250g and corrugated cardboard below 9mm can be processed.



2. All electrical components are controlled by PLC, running smoothly and starting quickly.



3. Exquisite processing technology: every process has been carefully processed.



4. Safer operation: photoelectric switches are installed at 17 places, with complete functions.



5. Higher work efficiency: matching with pre-press equipment, the efficiency is increased by 30%.



The automatic flat die-cutting machine is the key equipment for improving labor productivity in the post-press processing of printed and packaged products. It is not only an efficient, safe and high-quality die-cutting and molding equipment, but also an updated product of the "slot machine". , By the majority of packaging and printing enterprises of all ages.



With the development of packaging machinery, food packaging, gift packaging, and wine packaging are becoming more and more important. The shape of the packaging box is various, and the flat die-cutting machine is the earliest packaging machinery product used in the product packaging machinery. The cutting speed of the flat die-cutting machine is very fast. Compared with the previous die-cutting machine, the speed has been improved several times. The paper-cutting speed is the guarantee of the efficiency of the whole die-cutting machine; the traditional paper feeding method is to use The new type of pens adopts the automatic paper suction technology, which can achieve the characteristics of fast and accurate paper suction.

MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter 0



Products Description​ Of Automatic die cutting and stripping machine

PARAMETER
Model MYP-1060H
Max. sheet size 1060X760(mm)
Min. sheet size 400X360(mm)
Max. die cutting size 1040X750(mm)
Max.cutting speed 7500s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~4mm

Max.pressure 350T
Total power 24kw
Net weight 19T



Local Details Of Automatic die cutting and stripping machine

MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter 1



Die-cutting Unit

  • The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.

  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.



MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter 2

Paper Stripping Unit

  • By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting.

  • The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.

  • The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.

  • The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate.

  • The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping.



Application Of Automatic die cutting and stripping machine

MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter 3



MYP-1060H Carton Box Automatic Creasing Die Cutting Machine With Stripping Flatbed Die Cutter 4
