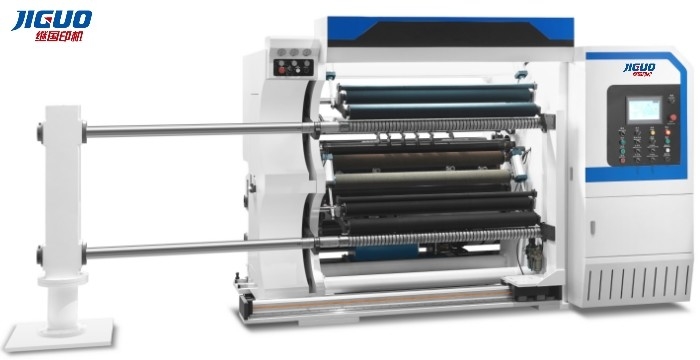

JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper

JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper
JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper

Large Image :  JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: JIGUO ZWS-500A Automatic Vertical Slitting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8000-100000/set
Packaging Details: wooden case
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper

Description
Condition: New Type: Slitting Rewinder
Computerized: Yes Place Of Origin: Hebei,China
Brand Name: JIGUO Name: ZWS-400B Automatic Slitting Machine
Warranty: 1 Year Certification: CE
High Light:

500m/min Slitting And Rewinding Machine

,

Bill Paper Slitting And Rewinding Machine

,

Cellophane Paper Slitting Rewinder

JIGUO ZWS-500A Automatic Vertical Slitting Machine Paper Roll Cutting Machine



Introduction



This machine is used for slitting and rewinding various large rolling materials such as paper,cellophane paper,bill paper,double-face adhesive tape,PVC etc.



1. The air-expansion shaft is used for winding, which makes the positioning of the paper tube accurate and easy;



2. The edge blanking system: steel-to-steel edge blanking, independent cylinder adjustment, easy to adjust, so that each layer of paper is not delaminated;



3. Horizontal paper unwinding Rack, pneumatic paper feeding, pneumatic wide belt feeding, each roll of base paper has an independent tension adjustment device;



4. Use front and rear jog switches to pull the base paper, which is easier and safer to operate;



JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper 0



 Automatic Slitting Machine Specifications

Model ZWS-500A-1100 ZWS-500A-1300 ZWS-500A-1500 ZWS-500A-1700
Max. Speed 500m/min
Slitting Width 30-1100mm 30-1300mm 30-1500mm 30-1700mm
Rewinding Diameter 600mm
Unwinding Diameter 800mm
Slitting Precision ±0.1mm
Loading Weight 1T
Dimension 4254×2300×1990 4454×2300×1990 4654×2300×1990 4854×2300×1990
Weight 3.8T 4T 4.3T 4.8T
Power 13KW 17KW 20KW 22KW
Power Supply 380V/50HZ
Applicable Materials PE/PET/BOPP/OPP/PVC/Self-adhesive paper/Kraft paper and other paper products


 Local introduction

Unwinding Unit



1) The unwinding device adopt hydraulic shelf-less loading



2) Automatic tension brake, when the coil diameter from large to small, it can adjust the tension automatically.

JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper 1

Waste Remove Device(Option)



This equipment use suction waste remove device as standard, the winding waste remove device as optional(as shown figure), it is more convenient to clean up the waste, and make the workshop more tidy.

JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper 2

Rewinding Device And Material Connection Aid



1) Rewinding part use slip shaft structure, according to the rewinding situation of different parts, the rewinding pressure can be adjusted. Air-shaft rewinding structure can be chosen as optional.

2) This equipment has material connection aid function, the position of the slitting material can be fixed when re-feeding, it can avoid the falling off and lead to re-feeding, which greatly saves the time of feeding.

3) This equipment with photoelectric position function, there is no need to re-measure the position when changing the paper roll.

JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper 3



JIGUO ZWS-500A Automatic Slitting And Rewinding Machine for Cellophane Paper 4
