JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic

JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic
JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic

Large Image :  JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ZWC-1700-2 High Speed Paper Cutter Automatic Roll To Sheet Paper Cutting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD80000-100000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic

Description
Name: Paper Cutter Automatic Roll To Sheet Paper Cutting Machine Suitable Sheet: 50-500g/m2
Max.Diameter Of Paper: Max. 1650mm Max.Width Of Paper: Max. 1700mm(67 〃 )
Total Power: 28KW Max. Cutting Meter Speed: 300m/min
Power Supply: AC380V/220Vx50HZ Total Weight: 11000kg
Condition: New Computerized: Yes
High Light:

300m/min Paper Cutting Machine

,

28KW Sheet Paper Cutting Machine

,

PLC Paper Roll Cutting Machine

JIGUO ZWC-1700-2 High Speed Paper Cutter Automatic Roll To Sheet Paper Cutting Machine

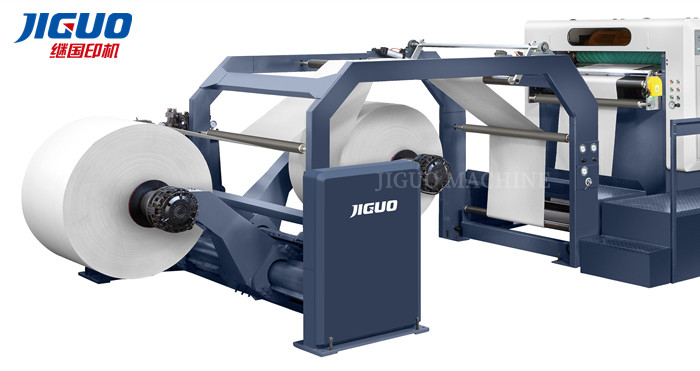

Introduction of Paper Cutter Automatic Roll To Sheet Paper Cutting Machine

The Roll Paper Sheet Cutter machine is one of the most powerful types of web slitting equipment. It has the characteristics of stable operation, convenient operation, fast speed, high precision, strong adaptability and high output. It can also be called a roll paper cutter, a high-speed slitting machine, and a high-speed cutting machine. It is widely used in papermaking, paper trade and printing industry.



JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 0

JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 1



Paper Cutter Automatic Roll To Sheet Paper Cutting Machine Specifications

PARAMETER
Model ZWC-1700-2 (Two Roll)
Suitable sheet 50-500g/m2
Max.Diameter of paper Max. 1650mm
Max.Width of paper Max. 1700mm(67〃 )
Total power
28KW
Cutting length
400-1600mm
Cutting accuracy +/-0.4mm
Max. cutting speed
300cuts/min
Max. cutting meter speed 300m/min
Atmospheric pressure 0.8MPa
Power supply
AC380V/220Vx50HZ
Total weight
11000kg
Machine Dimensions 12000×4200×2350mm



Paper Cutter Automatic Roll To Sheet Paper Cutting Machine Local introduction

JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 2  JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 3
Correct paper offset system
There are three correct paper offset modules,that meas the upper
paper will align the lower paper automatically while the all four reel
working at the same time.



JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 4
Sub-knife system(Selective accessories)
There are totally three sub-knife, knives for web slitting and web edge trimming,and is
equipped with a waste paper collector to discharge the waste paper.



JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 5
Antistatic device
Eliminate the static electricity on the paper, the flow-up operation of the paper more
smoothly.



JIGUO ZWC-1700-2 High Speed Roll To Sheet Paper Cutting Machine Automatic 6



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
