JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

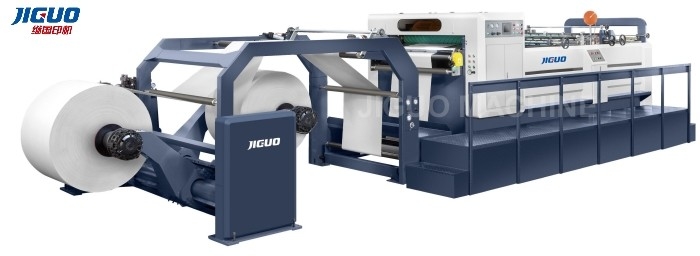

JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll

JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll
JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll

Large Image :  JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ZWC-1400-2 Paper Roll Cutting Machine (2 Roll)
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD60000-70000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll

Description
Name: Paper Cutting Machine Suitable Sheet: 50-500g/m2
Cutting Length: 400-1600mm Max.Diameter Of Paper: Max. 1650mm
Max.Width Of Paper: Max. 1400mm(55 〃 ) Cutting Accuracy: +/-0.4mm
Total Power: 25KW Max. Cutting Speed: 300cuts/min
Total Weight: 10000kg Machine Dimensions: 12000×3900×2350mm
Condition: New Computerized: Yes
Warranty: 1 Year Applicable Industries: Manufacturing Plant, Printing Shops
High Light:

300m/min Paper Roll Cutting Machine

,

2Roll Paper Cutting Machine

,

AC380V Paper Roll Cutting Machine

JIGUO ZWC-1400-2 Paper Roll Cutting Machine (2 Roll)



This series servo control paper roll to sheet cutting machine applies the advanced technology of Germany and UK. The computer control system uses KEB,servo motor from Germany and AC transducer from Japan, which is international top brand. The conveyor belt applies NITTA from Japan. The pneumatic vibrator adopts FINDEVA from Switzerland. The electrical system choose SCHNEIDER & OMRON, these high quality components can guarantee the paper sheeting cutting fast and very reliable. Germany made precise bearing and rotary cutting knife assure the high sheet cutting precision. The touch screen is simple and convenient for operation. The anti-curve system assures the paper flat and smooth to delivery. This sheeter machine is for high capacity paper converting which is widely use in the paper mill , printing and packaging industry.This model is most advanced model of paper sheeter in China.



Paper Roll Cutting Machine Specifications

PARAMETER
Model ZWC-1400-2 (Two Roll)
Suitable sheet 50-500g/m2
Max.Diameter of paper Max. 1650mm
Max.Width of paper Max. 1400mm(55 〃 )
Total power
25KW
Cutting length
400-1600mm
Cutting accuracy +/-0.4mm
Max. cutting speed
300cuts/min
Max. cutting meter speed 300m/min
Atmospheric pressure 0.8MPa
Power supply
AC380V/220Vx50HZ
Total weight
10000kg
Machine Dimensions 12000×3900×2350mm



Paper Roll Cutting Machine Mechanical details
Process flow and equipment
According to the technique of the ZWC product, the specification is intended to
describe the functional requirements of automatic cutting equipment,The main process
flow is:Unwinding→Inserting→Traverse Cutting→Convey→Collect

JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll 0

Paper Roll Cutting Machine Local introduction

JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll 1  JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll 2
1. Automatic Roll Unwinding Unit
Automatic Roll Unwinding Unit is Equipped with Hydraulic Shaftless Roll Stands two
clamps and Braking system, which are Easy-to-use During Roll Manipulations





JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll 3  JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll 4
2. Prevent curling system
Adjusting the roll paper due to the curl of the paper, make the paper smooth after
cutting





JIGUO ZWC-1400-2 Paper Roll Cutting Machine 2 Roll 5
3. Knife holder and Cutting blade
A total of two knives, one fixed on the base ,the other is on the holder for rolling
cutting



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
