JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm

JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm
JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm

Large Image :  JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-800H Automatic Die-cutting And Stripping Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $110000 to $120000/1 Set
Packaging Details: Box or as your request
Delivery Time: 45days
Supply Ability: 1~50SET

JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm

Description
Name: Automatic Die-cutting With Stripping Machine Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Turkey, Viet Nam, Saudi Arabia, Pakistan, India Type: Die-cutting Machine
Max. Cutting Speed: 8500s/h Max.Diecutting Size: 790x590mm
Max.Pressure: 250T Power: 14.5KW
Weight: 12T Voltage: 380V 50Hz
Overall Dimension: 6400X3400X2000mm Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
Computerized: Yes Place Of Origin: Hebei,China
High Light:

14.5KW Automatic Die Cutting Machine

,

Die Cutting Stripping Machine 810x610mm

,

8500s/h Die Cutting Stripping Machine

JIGUO MYP-800H Automatic Die-Cutting With Stripping Machine 810x610mm

Machine introduction

The automatic die-cutting with stripping machine is one of the main equipments for post-press processing. Its work efficiency and processing accuracy are high, and it is very popular among users. It has the following characteristics:


Perfect design, Fine assembly, Good stability, Strong safety and Low noise.



* High-strength gripper row, advanced open-grip gripper mechanism can adapt to various types of corrugated cardboard. The front and rear positioning and side positioning mechanisms ensure the die-cutting accuracy of the paper.



* The worm gear and the specially designed crankshaft connecting rod mechanism are connected in the form of bearing bushes to reduce the movement gap, avoid the impact of the worm gear and the worm, run smoothly, the die-cutting pressure is large, and it has the function of high-point pressure holding. The worm gear is made of excellent wear resistance. Made of aluminum bronze for long service life.



* Non-stop paper feeding and auxiliary paper delivery mechanism, shorten auxiliary time and improve work efficiency.



* Adopt advanced ternary cam indexing mechanism, pressure regulating device, pneumatic locking plate, pneumatic sampling, overload protection device. Adopt imported high-precision chain drive, imported pneumatic clutch.



* The paper feeding adopts the leading edge feeding method, and the secondary positioning mechanism is applied, which reduces the requirements for the paper. Workers' hands are kept away from the die-cutting part of the machine to ensure the safety of workers.





* The pneumatic locking mechanism can make the plate change more flexible and convenient, and the plate frame can be fixed more firmly, accurately and time-saving.



* Programmable controller and man-machine interface, digital display of the working speed of the machine, the total running time of the number of processed sheets, and the fault display of the machine make the troubleshooting operation very convenient. Realize
automatic control and real-time monitoring of feeding, die-cutting, and delivery, and cooperate with safety devices in each part to make operation safe and reliable, machine adjustment, and troubleshooting convenient and fast.



* High-precision gap mechanism, high die-cutting accuracy and stable operation.



* Automatic paper delivery and aligning device make delivery convenient and neat.



* The suspension function of die-cut steel plate can easily push the steel plate in and out.



* Photoelectric level control of double sheets, skew sheets and empty sheets ensures accurate and stable paper and reduces waste.



* Modular design of electrical control, using imported electrical components to ensure accurate control and good reliability.



* The circulating cooling oil supply system ensures that the moving parts of the machine are well lubricated and durable.



* Imported pneumatic clutch, stable and reliable combination and separation, small braking angle, can transmit large torque.

JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm 0



Automatic Die-cutting With Stripping Machine Products Description​

PARAMETER
Model MYP-800H
Max. sheet size 810X610(mm)
Min. sheet size 320X240(mm)
Max. die cutting size 790X590(mm)
Max.cutting speed 8500s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~4mm

Max.pressure 250T
Total power 14.5kw
Net weight 12T
Overall dimension

6400X3400X2000mm

Air requirements 0.8Mpa,>0.36m³/min



Automatic Die-cutting With Stripping Machine Local Details

JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm 1

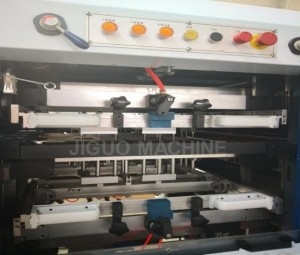

Paper Stripping Unit

  • By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting.
  • The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.
  • The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.
  • The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate.
  • The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping.
JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm 2

Electrical Control Unit

  • The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
  • The human-machine interface can display various working conditions, indicate fault positions and give solutions.
  • The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.



Automatic Die-cutting With Stripping Machine Application

This automatic die-cutting machine can be equipped with a waste removal function, which

is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper

Boxes,Corrugated Boxes,Adhensive Stickers,etc.

JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm 3





JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm 4



JIGUO MYP-800H Automatic Die Cutting Stripping Machine 810x610mm 5

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
