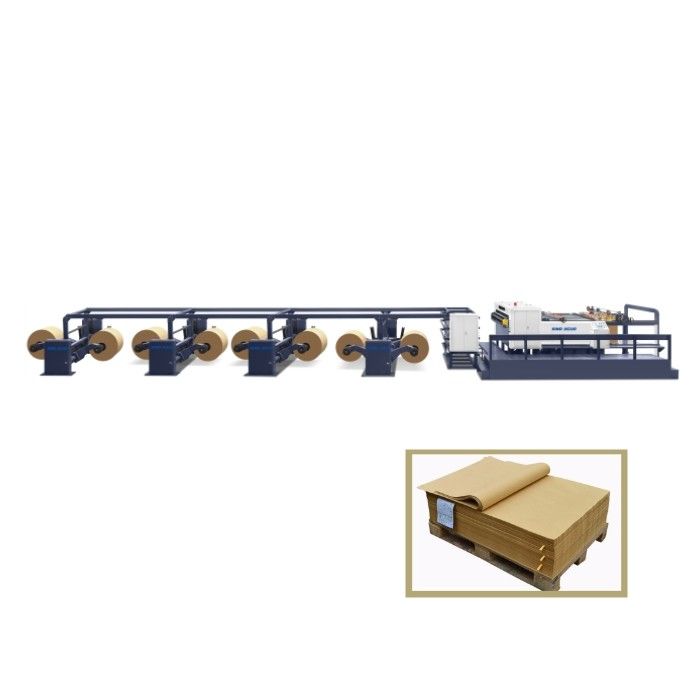

ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll)

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll)

ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll)
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll)

Large Image :  ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll)

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ZWC-1400-6 Paper Roll Cutting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-110000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll)

Description
Name: Paper Roll Cutting Machine Suitable Sheet: 50-500g/m2
Max.DMax. 1650mmiameter Of Paper: Max. 1650mm(65 〃 ) Max.Width Of Paper: Max. 1400mm(55 〃 )
Max. Cutting Speed: 300cuts/min Max. Cutting Meter Speed: 300m/min
Atmospheric Pressure: 0.8MPa Cutting Length: 400-1600mm
Power Supply: AC380V/220Vx50HZ Cutting Accuracy: +/-0.4mm
Computerized: Yes Core Components: Motor, PLC
Type: Paper Cutting Machine Place Of Origin: Hebei,China
High Light:

Paper Roll Cutting Machine 1650mm

,

Six Roll Paper Roll Cutting Machine

,

1650mm Roll Paper Sheet Cutter Machine

JIGUO ZWC-1400-6 Roll Paper Sheet Cutter Machine (Six Roll)



Machine introduction Paper Roll Cutting Machine



ZWC-1400-6 Paper Roll Cutting Machine high precision double helix knife high speed roll paper cutting machine apply the advanced technology of Germany and Italy , combining with the rich experience and leading manufacturing technology of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double helix knife design , the edge of cutting paper is smooth without crude or powder . With the feature of high cutting precision make sure paper pile after cutting can be directly used on printing machines , which help to reduces the production cost and improve production efficiency. It is the most popular and ideal paper sheet cutting machine in paper processing and printing industry at present .



ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 0



Specifications Paper Roll Cutting Machine

PARAMETER
Model ZWC-1400-6(Six Roll)
Suitable sheet 50-500g/m2
Max.Diameter of paper Max. 1650mm(65 〃 )
Max.Width of paper Max. 1400mm(55 〃 )
Cutting length
400-1600mm
Cutting accuracy +/-0.4mm
Max. cutting speed
300cuts/min
Max. cutting meter speed 300m/min
Atmospheric pressure 0.8MPa
Power supply
AC380V/220Vx50HZ



Details Images Paper Roll Cutting Machine

1. Automatic Roll Unwinding Unit
Automatic Roll Unwinding Unit is Equipped with Hydraulic Shaftless Roll Stands two
clamps and Braking system, which are Easy-to-use During Roll Manipulations
                                                                                                   ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 1
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 2
2. Prevent curling system
Adjusting the roll paper due to the curl of the paper, make the paper smooth after cutting

ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 3

ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 4



3. Correct paper offset system
There are three correct paper offset modules,that meas the upper paper will align the lower paper automatically while the all four reel
working at the same time.
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 5
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 6



4. Sub-knife system(Selective accessories)
There are totally three sub-knife, knives for web slitting and web edge trimming,and is equipped with a waste paper collector to discharge the waste paper.
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 7



5. Knife holder and Cutting blade
A total of two knives, one fixed on the base ,the other is on the holder for rolling cutting.
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 8



6. Automatic squaring system
Automatically adjust the paper to square.
ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 9



7.Antistatic device

Eliminate the static electricity on the paper, the flow-up operation of the paper more smoothly



ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 10



ZWC-1400-6 Paper Roll Cutting Machine 1650mm Roll Paper Sheet Cutter Machine (Six Roll) 11



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
