580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed BMY 1680A

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

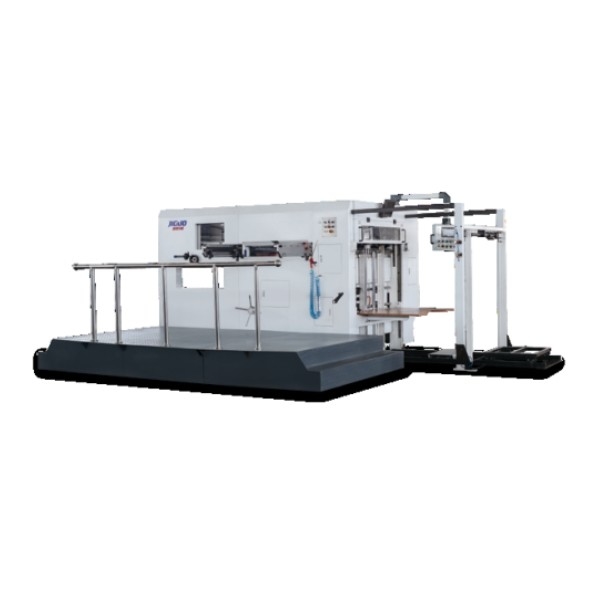

580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed BMY 1680A

580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A
580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A

Large Image :  580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed BMY 1680A

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: BMY-1680A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $100,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed BMY 1680A

Description
Max. Paper Size: 1680×1235mm Min. Paper Size: 580×500mm
Max. Cutting Size: 1660×1220mm Max. Pressure: 480T
Weight: 18T Power(w): 16.5KW
Dimension(l*w*h): 6750*5300*2500mm Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Type: Die-cutting Machine,Paper Cutting Machine
Computerized: Semi-automatic Name: Semi Automatic Die Cutting Machine
High Light:

Semi Automatic Die Cutting Machine

,

Paper Semi Automatic Die Cutting Machine

,

Flat Bed Die Cutting Machine

 JIGUO Semi-Automatic Flat Bed Die Cutting Machine

Machine introduction



Semi-automatic die-cutting and creasing machine is the main equipment for making color boxes, paper boxes and paper labels.

This machine is equipped with high-strength jaw opening teeth, integral swing leading, automatic derivation, high-precision spacer structure, pneumatic locking plate, pneumatic clutch, overload protection, automatic paper delivery, so that the paper feeding distance is shorter, the positioning accuracy is high, and the die-cutting is stable. , The paper is neatly received, and it can also be die-cutting without jaws.



580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 0



Products Description​

PARAMETER
Model BMY-1680A
Max. sheet size 1680X1235(mm)
Min. sheet size 580X500(mm)
Max. die cutting size 1660X1220(mm)
Max.cutting speed 4200s/h
Sheet thickness

200-2500g/㎡(Card paper)

<8mm(corrugated paper)

Max.pressure 480T
Total power 16.5kw
Net weight 18T
Overall dimension 6750X5300X2500mm
Air requirements 0.8Mpa,>0.36m³/min



System introduction



580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 1



580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 2                          580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 3

580×500mm Paper Semi Automatic Die Cutting Machine Flat Bed  BMY 1680A 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
