Product Details:
|
| Max. Paper Size: | 1320×960mm | Min. Paper Size: | 450×400mm |
|---|---|---|---|
| Weight: | 16T | Power(w): | 14KW |
| Dimension(l*w*h): | 7000*4530*2260mm | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Type: | Die-cutting Machine,Paper Cutting Machine |

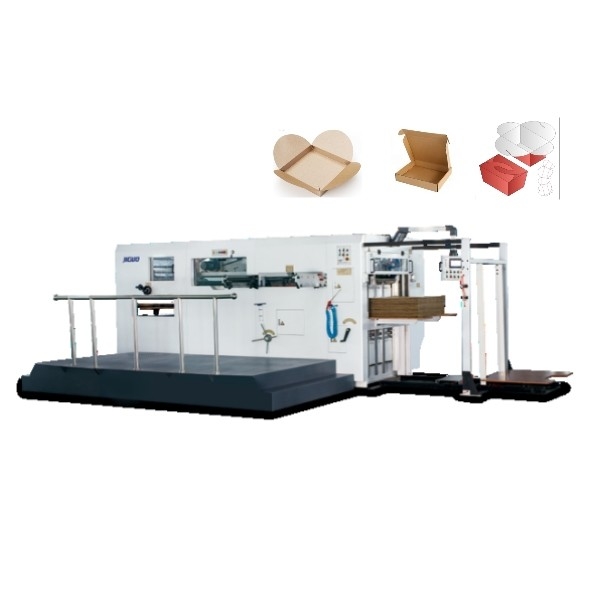

| Computerized: | Semi-automatic | Name: | Semi Automatic Die Cutting And Stripping Machine |
| Highlight: | Semi Automatic Die Cutting Machine,Flatbed Semi Automatic Die Cutting Machine,Flatbed cardboard box die cutting machine |
||
Feature:
BMY-1320P is a classic series with the following functions on a semi-automatic basis die-cutting machine is a pioneering work of the family. Semi-stripping system, automatic cleaning three side and middle sections, clean and greatly increase efficiency. Demoulding mold adopts central
positioning system, automatic cutting, upper demoulding adopts electronically controlled lifting device.
| PARAMETER | |
| Model | BMY-1320P |
| Max. sheet size | 1320X960(mm) |
| Min. sheet size | 450X400(mm) |
| Max. die cutting size | 1300X940(mm) |
| Max.cutting speed | 6000s/h |
| Sheet thickness |
200-2000g/㎡(Card paper) ＜8mm(corrugated paper) |
| Max.pressure | 380T |
| Total power | 14kw |
| Net weight | 16T |
| Overall dimension | 7000X4530X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Details:
1) Main chain drive:
The main drive system adopts crank worm gear pair and special crankshaft connecting rod the mechanism is connected by a bearing shell, which can reduce the locomotive clearance, avoid impact and ensure smooth operation and high die cutting pressure.
2) Electronic control part:
The electronic control system adopts PLC control. There are various safety guards sound and light alarm and automatic shutdown when an accident occurs to protect the safety of people and machines.
3) Die cutting and creasing:
Reliable overload protection mechanism to separate the active and driven parts automatically in the event of an overload accident. Unique die-cut frame prevents effectively prevent the die-cutting board from falling and separating.
4) Strip part:
Male and female molds can be inserted into the machine from the operating side to shorten set time and greater security. Centerline system is compatible with Centerline II for fast replacing and shortening setup time 3 side and middle sections are stripped to ensure more work efficiency
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
