Semi Automatic Corrugated Carton Die Cutting Machine Box Making

Semi Automatic Corrugated Carton Die Cutting Machine Box Making
Semi Automatic Corrugated Carton Die Cutting Machine Box Making Semi Automatic Corrugated Carton Die Cutting Machine Box Making Semi Automatic Corrugated Carton Die Cutting Machine Box Making Semi Automatic Corrugated Carton Die Cutting Machine Box Making

Large Image :  Semi Automatic Corrugated Carton Die Cutting Machine Box Making

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: BMY-1320A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $110000 to $120000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Semi Automatic Corrugated Carton Die Cutting Machine Box Making

Description
Max. Paper Size: 1320×960mm Min. Paper Size: 450×400mm
Power(w): 14KW Weight: 14.5T
Dimension(l*w*h): 5800*4530*2260mm Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Type: Die-cutting Machine,Paper Cutting Machine
Computerized: Semi-automatic Name: Semi Automatic Die Cutting Machine
Highlight:

corrugated carton die cutting machine

,

corrugated carton die cutting machine

,

Corrugated Carton Box Making Machine

JIGUO Semi-Automatic Die Cutting And Creasing Machine Corrugated Carton Box Making Machine



Product Description


Complete design, accurate installation, high stability, high security, low noise.


Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.


The high precision intermittent mechanism, high cutting precision, running steadily.


Adopt manual feeding paper


Automatic pressure adjust system, pressure digital display.

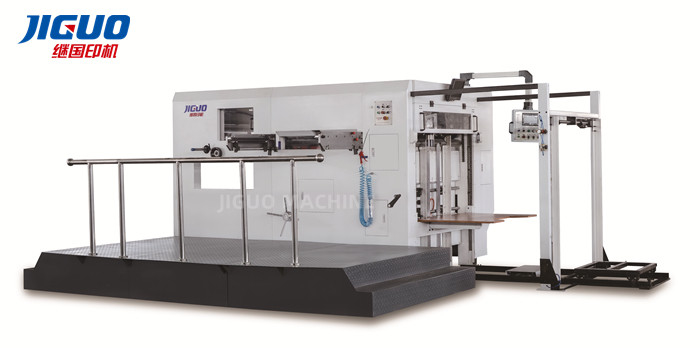

Semi Automatic Corrugated Carton Die Cutting Machine Box Making 0

Products Description​

PARAMETER
Model BMY-1320A
Max. sheet size 1320X960(mm)
Min. sheet size 450X400(mm)
Max. die cutting size 1300X940(mm)
Max.cutting speed 6000s/h
Sheet thickness

200-2000g/㎡(Card paper)

<8mm(corrugated paper)

Max.pressure 380T
Total power 14kw
Net weight 14.5T
Overall dimension 5800X4530X2260mm
Air requirements 0.8Mpa,>0.36m³/min



Components and Features



1. Die-cutting part: transmission structure, intermittent structure, pneumatic clutch brake.



Transmission structure: The new transmission design realizes high-speed precision die-cutting.The main drive adopts worm gear and specially designed crankshaft connecting rod structure,the bearing connection reduces the movement space and avoids the impact of the worm gear worm, high die cutting pressure, with high pressure action. 4 corners of moving the platform is equipped with a decompression buffer spring to reduce machine wear and the machine runs more smoothly.


Intermittent structure: using high-precision parallel ternary cam indexing structure, the cam curve is special design, large swing angle, more stable operation of the gripper.


Pneumatic clutch brake: control transmission torque by adjusting air pressure, low noise and good performance braking performance. Automatic shutdown when the machine is overloaded to avoid accident happens.



2. Electronic control part: motor, PLC and man-machine interface, electronic control system,various safety protection devices.


Motor: Imported Fuji variable frequency stepless speed regulation motor is used to make the main motor energy-saving,

Low noise. The take-up gear motor is imported from Taiwan.​​​

Brake geared motor, high safety performance, long service life and low running noise.



PLC and man-machine interface: digital display machine working speed and status,the main motor is controlled by the frequency converter, and the stepless speed regulation makes the operation more stable. The man-machine interface display system can display various working conditions,the fault is located in a timely manner and a solution is proposed.



Electrical control system: microcomputer control process automatic control, real-time detect from feeding, feeding, die-cutting, and delivery.



Various safety protection devices: the horn alarms and turns off when a problem occurs the machine runs automatically to ensure personal safety.



Semi Automatic Corrugated Carton Die Cutting Machine Box Making 1



Semi Automatic Corrugated Carton Die Cutting Machine Box Making 2

Semi Automatic Corrugated Carton Die Cutting Machine Box Making 3

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
