2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning

2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning
2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning

Large Image :  2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TY-25A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-7000/set
Packaging Details: Cartons or as requirements
Delivery Time: 1 Day
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Day flute paper waste stripper/Die Cutter Waste Stripper

2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning

Description
Driven Type: By Air Compressor Air Pressure: 0.65Mpa
Core Components:: Engine, Motor Usage:: For Cardboard, Corrugated Board Waste Side Strip
Key Selling Points: Easy To Operate Driven Type:: Pneumatic
Voltage: 380V/220V Function:: For Waste Paper Stripping Machine
High Light:

2500RPM Die Cutting Stripping Machine

,

CE Pneumatic Die Cutting Stripping Machine

,

carton box Pneumatic Stripping Machine

JIGUO TY-25A Pneumatic Stripping Machine die cutting stripping carton box waste cleaning



Product Description

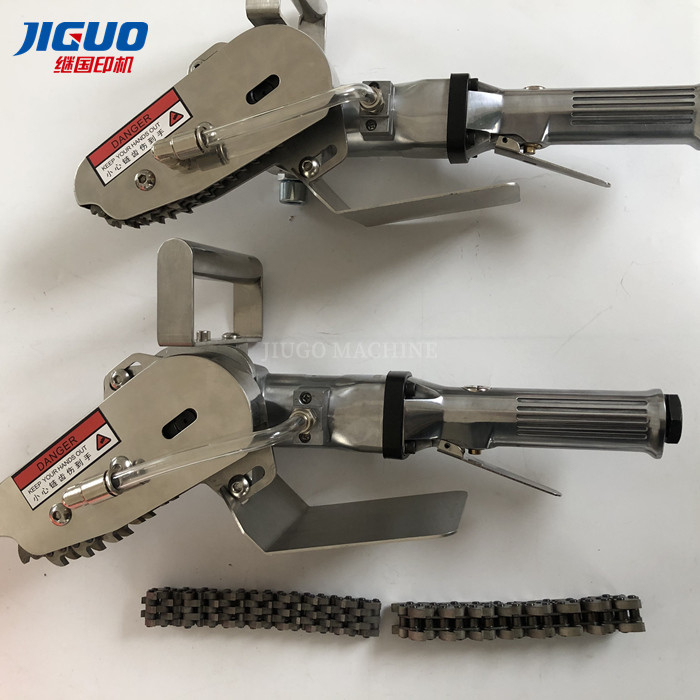

Pay attention to the chain selection method:
Shoulder small teeth - suitable for 150-1000g white cardboard box, etc., waste side is less than 1 cm;

Medium tooth-suitable for more than 150g white cardboard color box, corrugated paper various specifications, pit paper, etc., waste edge width of 8mm or more (recommended to use this specification, a wide range of uses)



Pneumatic stripping machine for scale and precautions:
1. Firstly, the paper should be piled up in order to eliminate the waste. The four sides are flush, and the four sides need to have a knife edge. The spacing between the knife edge and the knife edge is suitable for the paper to be easily stacked. The knife edge is properly organized to form a gap, so that the waste edge is connected with the product. It is necessary to use z5mm when clearing the edge and make a break.



2. Applicable paper scale: 200g/m-500g/m cardboard, single/double pit paper, double-pitched crepe paper.



Pneumatic waste disposal machine application tips:
1. The user installs the air compressor by himself. In order to make the machine work safely for a long time, please input the pressure of the compressed air of the machine0.65Mpa, and through boring disposal, it is recommended that the customer device use the air filter combination (two pieces) to connect to the air compressor output.



2. Always remove paper dust or dust adhering to the gap of the machine to keep the machine working properly.



Pneumatic waste disposal machine application instructions:
1. Pneumatic tools are not maintained in maintenance.



2. Pneumatic stripper is different from other pneumatic tools. After one week of running-in period, and always adhere to the unimpeded sliding of the chain and sprocket, the chain is given every half day. Add a few drops of gear oil to reduce the conflict, and then extend its application time.



3. Firstly, the machine is connected with the gas source to ensure that the air pressure is 6-8 kg, and the air pipe demand is 8*12M/M.



4. Before the air pressure is not opened, can the chain be freely rolled by hand, otherwise it can not be used. After adjusting the direction of the paper-cutting machine, fix the locking screw so that it cannot swing.



5. Every day before and after work, you must drop three to four drops of special oil for pneumatic tools from the air inlet and idle for 2-3 seconds.



Advantages
1. Simple operation, stripping easy and fast.



2. The whole pile paper board waste stripping, to avoid tearing and damage to finished products.



3. The pasting part of paper will not be damaged after stripping, it will improve the efficiency ofpasting box.



4. Smooth production process, improve efficiency.



5. Reduce manual work intensity, improve process efficiency.



2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 0





Products Description​



PARAMETER
Model TY-25A
Driven type By Air compressor
Air Pressure 0.65Mpa
Packaging type
Carton/ Paper/Cardboard/Paperboard/Solid Board/
Corrugated board,etc ≤ 15mm
Voltage 380V/220V
Scratch paper frequency 2500RPM
Speed

10 times more than manual

Machine Dimension
450*180*130mm
Total Weight 6.7 KG

2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 1

2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 22500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 3



2500RPM Pneumatic Die Cutting Stripping Machine Carton Box Waste Cleaning 4



FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.



2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .



3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.



4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply cost spare parts and free maintenance knowledge .



5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone / on site technical support / on site service / preventive maintenance also training again.



6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
