One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine

One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine
One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine

Large Image :  One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ZWC-1700-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine

Description
Suitable Sheet: 50-500g/m2 Max.Diameter Of Paper: Max. 1650mm(65 〃 )
Max.Width Of Paper: Max. 1700mm(67 〃 ) Total Power: 25KW
Max. Cutting Speed: 300cuts/min Max. Cutting Meter Speed: 300m/min
Power Supply: AC380V/220Vx50HZ Atmospheric Pressure: 0.8MPa
Total Weight: 10000kg Condition: New
Computerized: Yes Warranty: 1 Year
High Light:

One Paper Roll Cutting Machine

,

1650mm Paper Roll Cutting Machine

,

JIGUO paper sheet cutter machine

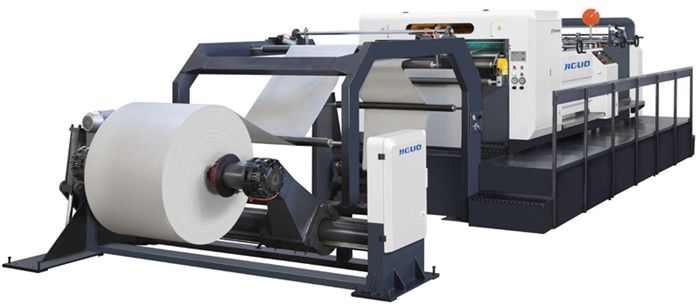

ZWC-1700-1 (One Roll) Roll Paper Sheet Cutter Machine Paper Roll To Sheet Cutting Machine



Roll Sheet Cutting Machine / Paper cutting machine



1. High precision single knife cutting machine



2. Paper prism adjustment system



3. Static elimination equipment



4. Intermediate slitting and waste collection system



5. Automatic counting and labeling equipment



6. Roll paper conveying equipment (tons (including 1 pair of rail cars)



7. Automatic paper cutter and delivery machine



8. Electrical control system



9. Drive motor system



10. Machine accessories



11. Double-arm hydraulic shaftless paper holder



12. Automatic guide and paper tension controller



13. Automatic vacuum equipment



14. Operating system: operator LCD panel



15. Main drive system: servo motor

One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine 0



Specifications

PARAMETER
Model ZWC-1700-1(One Roll)
Suitable sheet 50-500g/m2
Max.Diameter of paper Max. 1650mm(65 〃 )
Max.Width of paper Max. 1700mm(67〃 )
Total power
25KW
Cutting length
400-1600mm
Cutting accuracy +/-0.4mm
Max. cutting speed
300cuts/min
Max. cutting meter speed 300m/min
Atmospheric pressure 0.8MPa
Power supply
AC380V/220Vx50HZ
Total weight
10000kg
Machine Dimensions 9000×4200×2350mm



One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine 1



One Paper Roll Cutting Machine Automatic Paper Roll To Sheet Cutting Machine 2



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
