Product Details:
|
| Suitable Sheet: | 50-500g/m2 | Max.Diameter Of Paper: | Max. 1650mm |
|---|---|---|---|
| Max.Width Of Paper: | Max. 1400mm(55 〃 ) | Total Power: | 23KW |
| Cutting Length: | 400-1600mm | Cutting Accuracy: | +/-0.4mm |
| Max. Cutting Speed: | 300cuts/min | Max. Cutting Meter Speed: | 300m/min |
| Power Supply: | AC380V/220Vx50HZ | Condition: | New |
| Computerized: | Yes | Warranty: | 1 Year |
| High Light: | 300m/min Paper Roll Cutter,1400mm Width Paper Roll Cutter,300m/min Paper Sheet Cutter Machine |
||

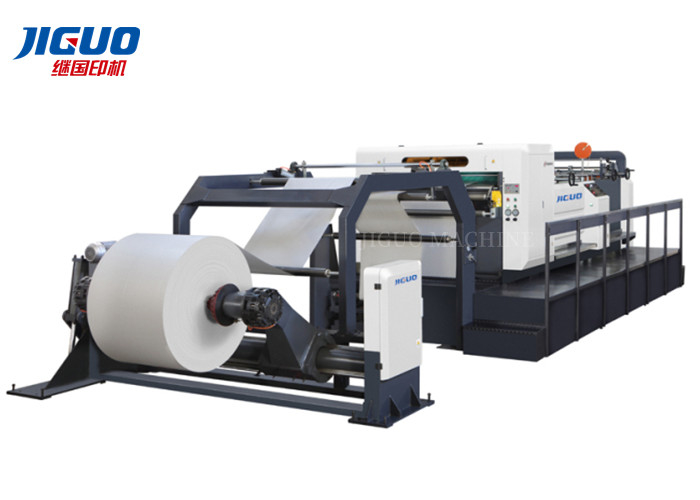

ZWC-1400-1 (One Roll) Roll Paper Sheet Cutter Machine Paper Roll Cutter
High Speed Paper Sheet Cutting Machine ZWC-1400-1
Roll to sheet Paper Sheeter ZWC-1400-1
Servo precision high-speed sheet cutting machine ZWC-1400-1 adopts advanced technology from Germany and Britain. The machine computer control system adopts international top brand servo motor and AC frequency converter. The conveyor belt adopts Japan NITTA, the pneumatic vibrator adopts Switzerland FINDEVA, and the electrical system adopts Schneider & Omron. It resulted in cutting the paper so fast and stable. German precision bearings and cutting knives ensure high cutting precision, touch-type computer screen controller is easy to operate, and anti-bending frame ensures smooth paper. This machine is a very popular paper processing machine in the papermaking and printing industries.
The standard configuration
High Precision Single Knife Cutting Machine
Paper Prism Adjustment System
Static elimination equipment
Intermediate slitting and waste collection system
Automatic counting and label insertion device
paper conveying equipment
Automatic paper cutter and delivery machine
drive motor system
electrical control system
machine accessories
Auto guide and paper tension controller
Operating System: Operator LCD Panel
Main drive system: AC servo motor
Specifications
| PARAMETER | |
| Model | ZWC-1400-1(One Roll) |
| Suitable sheet | 50-500g/m2 |
| Max.Diameter of paper | Max. 1650mm(65 〃 ) |
| Max.Width of paper | Max. 1400mm(55 〃 ) |
| Total power |
23KW
|
|
Cutting length
|
400-1600mm |
| Cutting accuracy | +/-0.4mm |
| Max. cutting speed |
300cuts/min
|
| Max. cutting meter speed | 300m/min |
| Atmospheric pressure | 0.8MPa |
|
Power supply
|
AC380V/220Vx50HZ |
|
Total weight
|
9000kg |
| Machine Dimensions | 9000×3900×2350mm |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
