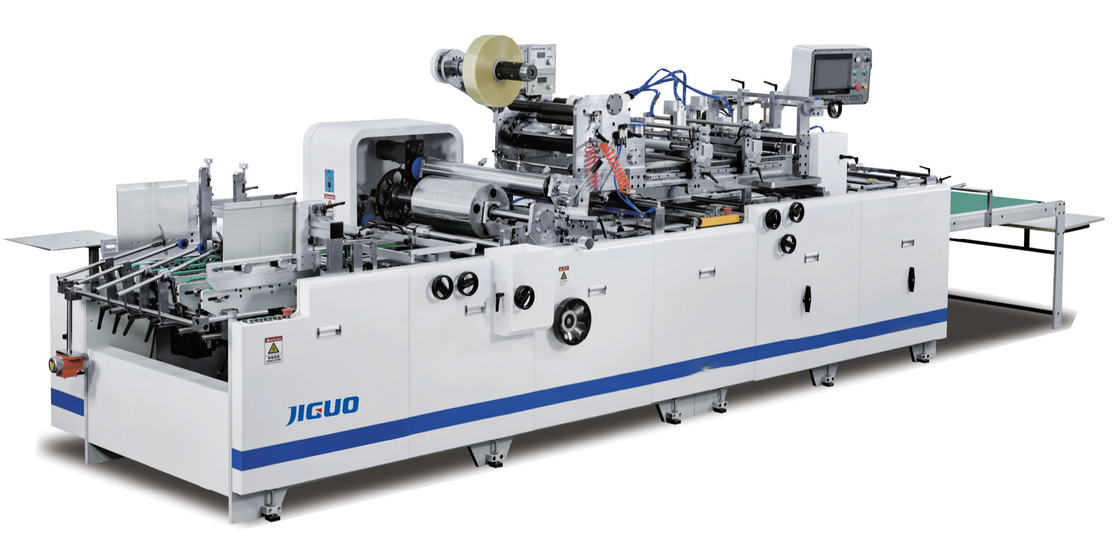

Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine

Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine
Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine

Large Image :  Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-920L
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-500000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine

Description
Max. Paper Size: 900×680mm Min. Paper Size: 150×150mm
Max. Film Size: 380×300mm Min. Film Size: 50×50mm
Total Power: 10.5Kw Total Weight: 3200kg
Overall Dimensions: 7000*1570*1700mm Machine Speed: Over 8000 Sheets/hour
Power Voltage: 380V/50HZ(3Phase) Warranty: 1 Year
Product Type: Box Window Patching Machine Condition: New
High Light:

Automatic carton box pasting machine

,

Paper Tissue carton box pasting machine

,

150×150mm paper window filming machine

TC-920L Fully Automatic Paper Tissue Box Corner Cutting Creasing Window Patching Machine



TC-920L automatic window sticking machine, this machine is intermittent positioning point-to-point positioning film. Advantages: high precision, simple and convenient mechanical manual adjustment. Paper feeding and film feeding are controlled by servo motors respectively, and the rear segmented paper delivery belts are independently driven by stepper motors, with adjustable stack spacing and batch counting function. The delivery belt of this machine adopts vacuum adsorption. It has the function of automatic lifting and lowering of the gluing section when there is no paper, and can follow the mark to punch the printed film. This machine adopts PLC computer control, which has the characteristics of high precision, maintenance-free, abnormal operation protection and so on. It is suitable for local gluing and pasting of cardboard and corrugated paper, and is suitable for PVC, PET, APET and other films.

Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine 0



Specifications

PARAMETER
Model TC-920L
Max. Paper Size
900×680mm
Min. Paper Size 150×150mm
Max. film Size
380×300mm
Min. film Size
50×50mm
Suitable Paper Thickness
Cardboard:200 ~ 2000g/ ㎡
Corrugated board:1-6mm
Film Thickness
0.1 ~ 0.3mm
Positioning Accuracy Top/bottom±0.5mm left/right±0.1mm
Machine Speed
Over 8000 Sheets/hour
Power Voltage
380V/50HZ(3Phase)
Power
10.5KW
Total Weight
3200KG
Overall Dimension 7000*1570*1700mm



Major Function



1. Cross-cut film + single-group laminating machine


2. Servo motor feeding paper


3. Servo motor feeding film


4. Delivery stepper with batch counting


5. Paper vacuum suction conveying


6. Double/empty gluing automatically rises


7. High-precision point-to-point positioning


8. Films with indentation and chamfering


9. Film printed side tracking label


10. Perforated film


11. Transverse creasing film (optional)


12. Film constant temperature leveling system (optional)





Local Display



Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine 1



Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine 2

Automatic Carton Box Pasting Machine 150×150mm Paper Tissue Window Filming Machine 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
