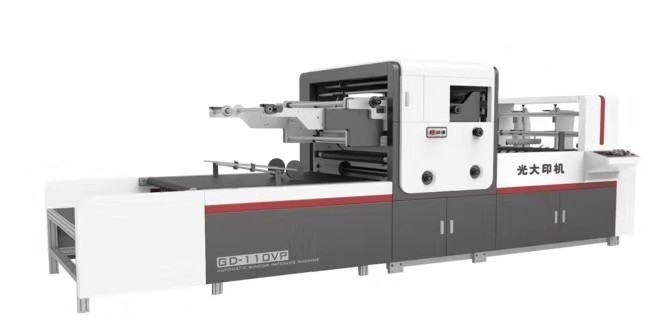

10000s/H Automatic Window Patching Machine Paper Film Stick Machine

10000s/H Automatic Window Patching Machine Paper Film Stick Machine
10000s/H Automatic Window Patching Machine Paper Film Stick Machine 10000s/H Automatic Window Patching Machine Paper Film Stick Machine 10000s/H Automatic Window Patching Machine Paper Film Stick Machine

Large Image :  10000s/H Automatic Window Patching Machine Paper Film Stick Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-760AC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD25000-70000/set
Packaging Details: wrapping film
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

10000s/H Automatic Window Patching Machine Paper Film Stick Machine

Description
Max. Paper Size: 760*600mm Min. Paper Size: 150*150mm
Max. Film Size: 460*380mm Min. Film Size: 30*40mm
Film Sheet Thickness: 0.03-0.3mm Max. Working Speed: 10000s/h (B/C-4500s/h)
Cardboard: 200-600g/m² Corrugated Paper: ≤5mm
Processing Type: Window Patching Machine Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V/220V 3 Phase
Output Per Hour: 5000 - 18000 Pieces Type: Cardboard And Corrugated Paper Box Window Patching Machine
High Light:

10000s/h window patching machine

,

150mm automatic window patching machine

,

150mm paper film stick machine

JIGUO TC-760AC High Speed Carton Box Window Patching Machine with CE certificate



JIGUO Window Patching Machine is widely used in the patching to packing paper articles with window or without window, such as, phone box, wine box, napkin box, clothes box, milk box, card etc.

  • It can be used to paste paper onto partial surface of cardboard(paste reinforced paper).
  • It can be used to patch films to double or three-side window, and film-creasing, film-punching, film-cutting gaps, especially to PVC,PET films, the max thickness of film is 0.5mm, which highly increases the using scope of window patching machines.
  • It can make holes on the surface of reinforced paper, which are corresponding to the handler holes after being pasted with small precision errors.

Technical parameters:

Model JIGUO TC-760AC
Speed 4000-10000pcs/hour
Max. Paper Size 760*600mm
Min. Paper Size 150*150mm
Max. Film Size 460*380mm
Min.  Film Size 30*40mm
Cardboard thickness 200-600gsm
Film thickness 0.03-0.3mm
Main power 11kw
Weight 2680kg
Dimension

4800*2100*1520mm



ADVANTAGE:


1.The paper feeder is controlled by PLC with a human-computer interface. The length of paper to be fed can be entered on the touch screen, so that paper can be input quickly and accurately.Also,it applies to card paper and corrugated paper.

2.Film Feeding Part is controlled by the Imported Servo System, input the needed Film’s Length on the Touch Screen, Saving the adjust time and highly precision.

3.The Gluing Part install a small Motor, can rotate by itself. It also can be be easily drawn out for setting up and cleaning.

4.The Film Cutting Part & the Film Patching Part install free axial rotation,is used for various shape & position of paper window, Saving the adjust time , Greatly improve the production efficiency.

5.Based on the original mechanism, the layout of each section of this product has been improved in order to reduce the adjusting time, so that it becomes more efficiency and friendly.

10000s/H Automatic Window Patching Machine Paper Film Stick Machine 0

Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

10000s/H Automatic Window Patching Machine Paper Film Stick Machine 1

Company Information

*With 20 years' Experience

*Having ISO 9001-Certified Factory

*Strong R&D capability

*High Quality Guaranteed

*First Class Service And Best Prices

10000s/H Automatic Window Patching Machine Paper Film Stick Machine 2

10000s/H Automatic Window Patching Machine Paper Film Stick Machine 3
