5 Ply Flute Laminator Machine

5 Ply Flute Laminator Machine
5 Ply Flute Laminator Machine 5 Ply Flute Laminator Machine 5 Ply Flute Laminator Machine

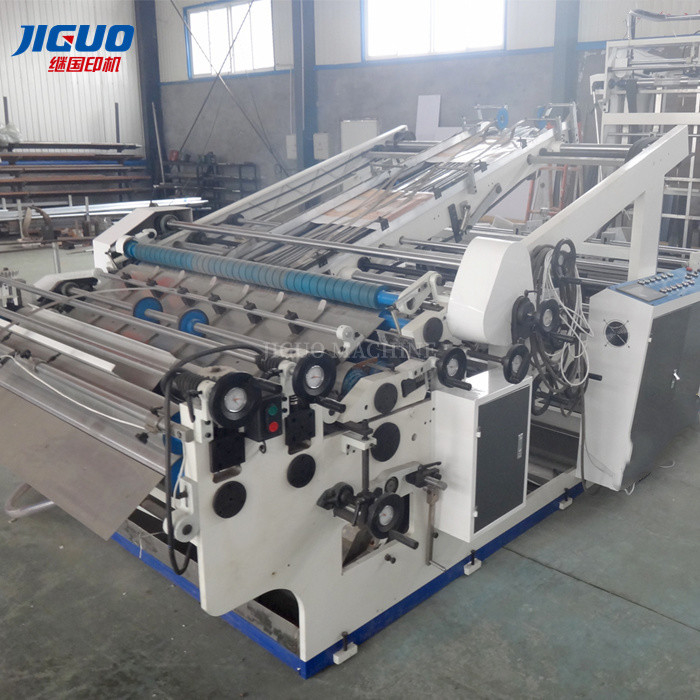

Large Image :  5 Ply Flute Laminator Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: FMZ-1700
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

5 Ply Flute Laminator Machine

Description
Max. Size Of Cover Face: 1650*1650mm Min. Size Of Cover Face: 400*400mm
Top Paper Thickness: 180-600 G/m2 Bottom Sheet Thickness: 2/3/4/5/7 Ply A/B/C/E/F Flute, Thickness ≤ 8mm
Core Components: PLC, Gearbox, Motor, Gear, Pump Automatic Grade: Automatic
Usage: Paper Board Laminating Advantage: Easy Control
Warranty Of Core Components: 1 Year Condition: New
Max. Machine Speed: 7500pcs/h 164m/min Power: 16kw
High Light:

400mm Flute Laminator Machine

,

7 ply Flute Laminator Machine

,

7500pcs/h corrugated cardboard laminating machine

JIGUO FMZ-1700 Full  Automatic Flute Laminating Machine Corrugated Cardbpard Laminating Machine



Major feature:



1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.



2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.



3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.



4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.



5.  Automatic gluing, and the glue can be used circulatory, avoid glue waste.



6. Roller design scientifically, avoid glue fly out when the speed is high.



7. Pressure rollers adopt one side adjustment, convenient and fast.



8. Rocker controls wash roller's fluctuation, easy cleaning.



9. Counter designs scientifically, easy recording the amount you have been worked.



5 Ply Flute Laminator Machine 0



Specifications

PARAMETER
Model FMZ-1700
Max. size of cover face
1650*1650mm
Min. size of cover face 400*400mm
Top paper thickness
180-600 g/m2
Bottom sheet thickness

2/3/4/5/7 ply A/B/C/E/F Flute,
Thickness ≤ 8mm

Max. Machine speed 7500pcs/h 164m/min
Precision ±1mm
Power
16kw
Size
15620*2610*2680mm
Weight 6.2 Tons



5 Ply Flute Laminator Machine 1



5 Ply Flute Laminator Machine 2



5 Ply Flute Laminator Machine 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
