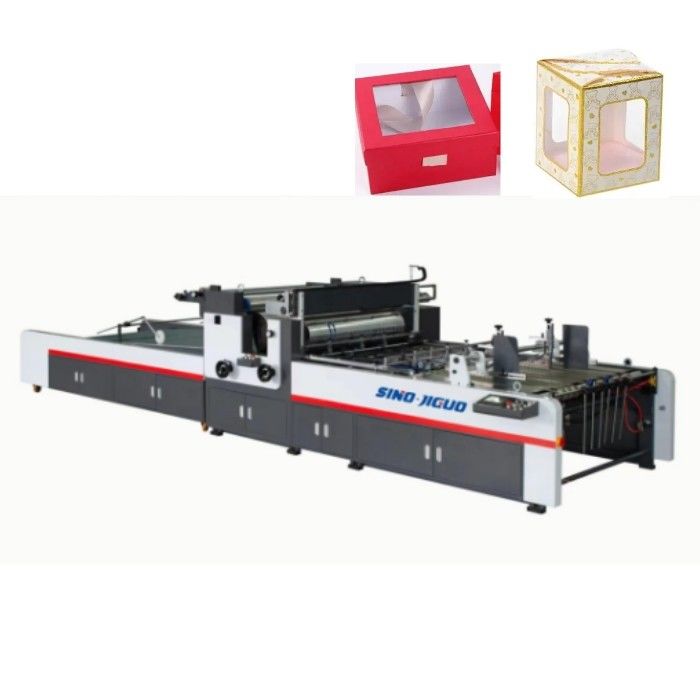

Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer

Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer
Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer

Large Image :  Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-1500ABC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-500000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer

Description
Max. Paper Size: 1500×1050mm Min. Paper Size: 100×100mm
Max. Film Size: 750×750mm Min. Film Size: 40×40mm
Film Sheet Thickness: 0.03-0.4mm Condition: New
Max. Working Speed: 7000s/h Cardboard: 200-1200g/m²
Warranty: 1 Year Total Weight: 3000kg
Corrugated Paper: ≤ 5mm Total Power: 11Kw
High Light:

Carton box Window Patching Machine

,

E-Flute Box Window Patching Machine

,

100×100mm automatic folder gluer

JIGUO TC-1500ABC Automatic Shaped Window Patching Machine For Carton And E-Flute Box



The machine adopts servo motor to control the paper feeding and film feeding separately, and the stepper motor to drive the back belt independently. It can adjust the distance between paper folding and count in batches.The paper conveying belt of the machine adopts vacuum absorbed. It has automatic lifting function in coating section when short of paper. It can mark and cut the printed film. It can also be extra equipped with tissue box cutter device. The machine runs steadily at high speed and is easy to adjust. It can adjust the film length and left& right film position without stopping. The machine is controlled by PLC computer with high precision, maintenance-free and abnormal operation protection features.

Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer 0



Specifications

PARAMETER
Model TC-1500ABC
Max. Paper Size
1500×1050mm
Min. Paper Size 100×100mm
Max. film Size
750×750mm
Min. film Size
40×40mm
Film Sheet Thickness
0.03-0.4mm
Max. Working Speed
7000s/h( Corner Cutting 4000s/h)
Cardboard
200-1200/m²
Corrugated Paper
≤ 5mm
Total Power
11Kw
Total Weight
3700kg
Overall Dimensions
5800×2300×1600mm
Overall Dimensions(When
the roller is pulled out)
5800×3500×1600mm



Local display



1) The paper feeder parts is controlled by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life, process the paper products to the conveying parts steady and orderly.



2) The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape.



3) The gluing parts adopt the adjustable parts gluing structure, it is convenient for adjustable according to the paper requirement and the gluing position, save the gluing quantity, it is easy for pulling out the gluing parts, convenient for washing. The gluing roller stopped the gluing when stopped the machine.



4) The cutting parts includes two blades. The upper roller is the cutting film roller with the two blade, finishing the cutting of the film. If customer need angular cutting and scoring option, we will add unit for this function. But the max speed is 5000-6000 pcs/hour.



Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer 1



Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer 2



Carton Box Window Patching Machine E-Flute 100×100mm Automatic Folder Gluer 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
