JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine

JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine
JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine

Large Image :  JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TC-800AC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-500000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine

Description
Max. Paper Size: 760×650mm Min. Paper Size: 100×100mm
Max. Film Size: 460×460mm Min. Film Size: 40×30mm
Film Sheet Thickness: 0.03-0.4mm Condition: New
Total Power: 9Kw Total Weight: 2800kg
Warranty: 1 Year Overall Dimensions: 4800×1405×1520mm
High Light:

JIGUO Automatic Window Patching Machine

,

Carton Window Patching Machine

,

E-Flute automatic folder gluer machine

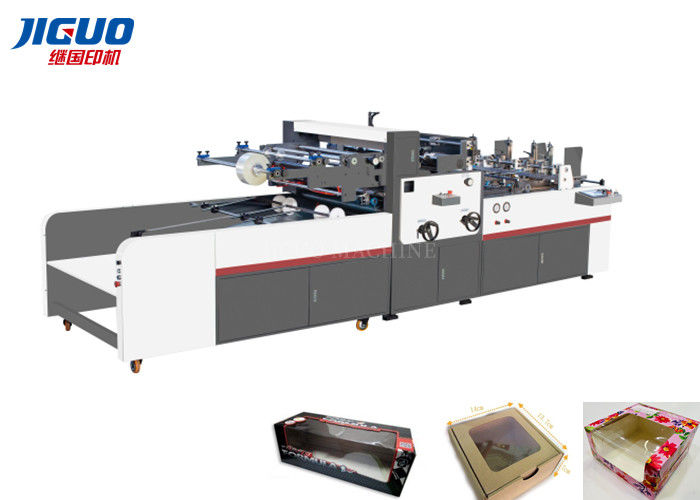

JIGUO TC-800AC Automatic Window Patching Machine For Carton And E-Flute Box



TC-800AC Window Patching Machine is widely used in the film patching to be package with or without the window of the wine box .gift box. napkin box. cosmetic box etc. It can also realize the function of the paper gluing ,film patching ,film cutting and paper collection before folding boxes. The machine has passed the ISO9001 Quality System Certificate and conform the European CE safety standard.



Window Pasting Machine is applied for the pasting windows of all kinds of paper boxes, such as wine box, present box, toilet box, cosmetic box, children’s toy box and milk boxes. The machine is with all features, like auto-feeding paper, accurate positioning, auto-gluing, auto-cut the length of the film and the pressure transmission and input, With its powerful features and excellent stability. The machine is convenient to be adjusted, With the high efficiency, the machine is the ideal equipment for window filming for all kinds of paper boxes.



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 0



Specifications

PARAMETER
Model TC-800AC
Max. Paper Size
760×650mm
Min. Paper Size 100×100mm
Max. film Size
460×460mm
Min. film Size
40×30mm
Film Sheet Thickness
0.03-0.4mm
Max. Working Speed
12000s/h( Corner Cutting 4500s/h)
Cardboard
200-1200/m²
Corrugated Paper
≤ 5mm
Total Power
9Kw
Total Weight
2800kg
Overall Dimensions
4800×1405×1520mm
Overall Dimensions(When
the roller is pulled out)
4800×2100×1520mm



Local display



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 1

1. Man-machine interface

This machine uses a 7-inch touch screen display and a host computer (PLC) to digitally adjust the film length and count.



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 2 2. Feeding
The paper feeder parts is controller by the servo motor, the paper pile make the intermittent movement in the process of the paper feeding, the belts operate long life ,process the paper products to the conveying parts steady and orderly. Perfect for the cardboard and corrugated



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 3 3. Conveying Parts
Double paper servo control
The paper conveying parts installed the four conveying chains with the four pushing blocks, it can be adjusted according to the paper shape. It is equipped with the 4 photo sensor, detect the paper reaching condition, counting , paper jammed detection.



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 4 4. Gluing Parts
The gluing parts adopt the adjustable parts gluing structure , it is convenient for adjustable according to the paper requirement and the gluing position ,save the gluing quantity, it is easy for pulling out the gluing parts,convenient for washing. The gluing roller stopped the gluing when stopped the machine. And the conveying parts dropped automatically, the gluing is not easy to print on the conveyor belts.



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 5 5. Double gluing system
The upper roller is the cutting film roller with the two blade ,one the upper blade, the other is the lower blade, finishing the cutting of the film The below roller is the suction roller, the film is patched on the suction roller Servo film adjustment



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 6 6. Paper Delivery parts
The patching products conveying to the paper delivery plate, finish the paper accumulation and collection Paper delivery parts can
be adjust single.



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 7JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 8



JIGUO Window Patching Machine Carton E-Flute Automatic Folder Gluer Machine 9



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
