Product Details:
|
Suitable Sheet: | 50-500g/m2 | Max.DMax. 1650mmiameter Of Paper: | Max. 1650mm(65 〃 ) |
---|---|---|---|
Max.Width Of Paper: | Max. 1400mm(55 〃 ) | Total Power: | 30KW |
Max. Cutting Speed: | 300cuts/min | Max. Cutting Meter Speed: | 300m/min |
Atmospheric Pressure: | 0.8MPa | Power Supply: | AC380V/220Vx50HZ |
Computerized: | Yes | Core Components: | Motor, PLC |
Highlight: | 50g/m2 roll to sheet cutter machine,1400mm roll to sheet cutter machine,30KW roll sheet cutting machine |

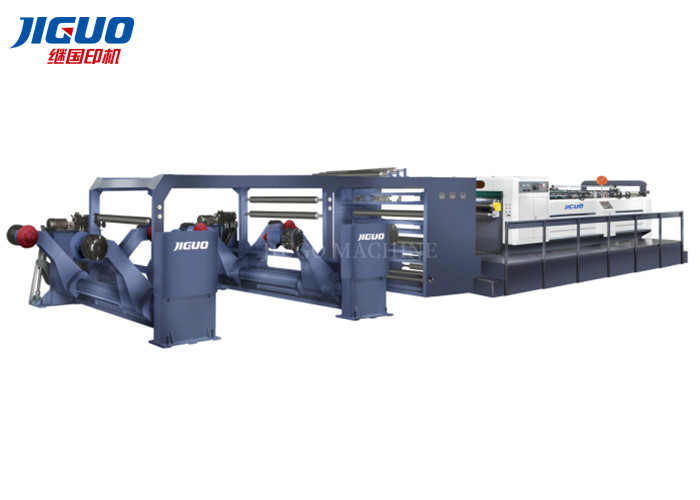

JIGUO ZWC-1400-4 (Four Roll) High Precision Roll Paper Sheet Cutting Machine
Roll To Sheet Sheeting Machine
Features
a. Servo motor driving system for constant length control ;
b. Rotary blade cutting style;
d. Person-machine interface operation (touch screen);
c. Center computer control(PLC) for main electric control;
f. International advanced technology paper corner adjustment to ensure high accuracy angle;
e. Long service life cutting blade material imported from German;
h. Step-less adjustment for paper feeding and to ensure single sheet feeding and overlapping feeding paper smoothly;
g. Reasonable structure paper flatten for reversing bend so as to ensure the flat degree of paper;
i. Automatic patting for paper collecting system, and automatic counting and inserting label to ensure the heaping in order.
Specifications
PARAMETER | |
Model | ZWC-1400-4(Four Roll) |
Suitable sheet | 50-500g/m2 |
Max.Diameter of paper | Max. 1650mm(65 〃 ) |
Max.Width of paper | Max. 1400mm(55 〃 ) |
Total power |
30KW
|
Cutting length
|
400-1600mm |
Cutting accuracy | +/-0.4mm |
Max. cutting speed |
300cuts/min
|
Max. cutting meter speed | 300m/min |
Atmospheric pressure | 0.8MPa |
Power supply
|
AC380V/220Vx50HZ |
Total weight
|
15000kg |
Machine Dimensions | 17000×3900×2350mm |
Details Images
Hydraulic shaftless double station unwinder
![]() |
![]() |
Paper conveying | Anti paper bending system (flatting system) |
Sheeting system and paper conveying system
Stacking system
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
