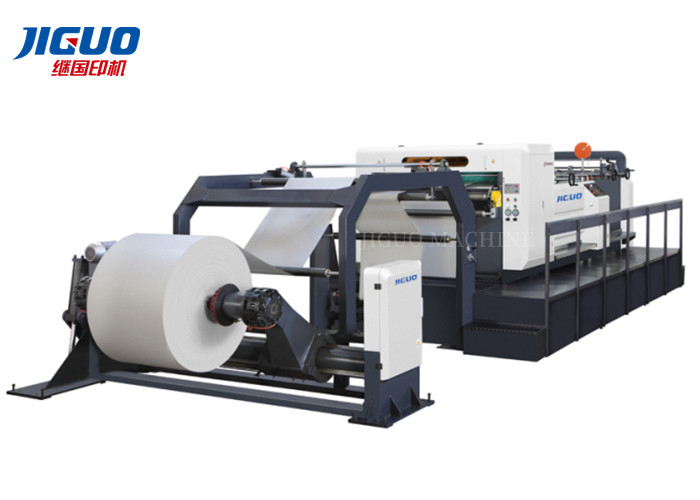

1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine

1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine
1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine 1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine 1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine

Large Image :  1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ZWC-1700-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-200000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine

Description
Suitable Sheet: 50-500g/m2 Max.Diameter Of Paper: Max. 1650mm
Max.Width Of Paper: Max. 1700mm(55 〃 ) Total Power: 25KW
Max. Cutting Speed: 300cuts/min Max. Cutting Meter Speed: 300m/min
Power Supply: AC380V/220Vx50HZ Condition: New
Computerized: Yes Warranty: 1 Year
High Light:

1650mm automatic roll to sheet cutter

,

300m/min automatic roll to sheet cutter

,

500g/m2 paper sheet cutter machine

JIGUO ZWC-1700-1 (One Roll) Roll Paper Sheet Cutter Machine Paper Roll To Sheet Cutter



Roll Sheet Cutting Machine / Paper cutting machine


1. High-precision single knife cutting machine



2. Prismatic adjustment system for paper



3.Equipment of Electrostatic elimination



4. Middle slitting and waste collection system



5. Automatic counting and label inserting equipment



6.Reel paper transporting equipment (t (including rail car 1pair)



7. Automatic paper trimming and collecting machine



8. Electrical controlling system



9. Driving motor system



10. Accessory by machine



11. Double arm oil pressure shaftless paper rack



12. Automatic directing and paper tension controller



13. Epuipment of automatic vacuum



14. Operation system:LCD panel by operator



15. Main drive system:servo motor





Specifications

PARAMETER
Model ZWC-1700-1(One Roll)
Suitable sheet 50-500g/m2
Max.Diameter of paper Max. 1650mm(65 〃 )
Max.Width of paper Max. 1700mm(55 〃 )
Total power
25KW
Cutting length
400-1600mm
Cutting accuracy +/-0.4mm
Max. cutting speed
300cuts/min
Max. cutting meter speed 300m/min
Atmospheric pressure 0.8MPa
Power supply
AC380V/220Vx50HZ
Total weight
10000kg
Machine Dimensions 9000×4200×2350mm



1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine 0



1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine 1



1650mm Automatic Paper Roll To Sheet Cutting Machine Paper Cutting Machine 2



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
