Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: AF-3300B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD10000-80000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Joint Corrugated Box Gluing Machine Carton Folding And Gluing Machine

Description
Max.paper Size: 1650*1060mm (1650*1650mm) Min.paper Size: 480*350mm
Sheet Thickness: A-E Corrugated Board, 5 Layer Automatic Grade: Semi-automatic
Certification: CE Certificate,CE ISO9001 Total Weight: 3500KG
Box Type:: Cardbaord Box Product Keywords:: Carton Box Folding Glue Machine
High Light:

Joint corrugated box gluing machine

,

1650mm corrugated box gluing machine

,

1650mm carton folding and gluing machine

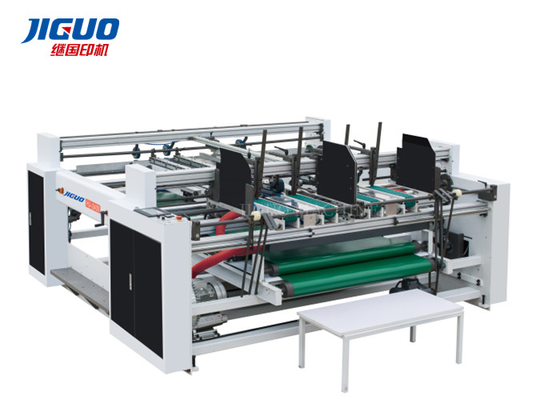

JIGUO AF-3300B Folder Gluer For Two-Pieces Joint Corrugated Box/Folder Gluer Machine



The folder gluer machine is suitable for folding and gluing cartons,both cardboard and corrugated cardboard are ok.



Features



1.Semi-automatic press folder gluer machine is developed to give companies the flexibility to produce short runs of any shape boxes, quickly and easily.


2.The machine is set-up and ready to start making boxes in seconds.


3.The machine just need small place, easy to operate, only minimal training required, no need for skilled labour. Change from one design box to nest in seconds, ideal for small batch production and variety of replacement.


4.Save glue, just need 1/3 glue than manual gluing.



Joint Corrugated Box Gluing Machine Carton Folding And Gluing Machine 0

Specifications

PARAMETER
Model AF-3300B
Max.paper size 1650*1060mm (1650*1650mm)
Min.paper size 480*350mm
Max. working speed 3000s/h
Power 11KW
Sheet thickness A-E Corrugated board, 5 layer
Total Weight 3500KG
Machine Dimension 4500*5400*1460mm



Feeding section


1. Friction feeder, equipped with two separate motor independent drive, side panel width can be fine-tuned, with 3 adjustable Feeding knife and 3 small Feeding knife, there are 8 rubber tape which contains 4 suction belt, two separate control, retractable rear support can be eused.


2. Glue part: to match the glue itself, the use of three groups of plastic system to ensure that the finished product qualified rate of 100%, double-slot flow of plastic road, to ensure the loss of glue invalid, improve costs, easy to disassemble, easy to clean double pieces carton gluing machine.


3. Conveying part: Using of whole process close to the synchronization technology to ensure that the paper in the fast transport
process does not run away.



4. Paper part: the use of photoelectric automatic sensor system, high sensitivity, to ensure that the machine speed block.


5. Pressed part: the use of three groups of cylinders and photoelectricautomatic sensor system to ensure consistency and smooth.


6. Operating system: the human touch screen for the operation center and PLC connection will be warning, detection of fault, abnormal conditions and operating speed and other information displayed on the screen, at a glance, and can detect maintenance, work records, online real-time view of timely processing, truly reflect the efficiency.


7. Electrical system: the use of well-known brands at home and abroad, in accordance with the European CE standard design, careful manufacturing, to ensure that the whole stable, high efficiency, low failure.





Joint Corrugated Box Gluing Machine Carton Folding And Gluing Machine 1



Joint Corrugated Box Gluing Machine Carton Folding And Gluing Machine 2



Joint Corrugated Box Gluing Machine Carton Folding And Gluing Machine 3



Joint Corrugated Box Gluing Machine Carton Folding And Gluing Machine 4



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
