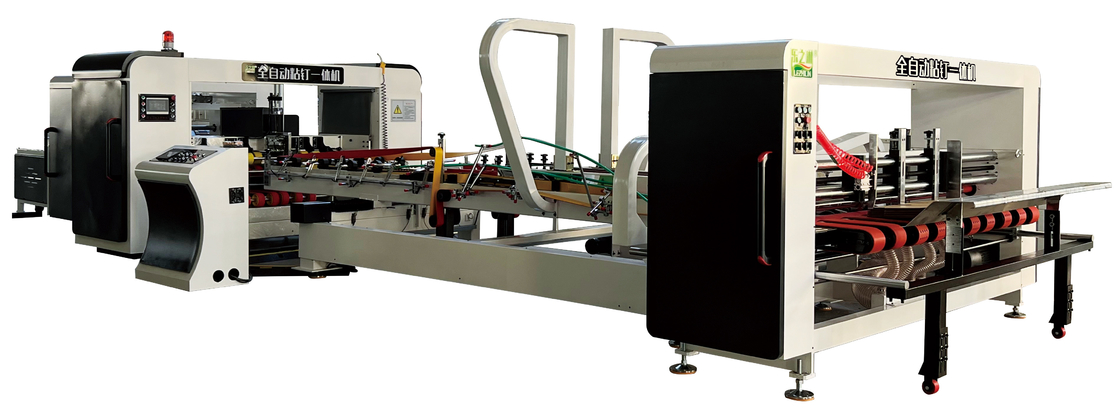

Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine

Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine
Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine

Large Image :  Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: AFSH-2600
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD50000-70000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine

Description
Max Length (A+B)*2: 2600 Mm Min Length(A+B)*2: 760mm
Max Width(C+D+C): 1200mm Min Width(C+D+C): 300mm
Push The Stack Height: 400mm Automatic Grade: Automatic
Driven Type: Electric Packaging Type: Cartons
Certification: CE Certificate,CE ISO9001 Warranty: 1 Year
Name: Corrugated Carton Folder Gluer Machine,auto Box Folder Gluer Machine/box Folding Gluing Machine,Cheap Carton Box Fully Automatic Paperboard Folder Gluer Machine Box Forming: Either Side Folds; Both Sides Fold; Bottom Fold,4/6 Corner Box,Folder Gluer
High Light:

length 2600mm Folder Gluer Machine

,

carton Folder Gluer Machine

,

JIGUO corrugated cardboard making machine

JIGUO AFSH-2600 Automatic corrugated carton folder gluer machine



Features:

  • Automatic corrugated carton flexo folder gluer machine is a special purpose equipment with carton gluer, it can be gluer corrugated cardboard with 3 ply and 5ply.
  • PLC control system with frequency conversion motor controlling the speed, guarantee easy operation and stable running, and changing the parameter and running speed without stopping the machine.
  • The average speed reachs to 150pcs/min while the max speed reach up to 220pcs/min.
  • It's widely used in different size of carton box pasting, it's quick and convenient to adjust the machine for the corresponding size of carton box.
  • The machine is consist of the following 3 parts:
    • Vacuum paper feeding unit
    • Gluing and folding unit
    • Counting and stacking unit.

Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine 0

Vacuum paper feeding unit

  • The vacuum suction feeding system is good at adapting the curved paperboard
  • The air suction motor and main driven motor are all made of Taiwan with high quality and high stability.
  • The paperboard width adjustment unit is made of high quality steel, so as to adjusting the machine width conveniently in order to adapt to the different size of carton box.
  • Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.

Gluing and folding unit

  • The glue quantity is controlled by imported high quality and stability motor, which is low noise
  • The gluing roll is made of stainless steel, which is easy for cleaning, the gluing is even and saves its volume.
  • The transmission belt of folding unit is made of imported wear proof rubber belt, guarantee a long life time and makes the cardboard folding precisely.
  • The folding unit equipped with re-creasing and orthotic devices, the height of creasing wheel is adjustable in order to adapt different thickness of cardboard.
  • The re-creasing device is able to re-crease the cardboard to reach a good creasing if the first creasing is not good.

Counting and stacking unit

  • The counting and stacking are numericial controlled which is simple and reliable.
  • Non-stop input parameter data and change order is available.
  • Counting automatically and pneumatic output precisely and quickly.
  • Equipped with correction function.

Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine 1

Specifications:



Max length (A+B)*2 2600 mm
Min length(A+B)*2 760mm
Max width(C+D+C) 1200mm
Min width(C+D+C) 300mm
Push the stack height 400mm
Cases of long A: Max.800(mm), Min.280(mm)
Cases of wide B: Max.500(mm), Min.100(mm)
Cases of high D: Max.600(mm), Min.120(mm)
Cases of cover C: Max.300(mm), Min. 60(mm)



Length 2600mm Folder Gluer Machine Carton Corrugated Cardboard Making Machine 2

FAQ:



Q1: Are you a manufacturer or a trading company?

A: We have our own factory in Tangshan, Hebei Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 20-30 days.

Q4. What is the delivery time?

A: 35-50days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.

Q9. How can you assure the machines' quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What's the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: JIGUO factory is more than 20years.
