Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

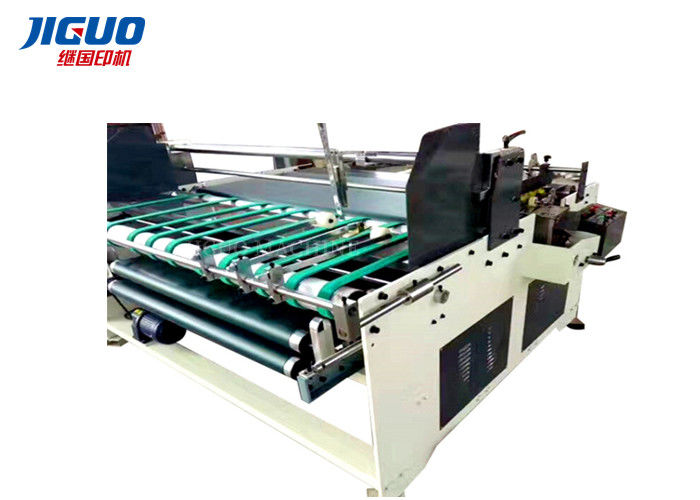

Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine

Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine
Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine

Large Image :  Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Model Number: AF-2600B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-8000/set
Packaging Details: wooden case
Delivery Time: 50days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine

Description
Certification: CE Certificate,CE ISO9001 Max.paper Size: 1300*1060mm
Min.paper Size: 470*260mm Sheet Thickness: A-E Corrugated Board, 5 Layer
Automatic Grade: Semi-automatic Power: 11 KW
Total Weight: 2500KG Box Type:: Cardbaord Box
Product Name:: Folder Gluer Machine Product Keywords:: Carton Box Folding Glue Machine
High Light:

Double Station Folder Gluer Machine

,

1060mm Folder Gluer Machine

,

Semi-automatic corrugated box gluing machine

AF-2600B Double Station Corrugated Cardboard Glue Couple Machine, Folder Gluer Machine



Double PC gluer machine can be used AA PC ,AB pc,two PC carton and single PC carton to glue, this machine can instead of the manual gluing, reduce the work ,compare with the traditional semi-auto gluer machine ,can save labor.



main technology



This machine adopt frequency convertor to adjust speed,PLC control,model convert,match with high speed clutch, run and control exactly.



This machine with separate paper-feeder system,with hard wind absorption feeding pare,can double PC and single PC to feed paper.



When this machine work two PC carton, two PC paper can glue in moving, and 4 face positon well and exact.While two PC to one PC,worker can manual fold in folding part,meanwhile can manual errect to the crossing part of creasing line and corrugated line ,so as to finish the final shaping.



Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine 0



Specifications

PARAMETER
Model AF-2600B
Max.paper size
1300*1060mm
Min.paper size 470*260mm
Max. working speed 3000s/h
Power 11KW
Sheet thickness A-E Corrugated board, 5 layer
Total Weight 2500KG
Machine Dimension
3000*3550*1460mm



Feeding Unit


Set two cardboard stacking, used to stacked AB two pieces of cardboard, below the air sucking structure, is conducive to improve transport efficiency and accuracy; adjust the gear structure adjustment, labor-saving and convenient.



machine can be operated by two people, one person in charge of the paper feeding and make packaging of sticked carton boxes, the other people is responsible for the cardboard folded into a press belt, the operation is simple.



Transferring Unit



The hot melt adhesive bonding, cardboard four gauge positioning, accurate positioning, high precision; adjusted by electric, the adjustment is convenient and fast.



Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine 1



Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine 2







Double Station Folder Gluer Machine Semi-Automatic Corrugated Box Gluing Machine 3



FAQ



Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.



Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.



Q3. What is the production time while placing order?
A: Normally about 20-30 days.



Q4. What is the delivery time?
A: 35-50days after deposit.



Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.



Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.



Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.



Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.



Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.



Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material



Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.



Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.



Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
