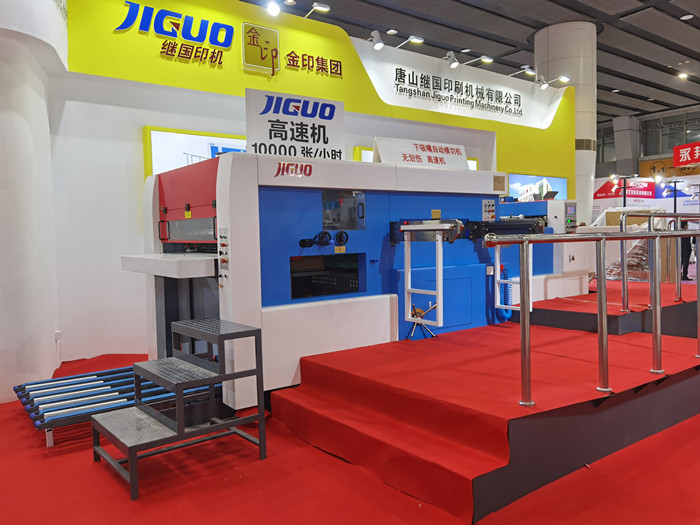

Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper

Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper
Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper

Large Image :  Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1320X/1500X/1680X
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100,000 to $200,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper

Description
Weight: 18T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Dimension(l*w*h): 7500*4600*2260mm
Type: Die-cutting Machine,Paper Cutting Machine Computerized: Yes
Power(w): 20KW Name: Die Cutting Machine
High Light:

500mm Die Cutting Stripping Machine

,

465mm Die Cutting Stripping Machine

,

20KW carton waste stripping machine

MYP-1320X/1500X/1680X Bottom Suction Nozzle Lead Edge Feeding Automatic Die Cutting & Stripping Machine

Main Features


1. Equipped with pneumatic clutch and pneumatic locking plate.
2. Lead edge feeding paper. The high-speed and high precision paper feeding device can transmit all kinds of corrugated paper whenever how the quality of paper is. Equipped with light-adjusted device and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper aligning.
4. Automatic gripper type equipped the tooth row, open bite adjustable, under the help of paper, cardboard can run smoothly. Automatic suction suck about using leading edge of paper, tooth row gripper-style, curved cardboard and tissue paper can also be passed no scratches.
5. Pneumatic take samples when machine working, can check the die cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear according to time, extended the working life of machine
8. Using alarm bells agencies in warning tone when the device is turned to raise safety warning.
9. Equipped with a precision of detection (Taiwan Riko) fiber optic switch, the paper is in place to detect and avoid paper waste.



Products Description​

PARAMETER
Model MYP-1320X MYP-1500X MYP-1680X
Max. sheet size 1320X960(mm) 1500X1105(mm) 1680X1235(mm)
Min. sheet size 450X465(mm) 500X465(mm) 580X500(mm)
Max. die cutting size 1300X940(mm) 1480X1090(mm) 1660X1220(mm)
Max.cutting speed 6000s/h 5500s/h 5000s/h
Die cutting precision ±0.15mm ±0.18mm ±0.2mm
Sheet thickness

200-2000g/㎡(Cardboard)

≤10mm(corrugated board)

250-2500g/㎡(Cardboard)

≤10mm(corrugated board)

250-2500g/㎡(Cardboard)

≤10mm(corrugated board)

Max.pressure 380T 400T 480T
Total power 25kw 25kw 26kw
Net weight 20T 22T 24T
Overall dimension 6750X4600X2260mm 7600X5100X2260mm 8000X5450X2500mm
Air requirements 0.8Mpa,>0.36m³/min 0.8Mpa,>0.36m³/min 0.8Mpa,>0.36m³/min



Advantage

1. Pre-loading device,micro-adjustment function for the platform ,can save the time and improve the efficiency.

2. Non-axial feeder , it uses the servo motor drive, then you can adjust the paper size easily, quickly and flexibly, because without the shaft drive, it can avoid the phenomenon of instability caused by the wear of the power shaft after one year.Feeder has four-suction, four-send and the high / low and tilt of the sucker can do fine-tune. So it can meet the thickness of 157-2000g/m2 of different paper and B corrugated paper.

3. The paper transfer bridge adopts independent servo motor drive system,it can do the continuous feeding and sheet feeding, the variable-speed transfer bridge, it can slow down the speed of the paper before it reaches to the front head, then it can avoid the impact deformation between the thin paper or corrugated head and front guide,and ensure the accuracy of the die-cutting. When do the sheet feeding, it can make the corrugated paper feed without overlapping and flatten, improve the quality of products.the unique design can meet the request of different customer, and the two functions one-click conversion, easy to operate.

4. The front guide and side guide make the location,and the push guide is used alternately to satisfy the different thickness paper.

5. Electric front guide can be integrated and split automatic and flexible fine-tuning, it can save time, effort and improve the efficiency and precision of work greatly.

6. The chain of the gripper is the original German IWIS , high precision, not stretching, and long life. The main bearings are imported NSK and SKF, high accuracy, long life. The gripper is with anode oxidation treatment. It is rigid and small inertia, can meet the high-speed and accurate transfer of paper, and long life.

7. The wallboard and die cutting station,the core part of the die-cutting machine,which is made of ductile iron casting and composed of high-precision machining parts, is of high precision and high pressure,it can satisfy the die cutting of dense mesh pattern, and the pressure can reach more than 300T.

8. Taiwan intermittent gearbox ,has high accuracy, no noise and long life. the main transmission using Japan imported synchronous belt drive, it is fast, low-noise and smooth transmission, This model is a for-enhanced, high-speed machine.

9. Advanced pressure automatic adjustment system. it adopts the automatic pressure control system and can reach the fast fine-tuning ,high configuration and stable performance.

10. Advanced non-stop rolling shutter-type delivery, which is of high speed, high efficiency and stable performance.

11. Advanced automatic electrical control system, Panasonic PLC, Panasonic servo drive motor, motion controller drive system,Schneider Electric ,Taiwan AirTAC polite dynamic control components. Advanced automatic electrical control, unique and practical program design, imported electrical components , color touch screen,man-machine interface, it makes the operation much more intuitive, simple and convenient. All of them display the high end, atmosphere, function and quality of the machine.

Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper 0Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper 1Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper 2



Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper 3

Sheet 500mm Die Cutting Stripping Machine Nozzle Lead Carton Waste Paper 4



FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
